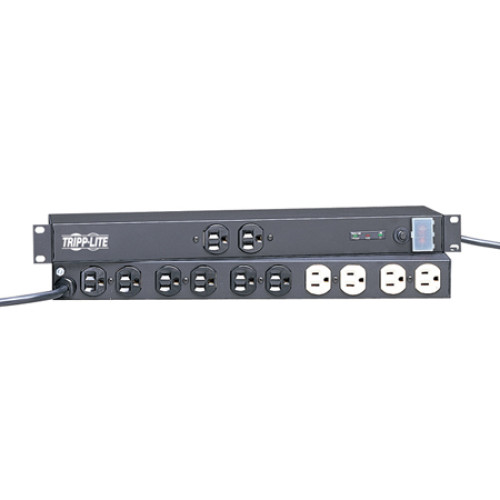

Tripp Lite's IBAR12/20ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with NEMA 5-20P input plug and 20 amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation, using only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15 amp / 10 rear mounted 20 amp), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status.
| Design | |
| Certification | UL1449/UL1283/cUL |
| LED indicators | Y |
| Product colour | Black |
| Features | |
| Cable length | 4.6 m |
| EMI/RFI noise filtering | 40 dB |
| Other features | |
| Audio/video line protection | Y |
| Dimensions (WxDxH) | 445 x 102 x 44.5 mm |
| Input connections | NEMA 5-15P |
| Weight (imperial) | 2.86 kg (6.3 lbs) |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlets quantity | 12 AC outlet(s) |
| Nominal input voltage | 120 V |
| Peak power | 2400 W |
| Surge energy rating | 1280 J |
| Weight & dimensions | |
| Package height | 57 mm |
| Package width | 521 mm |
| Weight | 2.9 kg |
Tripp Lite IBAR12/20ULTRA Isobar Surge Suppressor Black 12 AC outlet(s) 120 V 4.6 m
- Brand: Tripp-Lite
- Product Code: IBAR12/20ULTRA
- Availability: In Stock
-
$159.16
