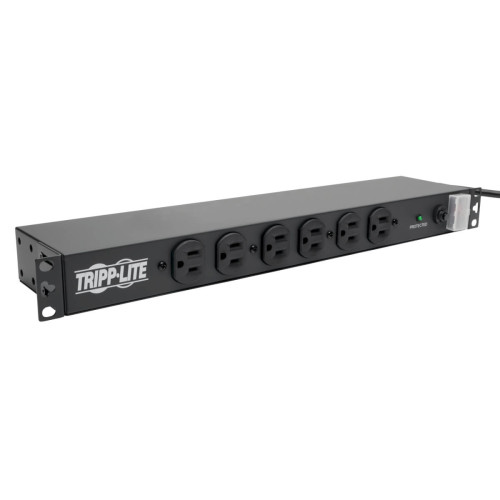

Tripp Lite's DRS-1215 offers surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Includes 14 outlets (6 front/8 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LED indicates surge protection status.
-Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options.

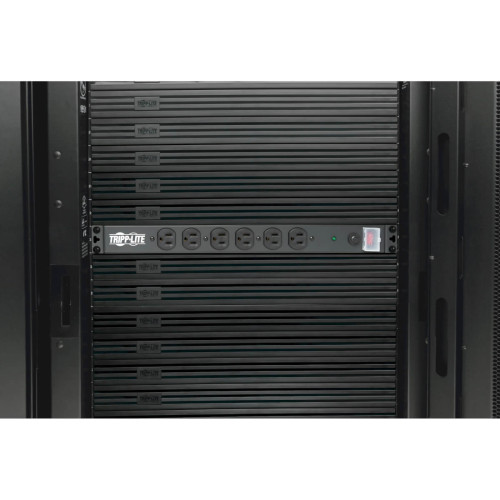

-Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks).
-1050 joules AC surge suppression with EMI/RFI filtering.

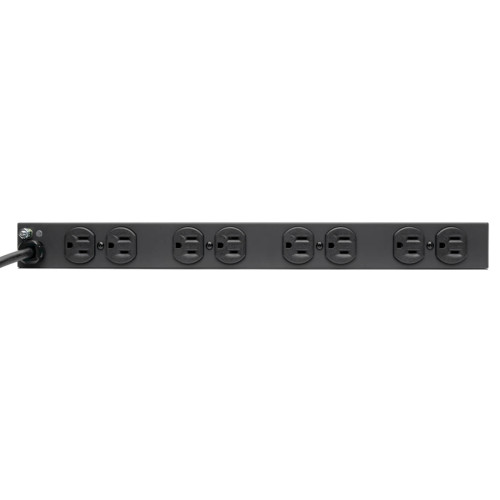

-14 NEMA 5-15R output receptacles (6 front/8 rear).

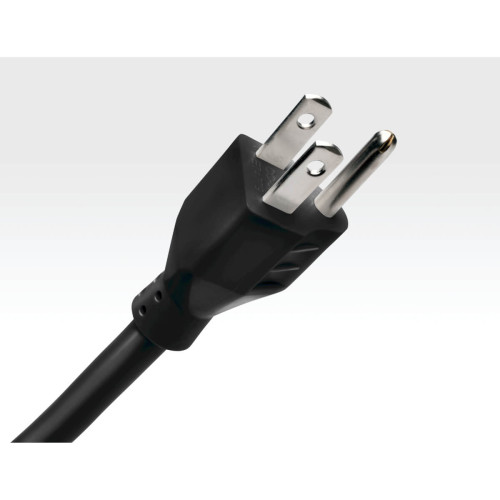

-15 foot AC cord with NEMA 5-15P straight-in plug connection.
-Diagnostic LED confirms suppressor operation.
-Lighted power switch confirms power on/off status.
-Snap-in switch guard prevents accidental turn off.
-15 amp capacity with circuit breaker.
-120V AC, 50/60Hz electrical compatibility.
-Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options.
-Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks).
-1050 joules AC surge suppression with EMI/RFI filtering.
-14 NEMA 5-15R output receptacles (6 front/8 rear).
-15 foot AC cord with NEMA 5-15P straight-in plug connection.
-Diagnostic LED confirms suppressor operation.
-Lighted power switch confirms power on/off status.
-Snap-in switch guard prevents accidental turn off.
-15 amp capacity with circuit breaker.
-120V AC, 50/60Hz electrical compatibility.
| Design | |
| Certification | UL1449/cUL |
| Country of origin | China |
| LED indicators | Y |
| Product colour | Black |
| Features | |
| Cable length | 4.6 m |
| EMI/RFI noise filtering | 80 dB |
| Logistics data | |
| Master (outer) case gross weight | 15.8 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332100242 |
| Master (outer) case height | 256.5 mm |
| Master (outer) case length | 530.9 mm |
| Master (outer) case width | 350.5 mm |
| Products per master (outer) case | 6 pc(s) |
| Other features | |
| Audio/video line protection | Y |
| Dimensions (WxDxH) | 445 x 102 x 445 mm |
| Telephone line protection | Y |
| Weight (imperial) | 2.09 kg (4.6 lbs) |
| Power | |
| AC outlets quantity | 14 AC outlet(s) |
| Nominal input voltage | 120 V |
| Surge energy rating | 1050 J |
| Weight & dimensions | |
| Depth | 101.6 mm |
| Height | 44.4 mm |
| Package depth | 518.2 mm |
| Package height | 236.2 mm |
| Package weight | 2.66 kg |
| Package width | 63.5 mm |
| Weight | 2.25 kg |
| Width | 444.5 mm |
Tripp Lite DRS-1215 Surge Suppressor Black 14 AC outlet(s) 120 V 4.6 m
- Brand: Tripp-Lite
- Product Code: DRS-1215
- Availability: In Stock
-
$99.76
