| Battery | |
| Cold start | Y |
| Typical backup time at full load | 1.5 min |
| Typical backup time at half load | 6 min |
| Cooling | |
| Built-in fan | Y |
| Design | |
| Cooling type | Active |
| Country of origin | China |
| Display type | LCD |
| Form factor | Tower |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| LED indicators | Y |
| Product colour | Black |
| Features | |
| Audible alarm modes | Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm |
| Audible alarm(s) | Y |
| Automatic Voltage Regulation (AVR) | Y |
| Cable length | 1.5 m |
| EMI/RFI noise filtering | Y |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 120 V |
| Input operation voltage (min) | 110 V |
| Noise level | 50 dB |
| Number of input phases | 1 |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 120 V |
| Output operation voltage (min) | 110 V |
| Output power | 1200 W |
| Output power capacity | 1.44 kVA |
| Power factor | 0.83 |
| Surge protection | Y |
| Surge protection features | Digital Subscriber Line (DSL), Network, Telephone |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Logistics data | |
| Master (outer) case gross weight | 15.1 kg |
| Master (outer) case height | 297.2 mm |
| Master (outer) case length | 495.3 mm |
| Master (outer) case width | 236.2 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -15 - 45 °C |
| Packaging content | |
| Cables included | Serial, USB cable |
| Manual | Y |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power plug | NEMA 5-15P |
| Serial interface | Y |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | Y |
| USB port type | USB Type-B |
| Power | |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 8 AC outlet(s) |
| Maximum current | 12 A |
| Surge energy rating | 316 J |
| Weight & dimensions | |
| Depth | 381 mm |
| Height | 190.5 mm |
| Package depth | 495.3 mm |
| Package height | 297.2 mm |
| Package weight | 15.1 kg |
| Package width | 236.2 mm |
| Weight | 14.6 kg |
| Width | 139.7 mm |

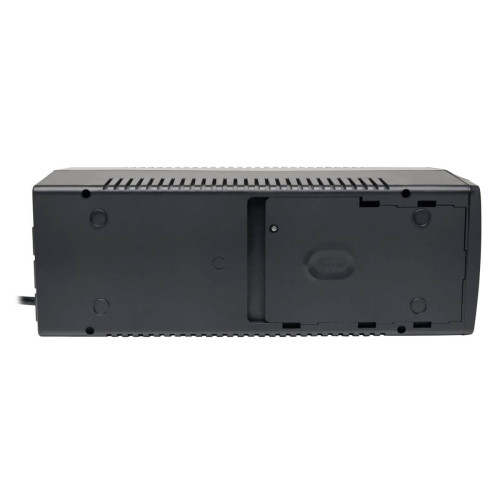

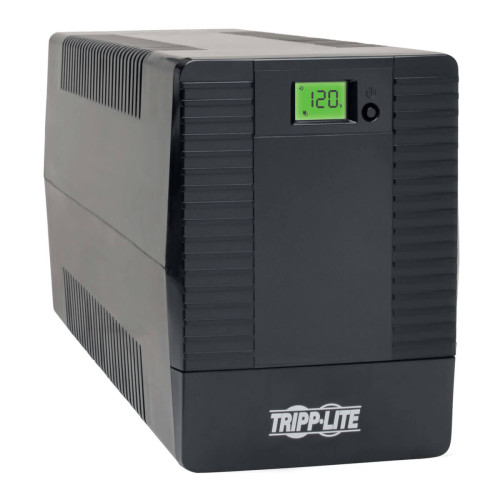

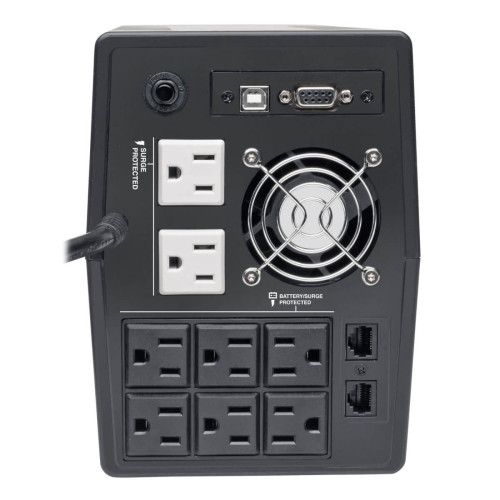

Tripp Lite SMART1500TSU uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1200 W 8 AC outlet(s)
- Brand: Tripp-Lite
- Product Code: SMART1500TSU
- Availability: In Stock
-
$336.80
