Battery
Cold start
Y
Typical backup time at full load
4 min
Typical backup time at half load
13 min
Design
Country of origin
China
Display type
LCD
Form factor
Tower
Housing material
Acrylonitrile butadiene styrene (ABS)
LED indicators
Y
Product colour
Black
Features
Audible alarm modes
Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
Audible alarm(s)
Y
Automatic Voltage Regulation (AVR)
Y
Cable length
1.5 m
EMI/RFI noise filtering
Y
Input frequency
50/60 Hz
Input operation voltage (max)
120 V
Input operation voltage (min)
110 V
Output frequency
50/60 Hz
Output operation voltage (max)
120 V
Output operation voltage (min)
110 V
Output power
600 W
Output power capacity
0.75 kVA
Power factor
0.8
UPS topology
Line-Interactive
Waveform
Sine
Logistics data
Master (outer) case gross weight
11 kg
Master (outer) case height
297.2 mm
Master (outer) case length
495.3 mm
Master (outer) case width
236.2 mm
Products per master (outer) case
1 pc(s)
Operational conditions
Operating relative humidity (H-H)
0 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-15 - 45 °C
Packaging content
Cables included
Serial, USB cable
Manual
Y
Ports & interfaces
Power plug
NEMA 5-15P
Serial interface
Y
Serial ports quantity
1
USB 2.0 ports quantity
1
USB port
Y
USB port type
USB Type-B
Power

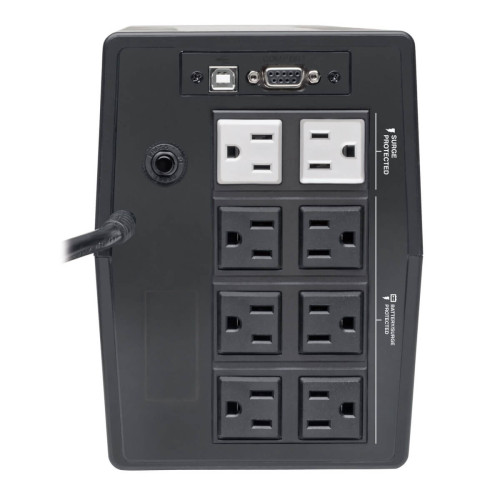

AC outlet types
NEMA 5–15R
AC outlets quantity
8 AC outlet(s)
Maximum current
10 A
Surge energy rating
316 J
Weight & dimensions
Depth
381 mm
Height
190.5 mm
Package depth
495.3 mm
Package height
297.2 mm
Package weight
11 kg
Package width
236.2 mm
Weight
10.5 kg
Width
139.7 mm

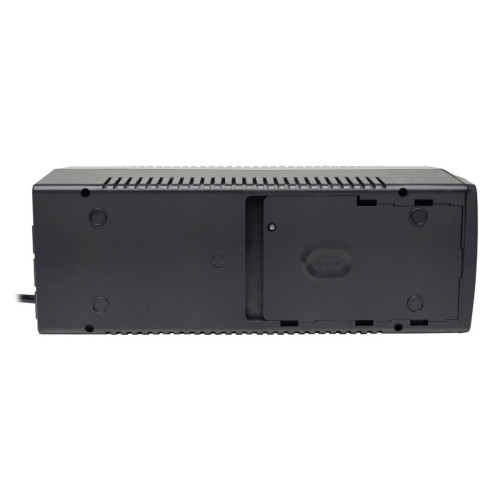

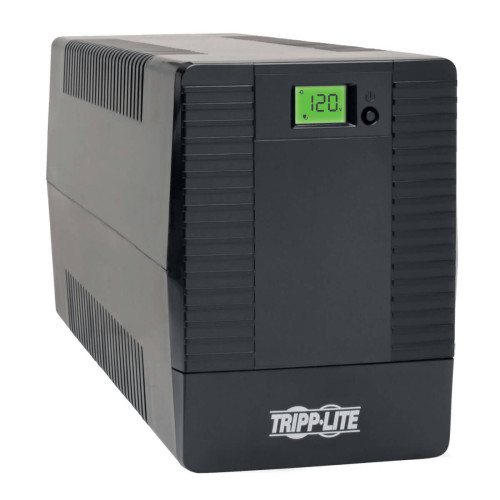

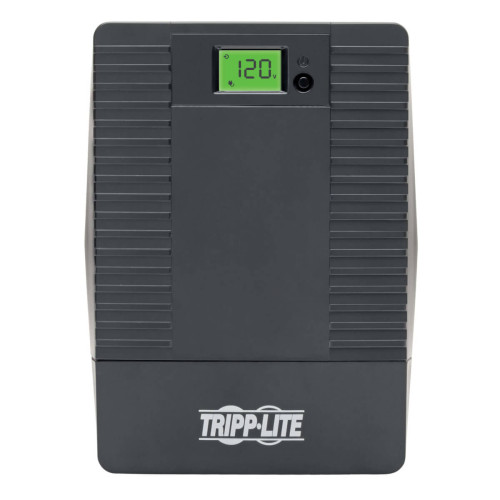

Tripp Lite SMART750TSU uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 600 W 8 AC outlet(s)
Brand: Tripp-Lite
Product Code: SMART750TSU
Availability: In Stock
Specs: Icecat
