Battery
Battery recharge time
4 h
Cold start
Y
Typical backup time at full load
7 min
Typical backup time at half load
20 min
Cooling
Built-in fan
Y
Design
Certification
UL1778:2014 (5th Ed) R10.17; CLASS A; 47 CFR FCC PART 15 SUBPART B:2017; ICES-003:2017; CAN/CSAC22.2 No. 107.3-14 (3rd Ed)+GI1; Series
Cooling type
Active
Country of origin
Taiwan
Display type
LCD
Form factor
Rackmount
Housing material
Steel
LED indicators
Y
Product colour
Black
Features
Audible alarm(s)
Y
Automatic Voltage Regulation (AVR)
Y
Efficiency
96%
EMI/RFI noise filtering
Y
Hot-swap battery
Y
Input frequency
50/60 Hz
Input operation voltage (min)
24 V
Number of input phases
1
Output frequency
60 Hz
Output operation voltage (min)
120 V
Output power
1200 W
Output power capacity
1.5 kVA
Power factor
0.7
Rack capacity
3U
UPS topology
Line-Interactive
Waveform
Sine
Logistics data
Master (outer) case gross weight
15.6 kg
Master (outer) case height
246.4 mm
Master (outer) case length
586.7 mm
Master (outer) case width
388.6 mm
Products per master (outer) case
1 pc(s)
Operational conditions
Operating relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-15 - 50 °C
Packaging content
Manual
Y
Packaging data
Rack mount kit
Y
Ports & interfaces
Power plug
NEMA 5-15P
Serial ports quantity
1
USB 2.0 ports quantity
1
Power
AC outlet types
NEMA 5–15R
AC outlets quantity
6 AC outlet(s)
Maximum current
12 A
Surge energy rating
480 J
Weight & dimensions

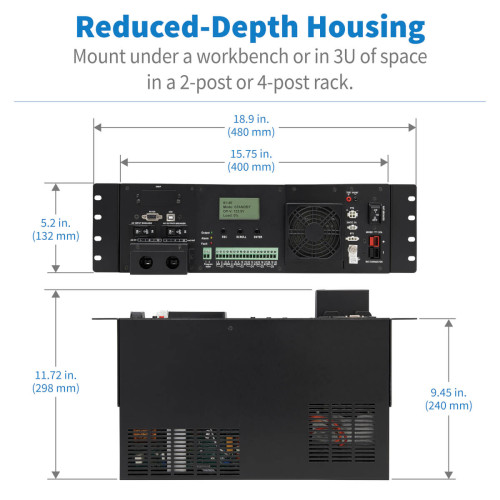

Depth
240 mm
Height
133.1 mm
Package depth
586.7 mm
Package height
246.4 mm
Package weight
15.6 kg
Package width
388.6 mm
Weight
14.7 kg
Width
400 mm

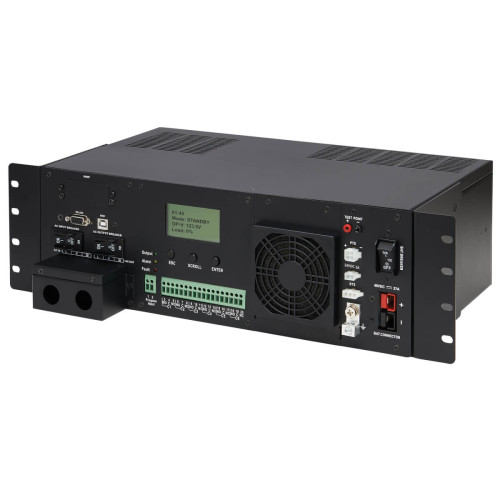

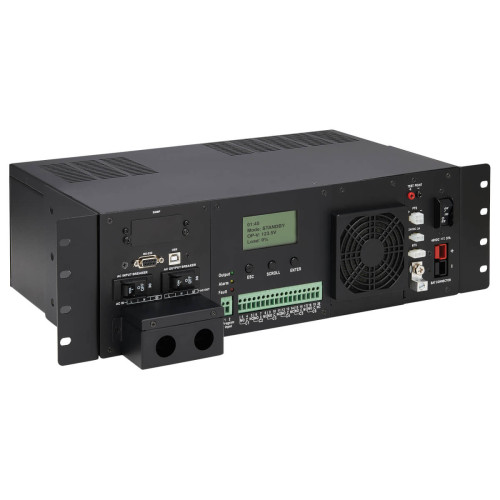

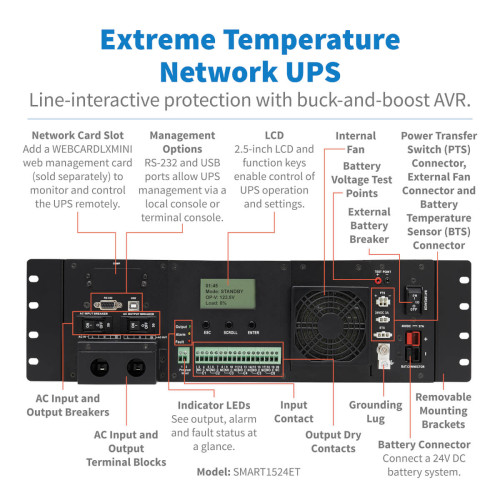

Tripp Lite 120VAC 24VDC 1500VA 1200W Extreme Temperature Network UPS for Industrial and Traffic Networks, 3U, Hardwire
Brand: Tripp-Lite
Product Code: SMART1524ET
Availability: In Stock
Specs: Icecat
