Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: Cat 5 Ethernet cable, Installation guide, Rack mounting hardware, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
Includes: Cat 5 Ethernet cable, Installation guide, Rack mounting hardware, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
| Battery | |
| Automatic battery test | Y |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 48 V |
| Number of batteries supported | 1 |
| Design | |
| Certification | cUL Listed, TAA compliance, UL 1778 |
| Display type | LCD |
| Form factor | Rackmount/Tower |
| LED indicators | Y |
| Product colour | Black |
| Features | |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Audible alarm(s) | Y |
| Auto-restart | Y |
| Automatic Voltage Regulation (AVR) | Y |
| Cable length | 2.44 m |
| Emergency Power Off (EPO) | Y |
| Hot-swap battery | Y |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 154 V |
| Input operation voltage (min) | 75 V |
| Noise level | 40 dB |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 120 V |
| Output power | 1350 W |
| Output power capacity | 1.44 kVA |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Power protection features | Over current |
| Rack capacity | 2U |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Operational conditions | |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power plug | NEMA 5-15P |
| Serial interface | Y |
| SmartSlot | Y |
| USB 2.0 ports quantity | 1 |
| USB port | Y |
| USB port type | USB Type-B |
| Power | |
| AC outlet types | NEMA 5-15R |
| AC outlets quantity | 8 AC outlet(s) |
| Maximum current | 12 A |
| Surge energy rating | 600 J |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, RoHS |
| Technical details | |
| Serial interface type | RS-232 |
| Weight & dimensions | |
| Depth | 490 mm |
| Height | 89 mm |
| Package depth | 620 mm |
| Package height | 246 mm |
| Package weight | 30 kg |
| Package width | 589 mm |
| Weight | 24.8 kg |
| Width | 432 mm |

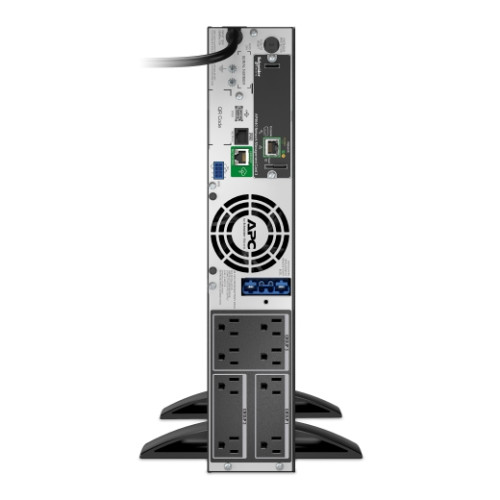

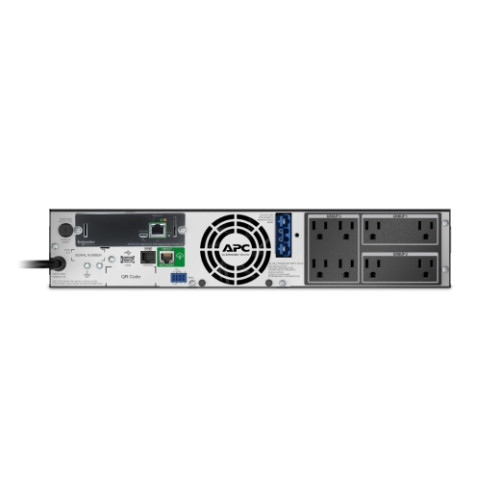

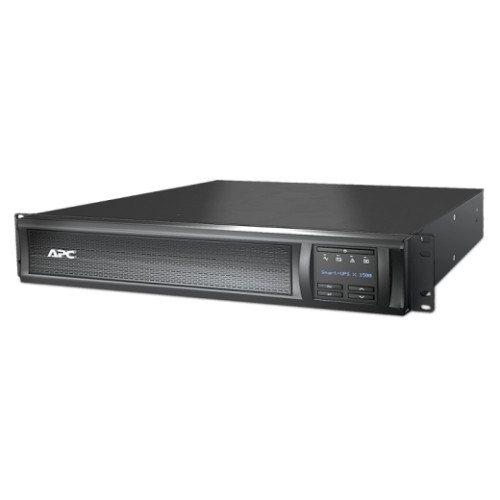

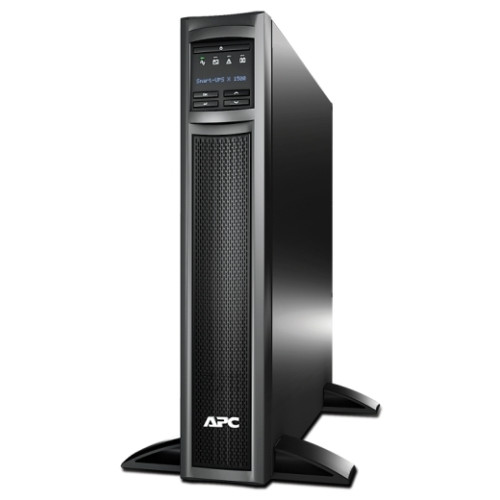

APC SMX1500RM2UCNC uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1350 W 8 AC outlet(s)
- Brand: APC
- Product Code: SMX1500RM2UCNC
- Availability: In Stock
-
$1,398.31
