Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 95% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

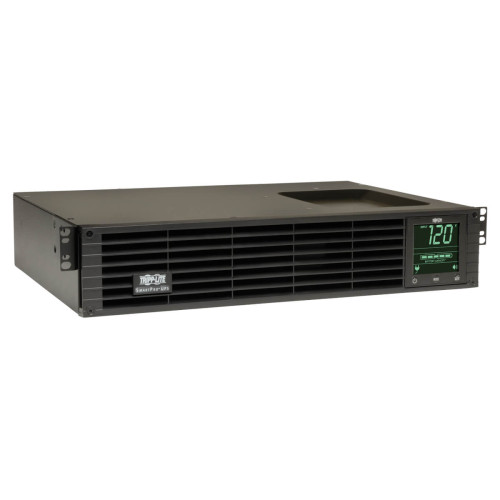

- Tripp Lite SMART1000RM2U line interactive 2U rack/tower UPS with 1000VA / 1kVA / 800W capacity
- Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V

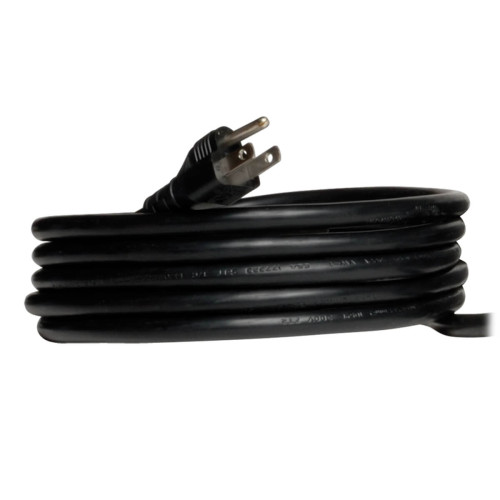

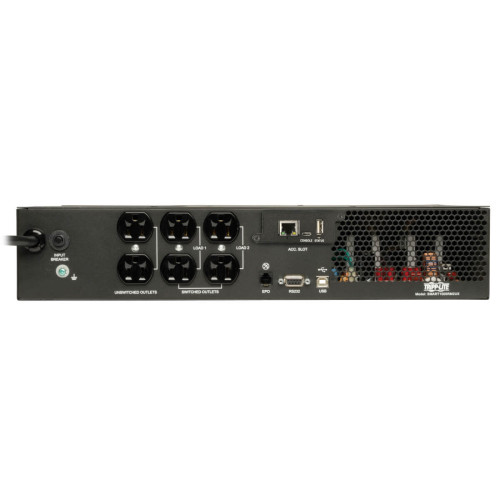

- NEMA 5-15P input plug; 6 NEMA 5-15R output receptacles, Two independently switchable output load banks
- Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
- High 95% efficiency rating in line-power mode offers reduced power consumption and BTU emissions
- Internal batteries offer 15 minutes at 50% load (400W) and 5.3 minutes at 100% load (800W)
- Hot-swappable, user-replaceable internal batteries can be replaced with no disruption to connected equipment

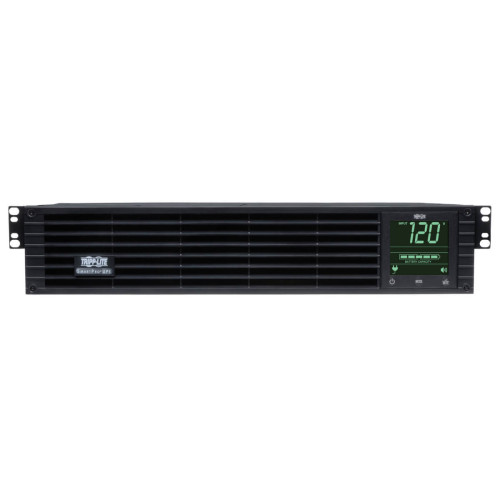

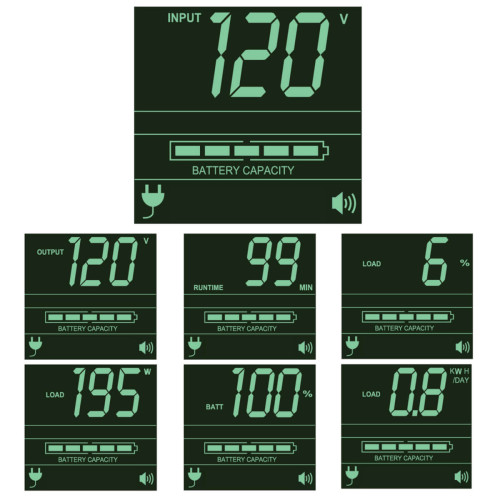

- Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
- LCD interface also supports a number of advanced user setup and operating preferences

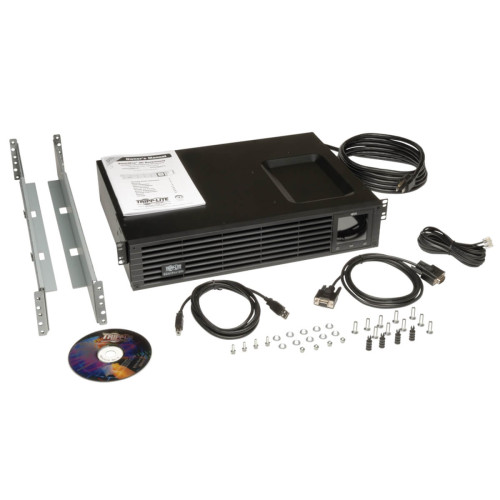

- Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
- Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options
- HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable
- Tripp Lite SMART1000RM2U line interactive 2U rack/tower UPS with 1000VA / 1kVA / 800W capacity
- Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V
- NEMA 5-15P input plug; 6 NEMA 5-15R output receptacles, Two independently switchable output load banks
- Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
- High 95% efficiency rating in line-power mode offers reduced power consumption and BTU emissions
- Internal batteries offer 15 minutes at 50% load (400W) and 5.3 minutes at 100% load (800W)
- Hot-swappable, user-replaceable internal batteries can be replaced with no disruption to connected equipment
- Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
- LCD interface also supports a number of advanced user setup and operating preferences
- Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
- Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options
- HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable
| Battery | |
| Battery recharge time | 4 h |
| Battery voltage | 24 V |
| Cold start | Y |
| Typical backup time at full load | 5.3 min |
| Typical backup time at half load | 15 min |
| Design | |
| Certification | UL1778, CSA, NOM, FCC |
| Country of origin | China |
| Display type | LCD |
| Form factor | Rackmount |
| Product colour | Black |
| Features | |
| Audible alarm(s) | Y |
| Cable length | 3 m |
| Efficiency | 95% |
| Emergency Power Off (EPO) | Y |
| EMI/RFI noise filtering | Y |
| Hot-swap battery | Y |
| Input frequency | 60 Hz |
| Input operation voltage (max) | 120 V |
| Input operation voltage (min) | 110 V |
| Noise level | 45.5 dB |
| Output frequency | 60 Hz |
| Output frequency regulation | 60 Hz |
| Output operation voltage (max) | 120 V |
| Output operation voltage (min) | 110 V |
| Output power | 800 W |
| Output power capacity | 1 kVA |
| Output voltage regulation | -21 - 8% |
| Power factor | 0.8 |
| Rack capacity | 2U |
| Surge protection | Y |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -15 - 50 °C |
| Packaging content | |
| Manual | Y |
| Packaging data | |
| Rack mount kit | Y |
| Ports & interfaces | |
| Modem (RJ-11) ports | 1 |
| Power plug | NEMA 5-15P |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Power | |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 6 AC outlet(s) |
| Maximum current | 15 A |
| Surge energy rating | 570 J |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 317.5 mm |
| Height | 87.6 mm |
| Package depth | 581.7 mm |
| Package height | 223.5 mm |
| Package weight | 19.3 kg |
| Package width | 472.4 mm |
| Weight | 16.1 kg |
| Width | 440.7 mm |
Tripp Lite SmartPro 120V 1000VA 800W Line-Interactive Sine Wave UPS, 2U, WEBCARDLX, LCD, USB, DB9, 6 Outlets
- Brand: Tripp-Lite
- Product Code: SMART1000RM2UN
- Availability: In Stock
-
$957.89
