Introducing the latest addition to Eaton's 5 series UPS line, the Eaton 5PX G2 rackmount and tower UPS provides the maximum power possible at each power rating. The 5PX G2 UPS has power ratings ranging from 1 to 3 kVA, with low and high voltage options and offers up to four optional external battery modules for extra runtime. The 5PX G2 UPS has reduced depth to conserve space allowing for high desnisty wallmount rack options, with the 2 to 3 kVA models.
Join the list to be first to know about the new Eaton 5PX G2 UPS.
5PX G2 UPS features include:
Deployment simplified: The 5PX G2 UPS offers mass UPS firmware upgrades without dropping the load and provides an easy startup configuration wizard simplifying your UPS setup process.
Runtime: Increased standard runtime by at least 25% on 1.5 and 2 kVA models compared to the orginal 5PX UPS
Stay connected, securely: Reduce risk of intrusion with the optional Gigabit Network Card (NETWORK-M2), which is the first UPS connectivity device to meet both UL and IEC cybersecurity standards
Enhanced surge protection: The 5PX G2 provides enhanced surge protection keeping your branch offices and IT closets equiment safe
Join the list to be first to know about the new Eaton 5PX G2 UPS.
5PX G2 UPS features include:
Deployment simplified: The 5PX G2 UPS offers mass UPS firmware upgrades without dropping the load and provides an easy startup configuration wizard simplifying your UPS setup process.
Runtime: Increased standard runtime by at least 25% on 1.5 and 2 kVA models compared to the orginal 5PX UPS
Stay connected, securely: Reduce risk of intrusion with the optional Gigabit Network Card (NETWORK-M2), which is the first UPS connectivity device to meet both UL and IEC cybersecurity standards
Enhanced surge protection: The 5PX G2 provides enhanced surge protection keeping your branch offices and IT closets equiment safe
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 48 V |
| Typical backup time at full load | 5 min |
| Typical backup time at half load | 15 min |
| Design | |
| Display type | LCD |
| Form factor | Rackmount/Tower |
| Product colour | Black, Silver |
| Features | |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 230 V |
| Input operation voltage (min) | 120 V |
| Output power | 1440 W |
| Output power capacity | 1.44 kVA |
| Rack capacity | 2U |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Packaging content | |
| Cables included | RS-232, USB cable |
| Quick installation guide | Y |
| Packaging data | |
| Rack mount kit | Y |
| Ports & interfaces | |
| RS-232 ports | 1 |
| Serial interface | Y |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | Y |
| USB port type | USB Type-B |
| Power | |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 6 AC outlet(s) |
| Technical details | |
| Serial interface type | RS-232 |
| Weight & dimensions | |
| Depth | 447 mm |
| Height | 86.4 mm |
| Weight | 23 kg |
| Width | 436.9 mm |

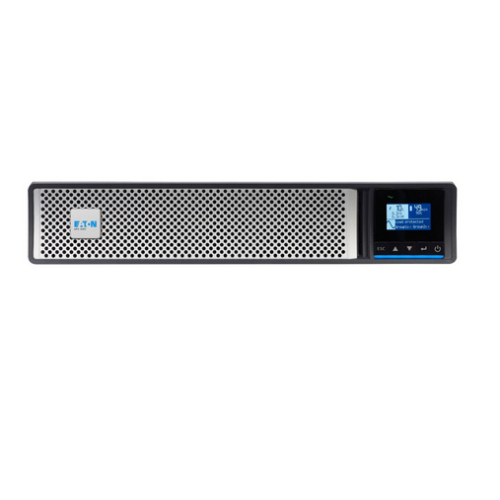

Eaton 5PX G2 UPS uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1440 W 6 AC outlet(s)
- Brand: Eaton
- Product Code: 5PX1500RTG2
- Availability: In Stock
-
$980.49
