The SMX1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient care vicinities. The 1kVA/750W capacity provides up to 27.5 minutes of runtime for a half load or 11 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.
Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX1200XLHG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.

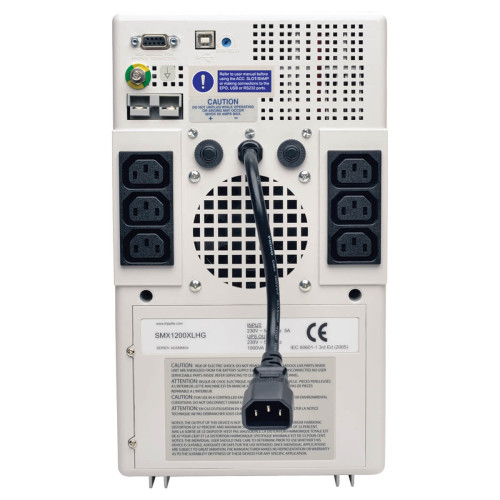

This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15-centimeter (six-inch) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules.
The SMX1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with included PowerAlert® software for safe, unattended system shutdown in the event of a prolonged power failure.
This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty.
Provides Ideal UPS Backup in Healthcare Facilities
Compliant with UL 60601-1 standards for use in patient-care vicinities, when plugged into a hospital-grade outlet
Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise
Battery Backup and Full Surge Protection
27.5 minutes runtime for half load (375W); 11 minutes for full load (750W)
All six hospital-grade outlets provide surge protection rated to 340 joules
EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference
Resistant to electrostatic discharge
LEDs and Audible Alarms Keep You Aware of Power Status

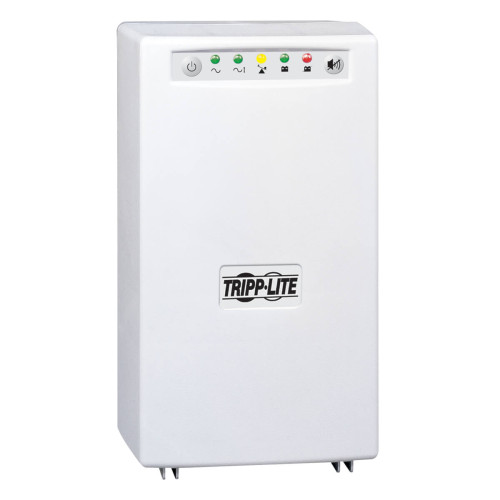

Indicator lights on the front of the unit show you when the UPS is on and supplying utility power, when operating in voltage correction mode or in battery mode, relative load level and low-battery warning
Audible alarms alert you to power failure, overload and low battery conditions; the alarm’s mute/quiet mode ensures patients are not disturbed
Saves Your Files, Even When You’re Away
Works with PowerAlert software (included) to enable safe, unattended system shutdown and files saves during prolonged power failures
Connects to your computer via either the DB9 port or USB port
Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX1200XLHG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.
This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15-centimeter (six-inch) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules.
The SMX1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with included PowerAlert® software for safe, unattended system shutdown in the event of a prolonged power failure.
This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty.
Provides Ideal UPS Backup in Healthcare Facilities
Compliant with UL 60601-1 standards for use in patient-care vicinities, when plugged into a hospital-grade outlet
Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise
Battery Backup and Full Surge Protection
27.5 minutes runtime for half load (375W); 11 minutes for full load (750W)
All six hospital-grade outlets provide surge protection rated to 340 joules
EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference
Resistant to electrostatic discharge
LEDs and Audible Alarms Keep You Aware of Power Status
Indicator lights on the front of the unit show you when the UPS is on and supplying utility power, when operating in voltage correction mode or in battery mode, relative load level and low-battery warning
Audible alarms alert you to power failure, overload and low battery conditions; the alarm’s mute/quiet mode ensures patients are not disturbed
Saves Your Files, Even When You’re Away
Works with PowerAlert software (included) to enable safe, unattended system shutdown and files saves during prolonged power failures
Connects to your computer via either the DB9 port or USB port
| Battery | |
| Battery recharge time | 4.5 h |
| Cold start | Y |
| Typical backup time at full load | 11 min |
| Typical backup time at half load | 27.5 min |
| Design | |
| Certification | CE, IEC 60601-1 |
| Country of origin | China |
| Form factor | Tower |
| LED indicators | Y |
| Product colour | White |
| Features | |
| Audible alarm(s) | Y |
| EMI/RFI noise filtering | Y |
| Hot-swap battery | Y |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 230 V |
| Input operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output operation voltage (min) | 230 V |
| Output power | 750 W |
| Output power capacity | 1 kVA |
| Power protection features | Over voltage, Under voltage |
| Surge protection | Y |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Master (outer) case gross weight | 22.1 kg |
| Master (outer) case height | 469.9 mm |
| Master (outer) case length | 339.9 mm |
| Master (outer) case width | 309.9 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Ports & interfaces | |
| Interface | USB; DB9 |
| Power plug | C14 coupler |
| Power | |
| AC outlet types | C13 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| Maximum current | 10 A |
| Surge energy rating | 340 J |
| Weight & dimensions | |
| Depth | 229.9 mm |
| Height | 322.6 mm |
| Package depth | 339.9 mm |
| Package height | 469.9 mm |
| Package weight | 22.1 kg |
| Package width | 309.9 mm |
| Weight | 20.6 kg |
| Width | 190.5 mm |
Tripp Lite SMX1200XLHG SmartPro 230V 1kVA 750W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, Expandable Runtime
- Brand: Tripp-Lite
- Product Code: SMX1200XLHG
- Availability: In Stock
