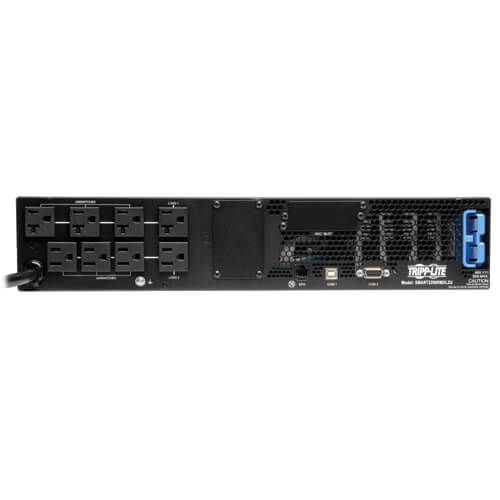

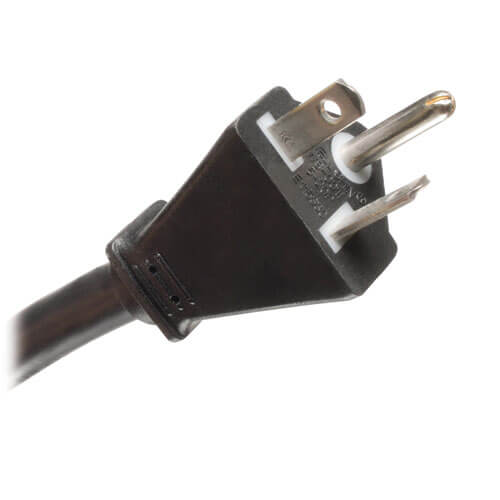

The SM2200RMXL2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 2200VA line interactive UPS system for server, network and telecommunications equipment. 2U rackmount or tower form factor with an installed depth of only 19 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT-3U external battery packs. Uninterruptible Power Supply (UPS) switches to battery-derived AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) offers two levels of voltage boost during brownouts and one level of voltage cut during overvoltages to maintain regulated 100, 110, 120v selectable output over an input range of 83-145V. Includes NEMA 5-20P input plug and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 3-bank PDU switching supports load shedding and remote-reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rackmount accessories included; 2-9USTAND tower kit and 2POSTRMKITWM two post rack & wallmount accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme. 2-year warranty and $250,000 connected equipment insurance; extended warranty and service contracts available.
| Battery | |
| Battery recharge time | 4.5 h |
| Typical backup time at full load | 6 min |
| Typical backup time at half load | 16 min |
| Design | |
| Certification | UL1778 TAA |
| Country of origin | Taiwan |
| Form factor | Rackmount |
| LED indicators | Yes |
| Product colour | Black |
| Features | |
| Audible alarm(s) | Yes |
| Cable length | 3 m |
| Emergency Power Off (EPO) | Yes |
| EMI/RFI noise filtering | Yes |
| Hot-swap battery | Yes |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 145 V |
| Input operation voltage (min) | 83 V |
| Output operation voltage (max) | 120 V |
| Output operation voltage (min) | 120 V |
| Output power | 1600 W |
| Output power capacity | 2.2 kVA |
| Rack capacity | 2U |
| Logistics data | |
| Master (outer) case gross weight | 35.4 kg |
| Master (outer) case height | 223.5 mm |
| Master (outer) case length | 530.9 mm |
| Master (outer) case width | 609.6 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Ports & interfaces | |
| Interface | USB |
| Power | |
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
| AC outlets quantity | 8 AC outlet(s) |
| Maximum current | 20 A |
| Nominal input voltage | 120 V |
| Nominal output voltage | 120 V |
| Surge energy rating | 570 J |
| Weight & dimensions | |
| Depth | 482.6 mm |
| Height | 88.9 mm |
| Package depth | 530.9 mm |
| Package height | 223.5 mm |
| Package weight | 35.4 kg |
| Package width | 609.6 mm |
| Weight | 26.1 kg |
| Width | 444.5 mm |
Tripp Lite SM2200RMXL2UTAA uninterruptible power supply (UPS) 2.2 kVA 1600 W 8 AC outlet(s)
- Brand: Tripp-Lite
- Product Code: SM2200RMXL2UTAA
- Availability: In Stock
-
$1,180.41
