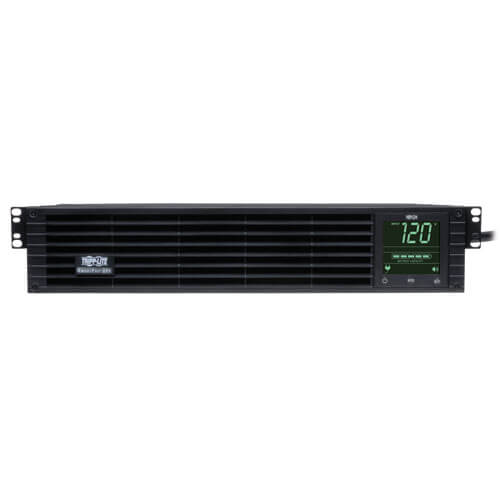

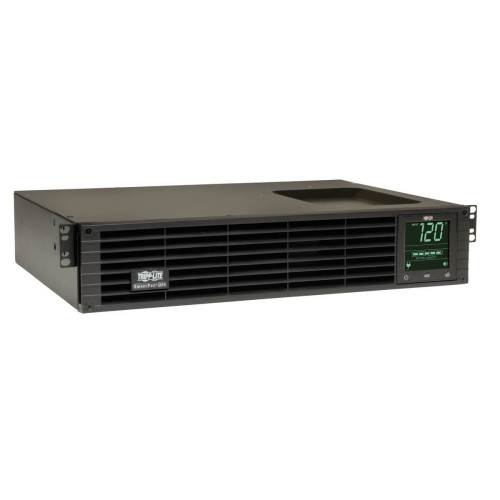

Tripp Lite's SMART 1500RMXL2Ua intelligent, line interactive rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only two rack spaces (2U) in a standard rack enclosure. Large internal batteries offer 21 minutes half load runtime and 7.5 minutes at full load. Runtime is expandable with optional BP36V15-2U external battery pack (limit 1) or BP36V42-3U (multi-pack compatible). Maintains regulated 120V nominal output without using battery power during brownouts and overvoltages from 75 to 147V. 1500VA / 1000 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes a total of 8 outlets with 3 load banks that are individually controllable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme.

- SMART 1500RMXL2Ua line interactive UPS offers voltage regulation and battery support, plus complete AC surge suppression.
- Supports 2U rackmount and upright tower applications.
- Full time sine wave output offer guaranteed compatibility with all equipment types.
- Supports a max load of 1500VA for 7.5 minutes and a half load of 750VA for 21 minutes.
- Expandable runtime with BP36V15-2U (limit 1) or with multiple BP36V42-3U rack/tower external battery packs.
- Maintains regulated 120V nominal output during brownouts and overvoltages from 75 to 147V.
- 1500VA / 1000 watt power handling capability supports a variety of sensitive electronic loads.

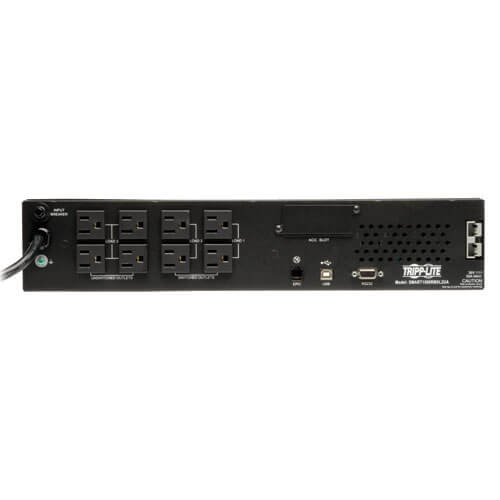

- Includes 8 UPS supported outlets arranged in 3 individually controllable load banks.
- Built in USB and DB9 serial ports support remote monitoring of UPS and site power conditions.
- Built in accessory slot supports SNMP with optional SNMPWEBCARD adapter.
- Emergency Power Off (EPO) interface with cable.

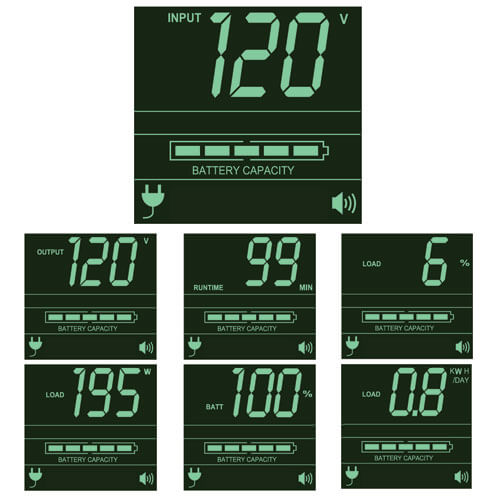

- Multi-function audible alarms and set of 5 front panel LEDs.
- Network-grade AC surge suppression.
- Attractive all-black color scheme.
- UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary.
- Two year warranty with $250,000 connected equipment insurance (USA & Canada only)

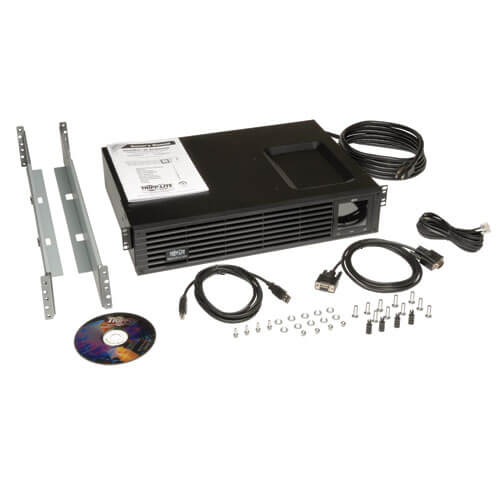

- Mounting hardware included for 4 post rackmount enclosures, 2 post telecom rack compatible with separate purchase 2POSTRMKITWM, compatible with upright tower installation with included hardware.
Battery
Battery recharge time 4.5 h
Typical backup time at full load 7.5 min
Typical backup time at half load 21 min
Design
Certification UL1778, CSA, NOM, FCC Part 15 Category B, FCC Part 68, ROHS
Country of origin China
Form factor Rackmount
LED indicators Yes
Product colour Black
Features
Audible alarm(s) Yes

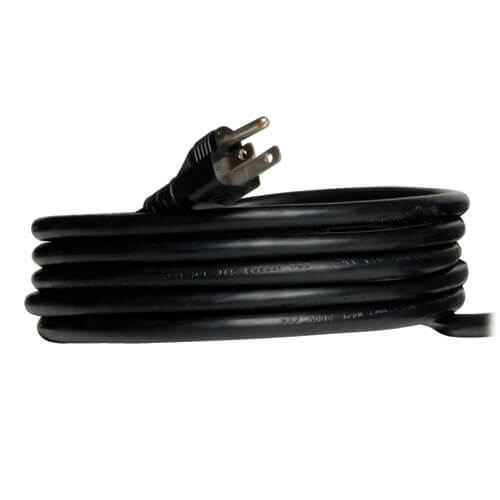

Cable length 3 m
Emergency Power Off (EPO) Yes
Hot-swap battery Yes
Output power 1350 W
Output power capacity 1.5 kVA
Response time 4 ms
UPS topology Line-Interactive
Logistics data
Master (outer) case gross weight 26.2 kg
Master (outer) case height 223.5 mm
Master (outer) case length 490.2 mm
Master (outer) case width 584.2 mm
Products per master (outer) case 1 pc(s)
Operational conditions
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 50 °C
Other features
Dimensions (WxDxH) 444 x 343 x 89 mm
Output connections 8 x 5-15R
Packaging data
Package dimensions (WxDxH) 610 x 514 x 229 mm
Ports & interfaces
Input connection type 5-15P
Serial ports quantity 1
USB 2.0 ports quantity 1
Power
Nominal input voltage 120 V
Nominal output voltage 120 V
Surge energy rating 480 J
Weight & dimensions
Depth 341.6 mm
Height 87.6 mm
Package depth 490.2 mm
Package height 223.5 mm
Package weight 24.3 kg
Package width 584.2 mm
Weight 21.1 kg
Width 439.4 mm
