Tripp Lite's SMART 2200NET intelligent, line interactive large tower UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 27 minutes half load runtime and 11 minutes fully loaded. Runtime is expandable with optional BP24V28-2U (limit 1) and BP24V70-3U external battery packs. 2200VA/1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 6 protected outlets. Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built in contact closure ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in audible alarm and front panel LEDs indicate line power, battery power, battery charge level, load level, plus voltage regulation status. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive large gray tower housing.
| Battery | |
| Battery recharge time | 4 h |
| Typical backup time at full load | 11 min |
| Typical backup time at half load | 27 min |
| Design | |
| Certification | UL1778/cUL/FCC Class A/NOM |
| Country of origin | China |
| LED indicators | Yes |
| Product colour | Black |
| Features | |
| Audible alarm(s) | Yes |
| Cable length | 2.4 m |
| Input frequency | 60 Hz |
| Output power | 1700 W |
| Output power capacity | 2.2 kVA |
| Logistics data | |
| Master (outer) case gross weight | 37.3 kg |
| Master (outer) case height | 349.2 mm |
| Master (outer) case length | 571.5 mm |
| Master (outer) case width | 419.1 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 229 x 311 x 419 mm |
| Non-operating relative humidity (non-condensing) | 0 - 95% |
| Output connections | 6 x NEMA 5-15R |
| Weight (imperial) | 36.3 kg (80 lbs) |
| Packaging data | |
| Package dimensions (WxDxH) | 324 x 420 x 572 mm |
| Ports & interfaces | |
| Input connection type | NEMA 5-15P |
| Power | |
| Nominal input voltage | 120 V |
| Nominal output voltage | 120 V |
| Surge energy rating | 480 J |
| Weight & dimensions | |
| Depth | 317.5 mm |
| Height | 431.8 mm |
| Package depth | 571.5 mm |
| Package height | 349.2 mm |
| Package weight | 37.3 kg |
| Package width | 419.1 mm |
| Weight | 36.3 kg |
| Width | 228.6 mm |

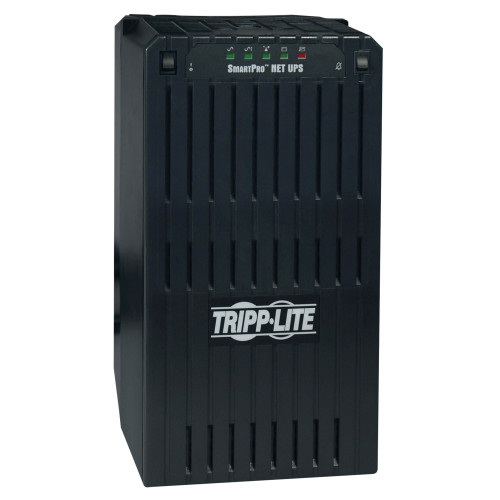

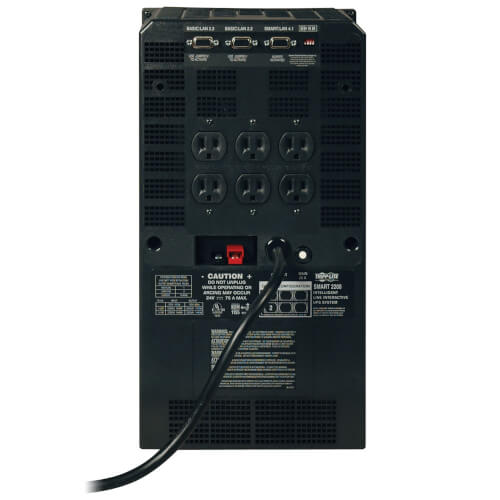

Tripp Lite SMART2200NET uninterruptible power supply (UPS) 2.2 kVA 1700 W
- Brand: Tripp-Lite
- Product Code: SMART2200NET
- Availability: In Stock
-
$1,164.12
