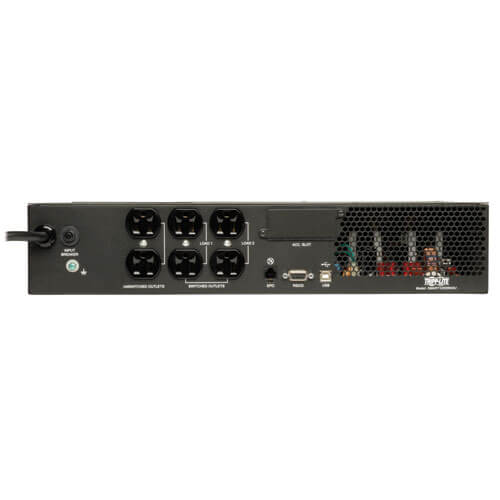

Tripp Lite's SM1000RM2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. This intelligent, line-interactive sine wave rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only two rack spaces (2U) in a standard rack enclosure. Large internal batteries offer 17 minutes half load runtime and 7 minutes at full load. Maintains regulated 120V nominal output without using battery power during brownouts and overvoltages from 83 to 147V. 1000VA/700 watt power handling capability and full time sine wave output supports networking, telecom and other sensitive electronic applications. Includes a total of 6 outlets arranged in 2 load banks that are individually controllable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports simultaneous remote monitoring of UPS and site power conditions via built-in network accessory card slot, USB and DB9 serial monitoring ports. Optional SNMPWEBCARD accessory enables remote monitoring of UPS as a managed device via network management console applications. Communications ports support messaging of detailed UPS operating parameters and line power status. Includes PowerAlert UPS monitoring and unattended shutdown software with management support for an unlimited number of network UPS systems. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme. Two year warranty with $250,000 connected equipment insurance (USA & Canada only).
| Battery | |
| Battery recharge time | 4 h |
| Cold start | Y |
| Typical backup time at full load | 7 min |
| Typical backup time at half load | 17 min |
| Design | |
| Certification | TAA |
| Country of origin | Taiwan |
| Form factor | Rackmount |
| LED indicators | Y |
| Product colour | Black |
| Features | |
| Audible alarm(s) | Y |
| Cable length | 3 m |
| Hot-swap battery | Y |
| Input frequency | 60 Hz |
| Input operation voltage (max) | 147 V |
| Input operation voltage (min) | 83 V |
| Output operation voltage (max) | 120 V |
| Output operation voltage (min) | 120 V |
| Output power | 700 W |
| Output power capacity | 1 kVA |
| Power factor | 0.7 |
| Power protection features | Over voltage, Under voltage |
| Rack capacity | 2U |
| Logistics data | |
| Master (outer) case gross weight | 20.4 kg |
| Master (outer) case height | 223.5 mm |
| Master (outer) case length | 584.2 mm |
| Master (outer) case width | 469.9 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Power | |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 6 AC outlet(s) |
| Maximum current | 15 A |
| Nominal input voltage | 120 V |
| Nominal output voltage | 120 V |
| Surge energy rating | 480 J |
| Weight & dimensions | |
| Depth | 317.5 mm |
| Height | 87.6 mm |
| Package depth | 584.2 mm |
| Package height | 223.5 mm |
| Package weight | 20.4 kg |
| Package width | 469.9 mm |
| Weight | 16.1 kg |
| Width | 440.7 mm |
Tripp Lite SM1000RM2UTAA uninterruptible power supply (UPS) 1 kVA 700 W 6 AC outlet(s)
- Brand: Tripp-Lite
- Product Code: SM1000RM2UTAA
- Availability: In Stock
-
$653.97
