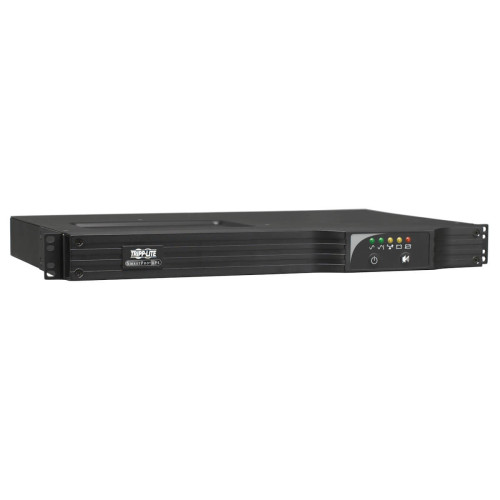

Tripp Lite SMART1000RM1U 1000VA / 1kVA / 800 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Simultaneous-use network management interfaces include USB, RS-232 and optional SNMP/Web accessory card. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.
- Tripp Lite SMART1000RM1U 1kVA / 1000VA / 800 watt line interactive UPS
- 1U rack/tower compatible form factor
- Included mounting brackets support 2 and 4 post rackmount installation; Optional 4POSTRAILKIT1U is available for additional support

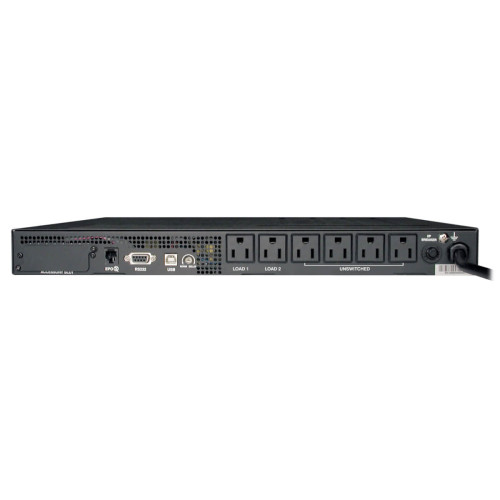

- NEMA 5-15P input; 6 5-15R output receptacles
- Installed depth of only 16.75 in. / 42.5cm
- Sine wave output in both AC and battery backup modes
- Line Interactive UPS provides Automatic Voltage Regulation / AVR to maintain 120V nominal output during brownouts to 83V and overvoltages to 147V without using battery power
- Full load efficiency rating of 99% saves energy and ensures cool operating temperatures
- Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
- PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted
- Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA (Network Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices
- Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces
- Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces

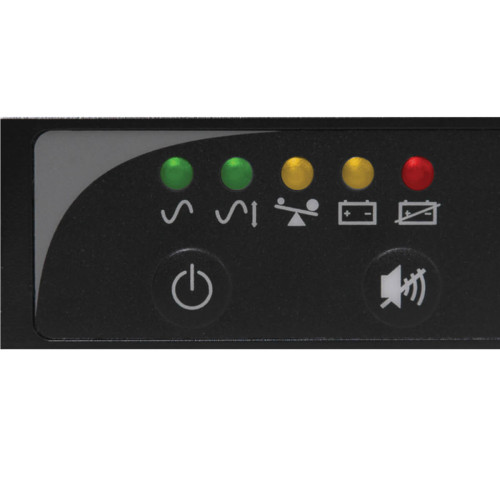

- 3 stage metered LEDs offer current monitoring and battery charge level
- Mains power and voltage regulation LEDs offer at-a-glance power status information
- Front panel switches support self-test and alarm cancel functions
- Field replaceable, hot-swappable internal UPS batteries
- Tripp Lite SMART1000RM1U 1kVA / 1000VA / 800 watt line interactive UPS
- 1U rack/tower compatible form factor
- Included mounting brackets support 2 and 4 post rackmount installation; Optional 4POSTRAILKIT1U is available for additional support
- NEMA 5-15P input; 6 5-15R output receptacles
- Installed depth of only 16.75 in. / 42.5cm
- Sine wave output in both AC and battery backup modes
- Line Interactive UPS provides Automatic Voltage Regulation / AVR to maintain 120V nominal output during brownouts to 83V and overvoltages to 147V without using battery power
- Full load efficiency rating of 99% saves energy and ensures cool operating temperatures
- Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
- PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted
- Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA (Network Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices
- Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces
- Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces
- 3 stage metered LEDs offer current monitoring and battery charge level
- Mains power and voltage regulation LEDs offer at-a-glance power status information
- Front panel switches support self-test and alarm cancel functions
- Field replaceable, hot-swappable internal UPS batteries
| Battery | |
| Battery recharge time | 4 h |
| Cold start | Y |
| Typical backup time at full load | 4 min |
| Typical backup time at half load | 14 min |
| Design | |
| Cooling type | Active |
| Country of origin | Taiwan |
| Form factor | Rackmount |
| Housing material | Steel |
| LED indicators | Y |
| Product colour | Black |
| Features | |
| Audible alarm(s) | Y |
| Automatic Voltage Regulation (AVR) | Y |
| Cable length | 3 m |
| Efficiency | 94% |
| Emergency Power Off (EPO) | Y |
| EMI/RFI noise filtering | Y |
| Hot-swap battery | Y |
| Input frequency | 60 Hz |
| Input operation voltage (max) | 147 V |
| Input operation voltage (min) | 83 V |
| Number of input phases | 1 |
| Output operation voltage (min) | 120 V |
| Output power | 800 W |
| Output power capacity | 1 kVA |
| Power factor | 0.8 |
| Rack capacity | 1U |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Logistics data | |
| Master (outer) case gross weight | 15.9 kg |
| Master (outer) case height | 134.6 mm |
| Master (outer) case length | 581.7 mm |
| Master (outer) case width | 541 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| I/O ports | 6 x NEMA 5-15R |
| Non-operating relative humidity (non-condensing) | 0 - 95% |
| Weight (imperial) | 14.5 kg (32 lbs) |
| Ports & interfaces | |
| Power plug | NEMA 5-15P |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Power | |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 5 AC outlet(s) |
| Maximum current | 9.2 A |
| Surge energy rating | 450 J |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Depth | 425.4 mm |
| Height | 44.4 mm |
| Package depth | 581.7 mm |
| Package height | 134.6 mm |
| Package weight | 15.8 kg |
| Package width | 541 mm |
| Weight | 14.5 kg |
| Width | 444.5 mm |
Tripp Lite SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS, SNMP, Webcard, 1U Rack, USB, DB9 Serial
- Brand: Tripp-Lite
- Product Code: SMART1000RM1U
- Availability: In Stock
-
$761.43
