The OMNIVSINT1500XL line-interactive UPS system offers voltage regulation, surge suppression and long-lasting, expandable battery support for personal computers, internetworking equipment and other sensitive electronics. Internal UPS circuits support entry-level PC systems for up to 75 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 151V and overvoltages up to 282V back to usable 230V levels without using battery power. Offers complete desktop power protection in an attractive black tower configuration. Includes eight IEC320-C13 outlets with battery support and AC surge suppression. USB port enables optional unattended system shutdown without data loss in the case of extended power failure, USB cable included. PowerAlert® software available via free download. Built-in single-line RJ jacks protect modem, fax machine, Ethernet, cordless phone or other peripheral with a standard dialup/DSL phone connection. Built-in audible alarm and four front-panel LEDs indicate line power status, battery power status, battery low/replace status and voltage boost operation. 1500VA power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Offers 4.5 minutes battery runtime with a full load of 1500VA and 13 minutes with a half load of 750VA. Supports hot-swappable battery replacement via built-in access panel. Extended runtime available with optional BP24V15RT2U or BP24V28-2U external battery packs.
OMNIVSINT1500XL Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
Supports entry-level PCs up to 75 minutes during blackouts to enable shutdown without data loss, runtime is further expandable by connecting an external battery pack
Regulates brownouts as low as 151 and overvoltages to 282V back to usable 230V nominal levels without using battery power

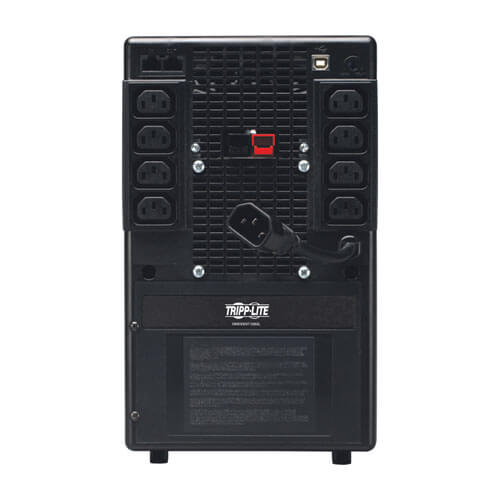

8 IEC320 C13 outlets with complete AC surge suppression
C14 inlet accepts user-supplied AC power cord with country-specific plug
USB port enables data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
Dataline surge suppression protects standard dialup/DSL or Ethernet line connection

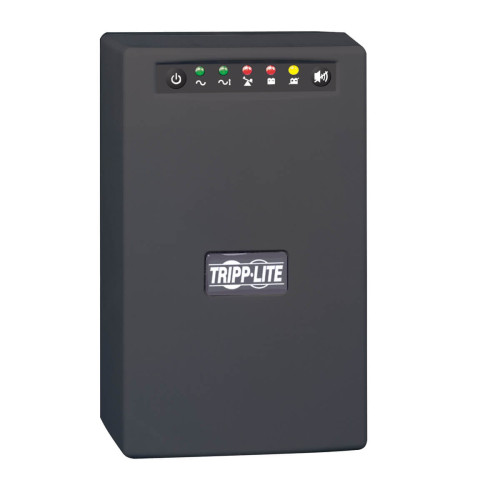

Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
1500VA power handling ability supports a variety of sensitive electronic equipment
4.5 minutes full load runtime (1500VA), 13 minutes half load runtime (750VA)
Runtime is further expandable with the addition of external battery packs
Supports hot swappable battery replacement via built-in access panel
Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
Attractive full color retail packaging
OMNIVSINT1500XL Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
Supports entry-level PCs up to 75 minutes during blackouts to enable shutdown without data loss, runtime is further expandable by connecting an external battery pack
Regulates brownouts as low as 151 and overvoltages to 282V back to usable 230V nominal levels without using battery power
8 IEC320 C13 outlets with complete AC surge suppression
C14 inlet accepts user-supplied AC power cord with country-specific plug
USB port enables data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
Dataline surge suppression protects standard dialup/DSL or Ethernet line connection
Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
1500VA power handling ability supports a variety of sensitive electronic equipment
4.5 minutes full load runtime (1500VA), 13 minutes half load runtime (750VA)
Runtime is further expandable with the addition of external battery packs
Supports hot swappable battery replacement via built-in access panel
Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
Attractive full color retail packaging
| Battery | |
| Battery recharge time | 4.5 h |
| Cold start | Y |
| Typical backup time at full load | 4.5 min |
| Typical backup time at half load | 13 min |
| Design | |
| Certification | UL1778/CE 62040/GOST/SASO/IRAM/CE 62040 |
| Country of origin | China |
| Form factor | Tower |
| Housing material | Polycarbonate (PC) |
| LED indicators | Y |
| Product colour | Black |
| Features | |
| Audible alarm(s) | Y |
| Automatic Voltage Regulation (AVR) | Y |
| Cable length | 0.2 m |
| Efficiency | 97% |
| EMI/RFI noise filtering | Y |
| Hot-swap battery | Y |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 282 V |
| Input operation voltage (min) | 151 V |
| Number of input phases | 1 |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 940 W |
| Output power capacity | 1.5 kVA |
| Output voltage regulation | -18, +8% |
| Power protection features | Over voltage, Under voltage |
| Rack capacity | 2U |
| Surge protection | Y |
| Surge protection features | Network, Telephone |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Logistics data | |
| Master (outer) case gross weight | 14.7 kg |
| Master (outer) case height | 396.2 mm |
| Master (outer) case length | 274.3 mm |
| Master (outer) case width | 264.2 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Non-operating relative humidity (non-condensing) | 0 - 95% |
| Weight (imperial) | 15 kg (33 lbs) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| Power | |
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Maximum current | 5 A |
| Surge energy rating | 340 J |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 190.5 mm |
| Height | 298.4 mm |
| Package depth | 274.3 mm |
| Package height | 396.2 mm |
| Package weight | 14.7 kg |
| Package width | 264.2 mm |
| Weight | 14.5 kg |
| Width | 184.2 mm |
Tripp Lite OMNIVSINT1500XL OmniVS 230V 1500VA 940W Line-Interactive UPS, Extended Run, Tower, USB port, C13 Outlets
- Brand: Tripp-Lite
- Product Code: OMNIVSINT1500XL
- Availability: In Stock
-
$398.46
