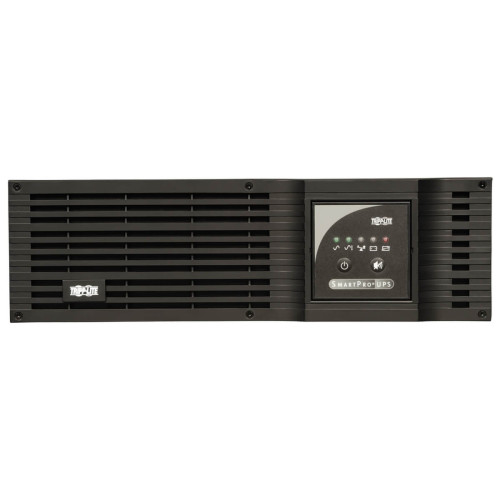

Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.
- 5000VA/3750 watt max. output power capacity compatible with North American 208V/60Hz input voltage
- Supports full output at either 208V or 120V
- 3U rack/tower UPS installs in standard 19 inch rack enclosures with an installed depth of only 25 inches / 63.5cm
- Protects sensitive networking equipment from blackouts, voltage fluctuations and transient surges
- Line Interactive Automatic Voltage Regulation (AVR) corrects 208V nominal input from 167 to 260VAC back to usable 208/120V levels without consuming battery power
- AVR circuits boost undervoltages by 12% and reduce overvoltages by 12%
- Network interfaces support simultaneous communications via USB, DB9 serial and SNMPWEBCARD slot
- Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
- Communications ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, internal UPS temperature, AC line frequency, timed inverter shutoff, activate self-test and load bank output power control
- Built-in Emergency Power Off (EPO) interface with cable
- Sine wave output in AC and battery mode
- Expandable runtime with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
- Half/full load runtime of 20/8.5 minutes with internal batteries

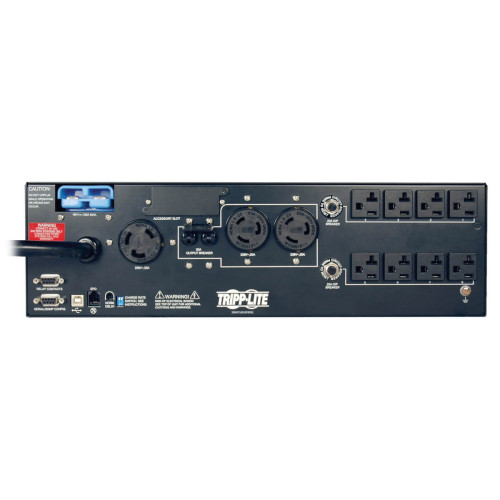

- Includes 11 output receptacles (2 L6-20, 1 L6-30 & 8 NEMA 5-15/20R)
- Ships with installed L6-30P input plug, supports user supplied 50A replacement plug or hardwire input
- Integrated 8 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
- 3 stage metered LEDs offer current monitoring and battery charge level
- Mains power and voltage regulation LEDs offer at-a-glance power status information
- Front panel switches support self-test and alarm cancel functions

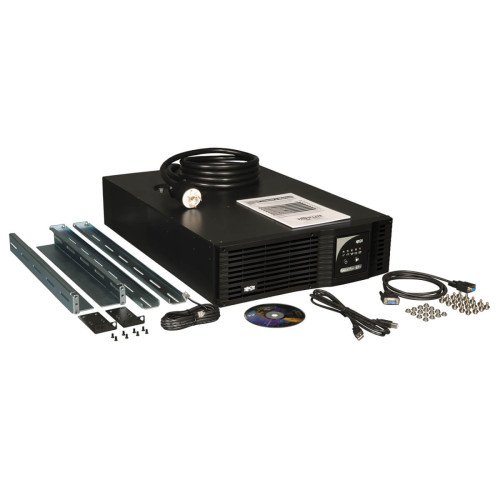

- Included adjustable mounting rails support installation in 4 post 19 inch racks
- UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user is required
- Supports 2 post rackmount installation with optional 2POSTRMKIT accessory
- Supports upright tower placement with optional 2-9USTAND accessory

Battery
Battery recharge time	4 h
Cold start	Y
Typical backup time at full load	8.5 min
Typical backup time at half load	20 min
Design
Certification	UL1778, CSA, NOM, FCC Part 15 Category A,
Cooling type	Active
Country of origin	Taiwan
Form factor	Rackmount/Tower
Housing material	Steel
LED indicators	Y
Product colour	Black
Features
Audible alarm(s)	Y
Automatic Voltage Regulation (AVR)	Y
Cable length	3 m
Efficiency	97%
Emergency Power Off (EPO)	Y
EMI/RFI noise filtering	Y
Hot-swap battery	Y
Input frequency	60 Hz
Input operation voltage (max)	260 V
Input operation voltage (min)	167 V
Number of input phases	1
Output operation voltage (max)	208 V
Output operation voltage (min)	120 V
Output power	3750 W
Output power capacity	5 kVA
Output voltage regulation	+/- 5%
Power factor	0.75
Power protection features	Over voltage, Under voltage
Rack capacity	3U
Response time	4 ms
UPS topology	Line-Interactive
Waveform	Sine
Logistics data
Master (outer) case gross weight	83.9 kg
Master (outer) case height	304.8 mm
Master (outer) case length	838.2 mm
Master (outer) case width	584.2 mm
Products per master (outer) case	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Other features
Output connections	8 x 5-15/20R 2 x L6-20R 1 x L6-30R
Ports & interfaces
Power plug	NEMA L6-30P
Serial ports quantity	2
USB 2.0 ports quantity	1
Power
AC outlet types	NEMA 5–20R, NEMA L6-20R, NEMA L6-30R
AC outlets quantity	11 AC outlet(s)
Maximum current	30 A
Surge energy rating	1020 J
Sustainability
Sustainability certificates	RoHS
Weight & dimensions
Depth	635 mm
Height	133.4 mm
Package depth	838.2 mm
Package height	304.8 mm
Package weight	83.9 kg
Package width	584.2 mm
Weight	65 kg
Width	444.5 mm

Tripp Lite SmartPro 208/120V 5kVA 3.75kW Line-Interactive Sine Wave UPS, Extended Run, SNMP, Webcard, 3U Rack/Tower, USB, DB9 Serial

Brand: Tripp-Lite
Product Code: SMART5000XFMRXL
Availability: In Stock

$3,756.14
