OMNIVSINT800 line-interactive UPS system offers voltage regulation, surge suppression and long-lasting battery support for personal computers, internetworking equipment and other sensitive electronics. Internal UPS circuits support entry-level PC systems for up to 40 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 159 volts back to usable levels without using battery power. Offers complete desktop power protection in an attractive black tower configuration. Includes four outlets with battery support and AC surge suppression. USB port enables optional unattended system shutdown without data loss in the case of extended power failure, USB cable included. PowerAlert® software available via free download. Built-in single-line RJ phone suppression jacks protect modem, fax machine, cordless phone or other peripheral with a standard dialup/DSL phone connection. Built-in audible alarm and four front-panel LEDs indicate line power status, battery power status, battery low/replace status and UPS overload. 800VA power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Supports battery replacement via built-in access panel.
OMNIVSINT800 Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
Supports entry-level PCs up to 40 minutes during blackouts to enable shutdown without data loss
Regulates brownouts as low as 159 volts back to usable levels without using battery power

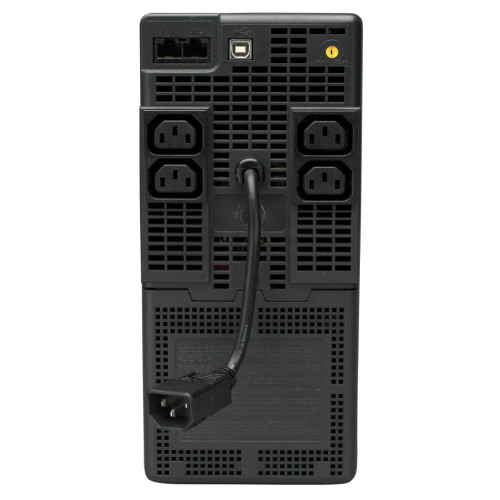

4 IEC320 C13 outlets with complete AC surge suppression
C14 inlet accepts user-supplied AC power cord with country specific plug
USB port enables data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
Single line phone suppression protects standard dialup/DSL phone connection

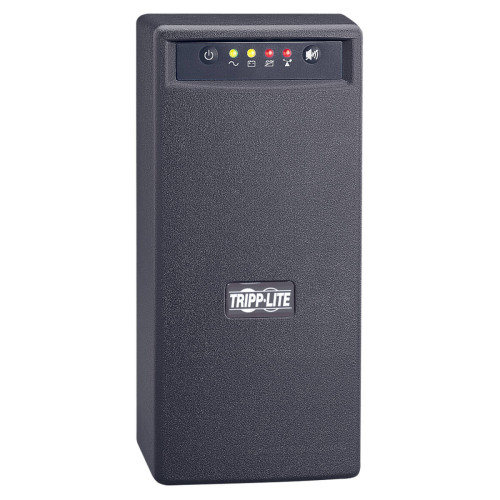

Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
800VA power handling ability supports a variety of sensitive electronic equipment
4.3 minutes full load runtime (800VA), 10.8 minutes half load runtime (400VA)
Supports battery replacement via built-in access panel
Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
Attractive full color retail packaging
OMNIVSINT800 Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
Supports entry-level PCs up to 40 minutes during blackouts to enable shutdown without data loss
Regulates brownouts as low as 159 volts back to usable levels without using battery power
4 IEC320 C13 outlets with complete AC surge suppression
C14 inlet accepts user-supplied AC power cord with country specific plug
USB port enables data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
Single line phone suppression protects standard dialup/DSL phone connection
Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
800VA power handling ability supports a variety of sensitive electronic equipment
4.3 minutes full load runtime (800VA), 10.8 minutes half load runtime (400VA)
Supports battery replacement via built-in access panel
Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
Attractive full color retail packaging
| Battery | |
| Battery recharge time | 4.5 h |
| Cold start | Y |
| Typical backup time at full load | 3.5 min |
| Typical backup time at half load | 11.5 min |
| Design | |
| Certification | UL1778, CE, GOST, SASO, IRAM |
| Country of origin | China |
| Form factor | Tower |
| Housing material | Polyvinyl chloride (PVC) |
| LED indicators | Y |
| Product colour | Black |
| Features | |
| Audible alarm(s) | Y |
| Automatic Voltage Regulation (AVR) | Y |
| Cable length | 0.2 m |
| Efficiency | 97% |
| EMI/RFI noise filtering | Y |
| Hot-swap battery | Y |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 230 V |
| Input operation voltage (min) | 159 V |
| Number of input phases | 1 |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 475 W |
| Output power capacity | 0.8 kVA |
| Output voltage regulation | 5% |
| Power protection features | Under voltage |
| Rack capacity | 2U |
| Surge protection | Y |
| Surge protection features | Telephone |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Master (outer) case gross weight | 19.9 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332120967 |
| Master (outer) case height | 378.5 mm |
| Master (outer) case length | 421.6 mm |
| Master (outer) case width | 279.4 mm |
| Products per master (outer) case | 2 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Ports & interfaces | |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| Power | |
| AC outlet types | C13 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| Maximum current | 2.4 A |
| Surge energy rating | 340 J |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 190.5 mm |
| Height | 273 mm |
| Package depth | 348 mm |
| Package height | 246.4 mm |
| Package weight | 9.94 kg |
| Package width | 190.5 mm |
| Weight | 8.85 kg |
| Width | 133.4 mm |
Tripp Lite OMNIVSINT800 OmniVS 230V 800VA 475W Line-Interactive UPS, USB port, C13 Outlets
- Brand: Tripp-Lite
- Product Code: OMNIVSINT800
- Availability: In Stock
-
$204.38
