Battery
Cold start
Y
Typical backup time at full load
2.3 min
Typical backup time at half load
9 min
Design
Country of origin
Vietnam
Display type
LCD
Form factor
Compact
LED indicators
Y
Product colour
Black
Features
Cable length
1.8 m
ECO mode
Y
EMI/RFI noise filtering
Y
Input frequency
60 Hz
Input operation voltage (max)
120 V
Input operation voltage (min)
110 V
Output frequency
50/60 Hz
Output operation voltage (max)
120 V
Output operation voltage (min)
120 V
Output power
425 W
Output power capacity
0.85 kVA
Surge protection
Y
Surge protection features
Digital Subscriber Line (DSL), Network, Telephone
UPS topology
Standby (Offline)
Waveform
Pure sine
Logistics data
Master (outer) case gross weight
21.4 kg
Master (outer) case GTIN (EAN/UPC)
10037332211139
Master (outer) case height
428 mm
Master (outer) case length
475 mm
Master (outer) case width
395 mm
Products per master (outer) case
6 pc(s)
Operational conditions
Operating altitude
0 - 3048 m
Operating relative humidity (H-H)
0 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Packaging content
Cables included
USB cable
Manual
Y
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Modem (RJ-11) ports
1
Power plug
NEMA 5-15P
USB 2.0 ports quantity
1
USB port
Y
Power
AC outlet types
NEMA 5–15R
AC outlets quantity
12 AC outlet(s)
Maximum current
15 A
Surge energy rating
316 J
Sustainability
Sustainability certificates
RoHS, ENERGY STAR
Weight & dimensions
Depth
309.9 mm
Height
85.1 mm
Package depth
379 mm
Package height
198.9 mm
Package weight
3.39 kg
Package width
151.9 mm
Weight
3.09 kg
Width
130 mm

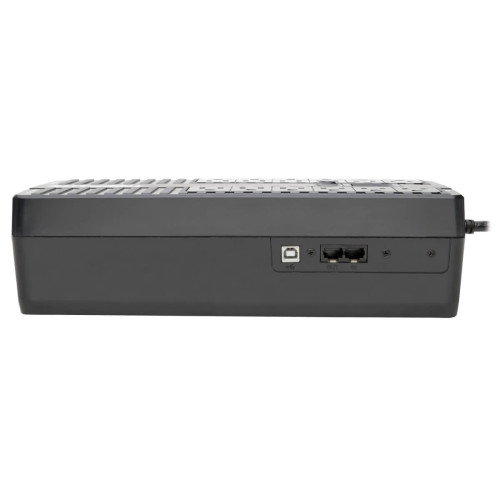

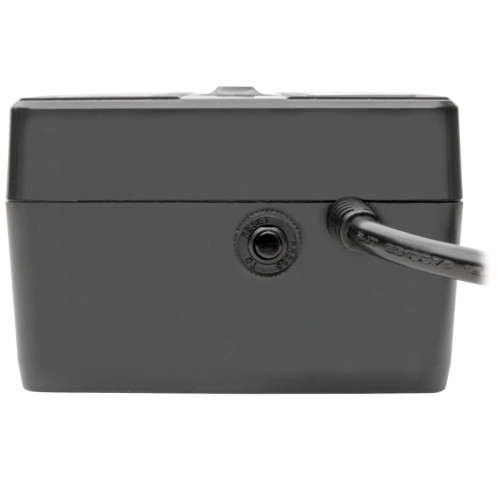

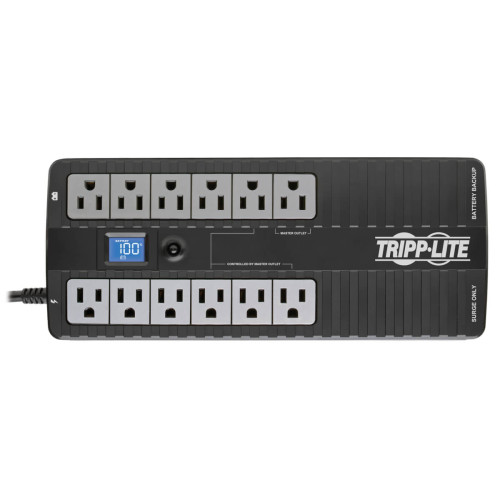

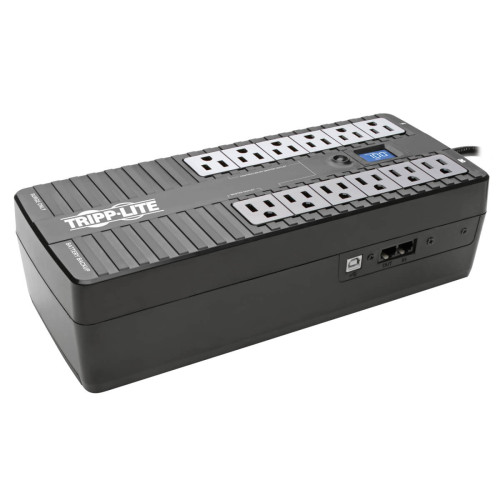

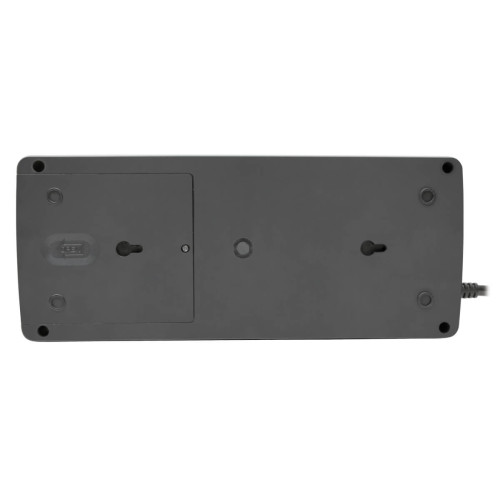

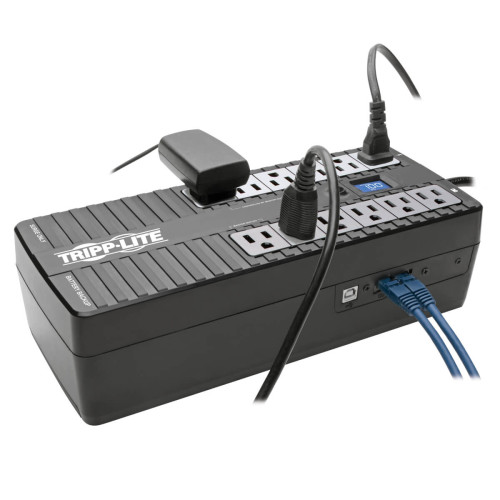

Tripp Lite ECO850LCD uninterruptible power supply (UPS) Standby (Offline) 0.85 kVA 425 W 12 AC outlet(s)
Brand: Tripp-Lite
Product Code: ECO850LCD
Availability: In Stock
Specs: Icecat
