Battery
Battery recharge time
9 h
Battery voltage
12 V
Cold start
Y
Typical backup time at half load
9 min
Design
Certification
UL1778, CSA, NOM, FCC
Country of origin
China
Form factor
Tower
Housing material
Acrylonitrile butadiene styrene (ABS)
LED indicators
Y
Product colour
Black
Features
Audible alarm(s)
Y
Cable length
1.5 m
EMI/RFI noise filtering
Y
Input operation voltage (max)
120 V
Input operation voltage (min)
110 V
Output frequency
50/60 Hz
Output operation voltage (max)
120 V
Output operation voltage (min)
110 V
Output power
300 W
Output power capacity
0.55 kVA
Surge protection
Y
UPS topology
Line-Interactive
Waveform
Pure sine
Logistics data
Master (outer) case gross weight
17.7 kg
Master (outer) case GTIN (EAN/UPC)
10037332211450
Master (outer) case height
259.1 mm
Master (outer) case length
485.1 mm
Master (outer) case width
388.6 mm
Products per master (outer) case
3 pc(s)
Operational conditions
Operating altitude
0 - 3048 m
Operating relative humidity (H-H)
0 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Packaging content
Cables included
USB cable
Manual
Y
Ports & interfaces
Power plug
NEMA 5-15P
USB 2.0 ports quantity
1
USB port
Y
Power
AC outlet types
NEMA 5–15R
AC outlets quantity
8 AC outlet(s)
Maximum current
15 A
Surge energy rating
316 J
Sustainability
Sustainability certificates
RoHS
Weight & dimensions
Depth
304.8 mm
Height
110 mm
Package depth
373.4 mm
Package height
152.4 mm
Package weight
6.35 kg
Package width
236.2 mm
Weight
6.21 kg
Width
162.6 mm

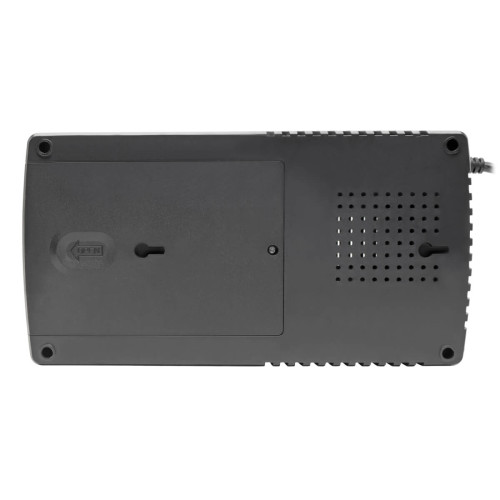

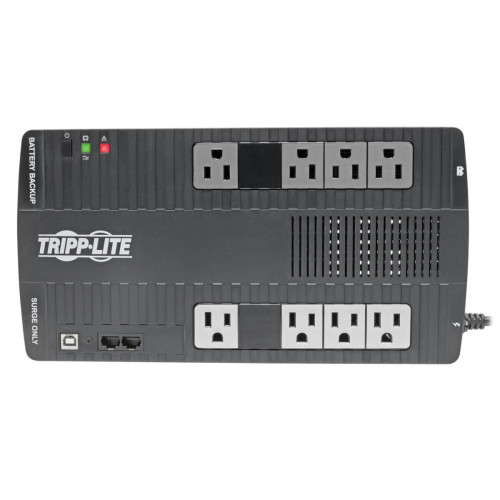

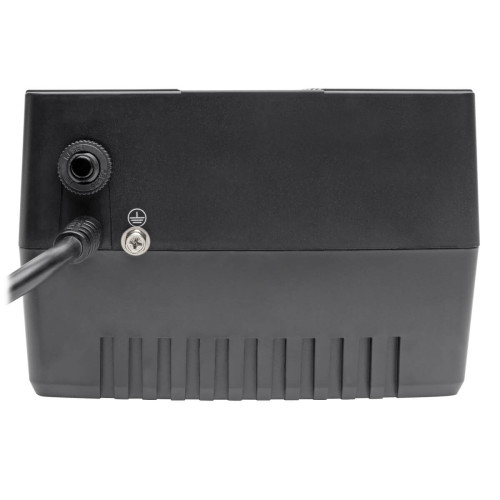

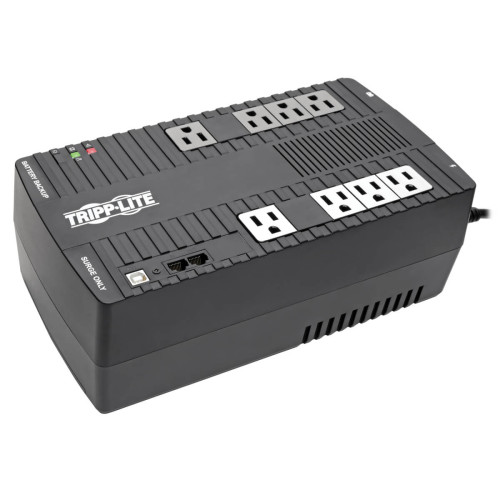

Tripp Lite AVR550U uninterruptible power supply (UPS) Line-Interactive 0.55 kVA 300 W 8 AC outlet(s)
Brand: Tripp-Lite
Product Code: AVR550U
Availability: In Stock
Specs: Icecat
