The AVRX750U Ultra-Compact Line-Interactive UPS offers complete power protection for desktop PCs, network workstations and a wide variety of professional and consumer electronic devices. Uninterruptible Power Supply / UPS circuits switch to battery backup mode within milliseconds to keep connected equipment running without interruption or data loss during power failures. Automatic Voltage Regulation / AVR power conditioning maintains smooth, continuous operation of connected equipment during brownouts and overvoltages. Surge-only outlets offer convenient protection for printers and other desktop accessories not requiring battery support. AC and dataline surge suppression prevents connected equipment damage. USB communications port supports built-in power management and auto-shutdown features of Windows and macOS or full featured monitoring and data-saving auto-shutdown options using free PowerAlert® monitoring software.
AVRX750U ultra-compact 230V line interactive UPS offers complete AC power protection from blackouts, brownouts and transient surges
750VA / 450 watt UPS output capacity
Uninterruptible Power Supply / UPS operation maintains battery-derived AC output during blackouts to prevent data loss and system downtime for connected equipment
Built-in USB port enables data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
HID-compliant USB port also enables integration with built-in power management and auto shutdown features of Windows and macOS
Automatic Voltage Regulation / AVR corrects extended brownouts and overvoltages from 159 to 282V, without using battery power
2.4 minutes runtime at 100% load (450 watts), 8.6 minutes runtime at 50% load (225 watts)
32 minutes runtime for a desktop computer system consuming 80 watts continuous

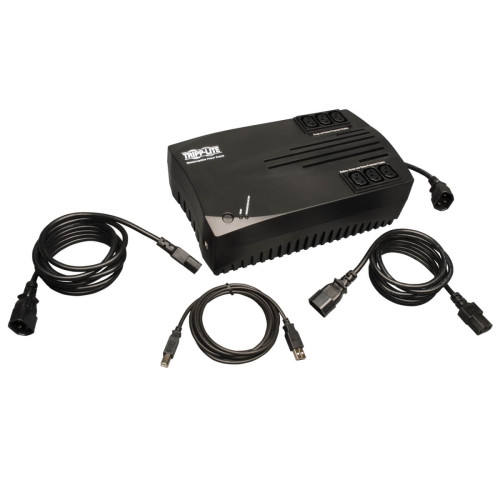

6 total C13 outlets; Includes two 2m C13 to C14 power cables
3 UPS battery backup outlets, plus 3 additional surge-only outlets
C14 inlet supports a variety of site specific input cordsets
Network grade AC surge protection is available from all outlets
Built-in data line surge suppression protects a single dialup or DSL line
Supports Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment, ideal for unattended kiosk applications
Built-in grounding lug
Hot swappable user battery replacement
Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
Space saving, ultra-compact housing with support for wall-mount, desktop or floor placement
AVRX750U ultra-compact 230V line interactive UPS offers complete AC power protection from blackouts, brownouts and transient surges
750VA / 450 watt UPS output capacity
Uninterruptible Power Supply / UPS operation maintains battery-derived AC output during blackouts to prevent data loss and system downtime for connected equipment
Built-in USB port enables data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
HID-compliant USB port also enables integration with built-in power management and auto shutdown features of Windows and macOS
Automatic Voltage Regulation / AVR corrects extended brownouts and overvoltages from 159 to 282V, without using battery power
2.4 minutes runtime at 100% load (450 watts), 8.6 minutes runtime at 50% load (225 watts)
32 minutes runtime for a desktop computer system consuming 80 watts continuous
6 total C13 outlets; Includes two 2m C13 to C14 power cables
3 UPS battery backup outlets, plus 3 additional surge-only outlets
C14 inlet supports a variety of site specific input cordsets
Network grade AC surge protection is available from all outlets
Built-in data line surge suppression protects a single dialup or DSL line
Supports Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment, ideal for unattended kiosk applications
Built-in grounding lug
Hot swappable user battery replacement
Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
Space saving, ultra-compact housing with support for wall-mount, desktop or floor placement
| Battery | |
| Cold start | Y |
| Typical backup time at full load | 3 min |
| Typical backup time at half load | 10 min |
| Design | |
| Certification | CE, GOST, SASO, FCC |
| Country of origin | China |
| Form factor | Tower |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| LED indicators | Y |
| Product colour | Black |
| Features | |
| Audible alarm(s) | Y |
| Automatic Voltage Regulation (AVR) | Y |
| Cable length | 0.2 m |
| Efficiency | 98% |
| EMI/RFI noise filtering | Y |
| Hot-swap battery | Y |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 282 V |
| Input operation voltage (min) | 159 V |
| Number of input phases | 1 |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 450 W |
| Output power capacity | 0.75 kVA |
| Output voltage regulation | +8, -21% |
| Power protection features | Over voltage, Under voltage |
| Rack capacity | 2U |
| Surge protection | Y |
| Surge protection features | Telephone |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Logistics data | |
| Master (outer) case gross weight | 14.9 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332123135 |
| Master (outer) case height | 294.9 mm |
| Master (outer) case length | 387.4 mm |
| Master (outer) case width | 267 mm |
| Products per master (outer) case | 2 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Modem (RJ-11) ports | 1 |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| Power | |
| AC outlet types | C13 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| Maximum current | 10 A |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Surge energy rating | 320 J |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 177.8 mm |
| Height | 101.6 mm |
| Package depth | 368.3 mm |
| Package height | 137.2 mm |
| Package weight | 6.75 kg |
| Package width | 248.9 mm |
| Weight | 6.49 kg |
| Width | 304.8 mm |
Tripp Lite AVRX750U AVR Series 230V 750VA 450W Ultra-Compact Line-Interactive UPS with USB port, C13 Outlets
- Brand: Tripp-Lite
- Product Code: AVRX750U
- Availability: In Stock
-
$223.98
