Tripp Lite's SMART1500LCDXL Line-Interactive UPS System offers network-grade voltage regulation, surge suppression and long-lasting battery support, ideal for network equipment, phone systems, desktop PCs and home entertainment systems. Uninterruptible Power Supply / UPS system provides battery derived AC output to maintain continuous operation of connected equipment without data-loss during power failures and severe voltage fluctuations. Runtime is expandable with one additional BP24V15RT2U external battery pack. Interactive LCD display offers detailed site voltage and UPS status information, plus a variety of UPS control options. High 97% efficient line power mode operation offers reduced UPS energy consumption and BTU heat output. Automatic Voltage Regulation / AVR circuits boost brownouts and reduce overvoltages from 75V to 147V to safe 120V nominal levels without using battery power. Included mounting accessories enable 2U horizontal rackmount installation in 2 and 4 post racks or upright tower installation. Built-in USB and DB9 serial port enables optional unattended system shutdown in case of extended power failure using PowerAlert UPS management software. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in data line surge suppression jacks offer protection for equipment with single-line dialup, DSL or network Ethernet connection.
- SMART1500LCDXL Line Interactive UPS offers network-grade voltage regulation, surge suppression and long lasting battery support
- Space-saving angled NEMA 5-15P input plug; 6ft / 1.8m line cord

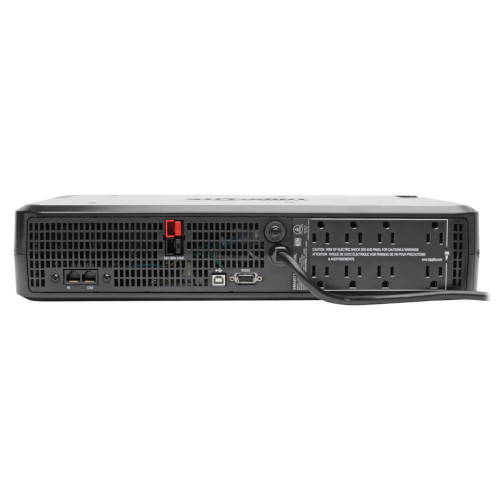

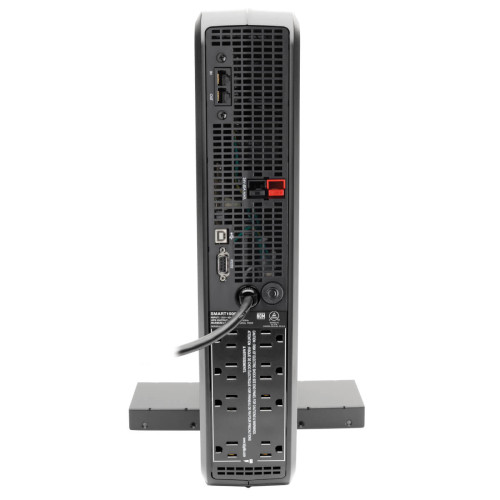

- 8 battery-supported NEMA 5-15R outlets
- Maintains operation of connected equipment during power failures and voltage fluctuations
- Runtime is expandable with one additional BP24V15RT2U external battery pack

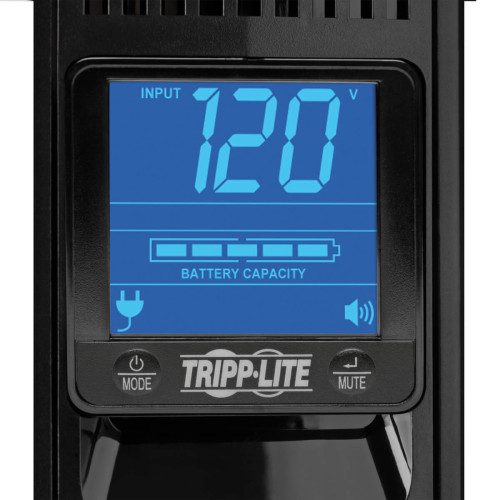

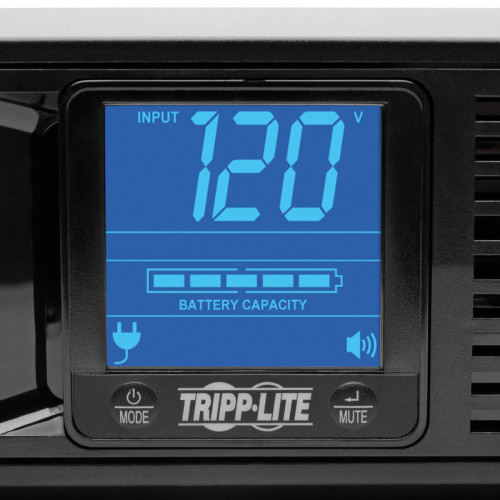

- LCD display reports numeric and icon-based UPS status and site power data
- Select and scroll buttons enable access to UPS control, operating and LCD display settings
- Numeric display reports Input Voltage, Output Voltage, Battery Charge Percentage, Output Load Percentage, Output Load Wattage and Estimated Minutes Runtime data
- Icon-based display items include 5 "bar" battery capacity, UPS operating status, replace battery and voltage regulation status
- Control-mode LCD options enable external battery configuration, alarm on/off control, self-test and LCD brightness

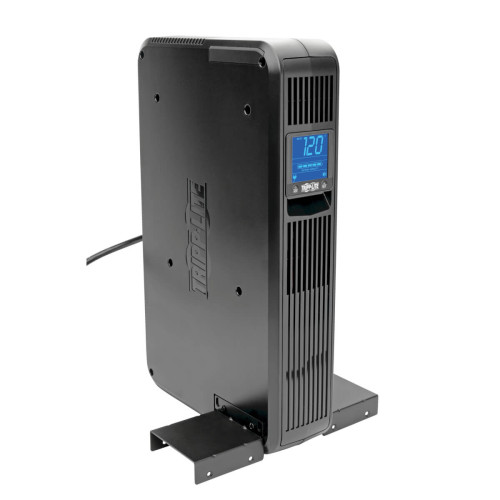

- Front-panel LCD screen rotates for horizontal or vertical installation options
- 97% line power mode efficiency operation
- Line Interactive Automatic Voltage Regulation / AVR circuits correct brownouts and overvoltages from 75 to 147V

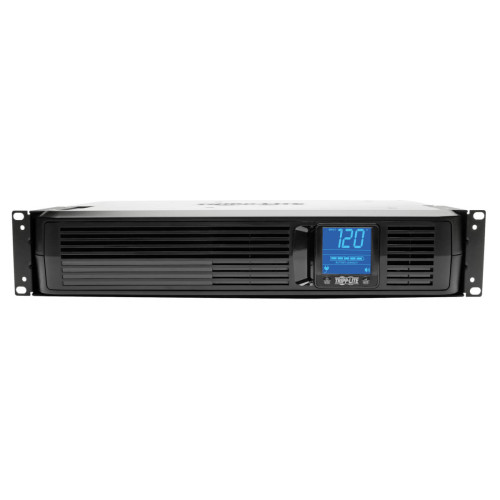

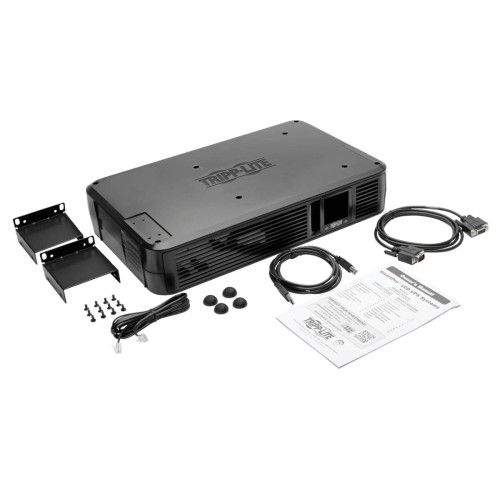

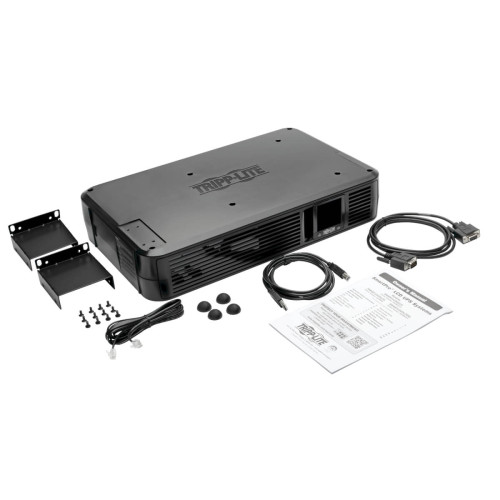

- Included mounting accessories for 2U rackmount and tower installation
- USB and DB9 serial ports enable optional unattended system shutdown using PowerAlert UPS management software available via free download
- HID-compliant USB interface enable integration with built-in power management and auto shutdown features of Windows and Mac OS X
- DB9 serial port also supports contact closure signaling for on-battery and power-restored messaging
- Built-in data line surge suppression jacks offer protection for equipment with single-line dialup or PoE compatible network ethernet connection
- SMART1500LCDXL Line Interactive UPS offers network-grade voltage regulation, surge suppression and long lasting battery support
- Space-saving angled NEMA 5-15P input plug; 6ft / 1.8m line cord
- 8 battery-supported NEMA 5-15R outlets
- Maintains operation of connected equipment during power failures and voltage fluctuations
- Runtime is expandable with one additional BP24V15RT2U external battery pack
- LCD display reports numeric and icon-based UPS status and site power data
- Select and scroll buttons enable access to UPS control, operating and LCD display settings
- Numeric display reports Input Voltage, Output Voltage, Battery Charge Percentage, Output Load Percentage, Output Load Wattage and Estimated Minutes Runtime data
- Icon-based display items include 5 "bar" battery capacity, UPS operating status, replace battery and voltage regulation status
- Control-mode LCD options enable external battery configuration, alarm on/off control, self-test and LCD brightness
- Front-panel LCD screen rotates for horizontal or vertical installation options
- 97% line power mode efficiency operation
- Line Interactive Automatic Voltage Regulation / AVR circuits correct brownouts and overvoltages from 75 to 147V
- Included mounting accessories for 2U rackmount and tower installation
- USB and DB9 serial ports enable optional unattended system shutdown using PowerAlert UPS management software available via free download
- HID-compliant USB interface enable integration with built-in power management and auto shutdown features of Windows and Mac OS X
- DB9 serial port also supports contact closure signaling for on-battery and power-restored messaging
- Built-in data line surge suppression jacks offer protection for equipment with single-line dialup or PoE compatible network ethernet connection
| Battery | |
| Battery recharge time | 4.5 h |
| Cold start | Y |
| Typical backup time at full load | 4 min |
| Typical backup time at half load | 12 min |
| Design | |
| Certification | UL1778, CSA, NOM, FCC |
| Cooling type | Active |
| Country of origin | Vietnam |
| Display type | LCD |
| Form factor | Rackmount/Tower |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| LED indicators | Y |
| Product colour | Black |
| Features | |
| Audible alarm(s) | Y |
| Automatic Voltage Regulation (AVR) | Y |
| Cable length | 1.8 m |
| Efficiency | 95% |
| EMI/RFI noise filtering | Y |
| Input frequency | 60 Hz |
| Input operation voltage (max) | 147 V |
| Input operation voltage (min) | 75 V |
| Number of input phases | 1 |
| Output operation voltage (max) | 120 V |
| Output operation voltage (min) | 115 V |
| Output power | 900 W |
| Output power capacity | 1.5 kVA |
| Output voltage regulation | -18%, +8%% |
| Power protection features | Over voltage, Under voltage |
| Rack capacity | 2U |
| Surge protection features | Network, Telephone |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Logistics data | |
| Master (outer) case gross weight | 15.2 kg |
| Master (outer) case height | 198.1 mm |
| Master (outer) case length | 388.1 mm |
| Master (outer) case width | 553 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 50 °C |
| Ports & interfaces | |
| Power plug | NEMA 5-15P |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Power | |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 8 AC outlet(s) |
| Maximum current | 8.5 A |
| Surge energy rating | 1038 J |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 271.3 mm |
| Height | 88.6 mm |
| Package depth | 388.1 mm |
| Package height | 198.1 mm |
| Package weight | 15.2 kg |
| Package width | 553 mm |
| Weight | 13.3 kg |
| Width | 440.2 mm |
Tripp Lite SmartPro LCD 120V 1500VA 900W Line-Interactive UPS, Extended Run, 2U Rack/Tower, LCD Display, USB, DB9 Serial
- Brand: Tripp-Lite
- Product Code: SMART1500LCDXL
- Availability: In Stock
-
$430.39
