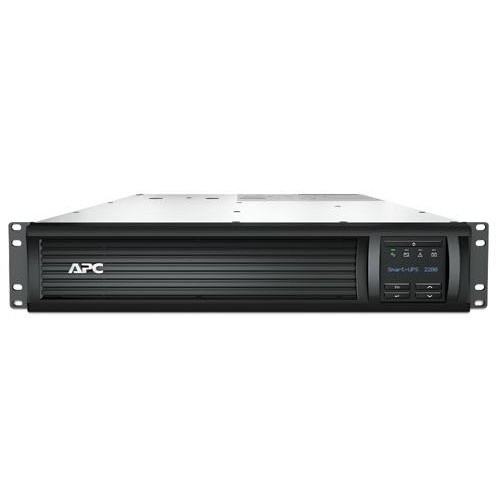

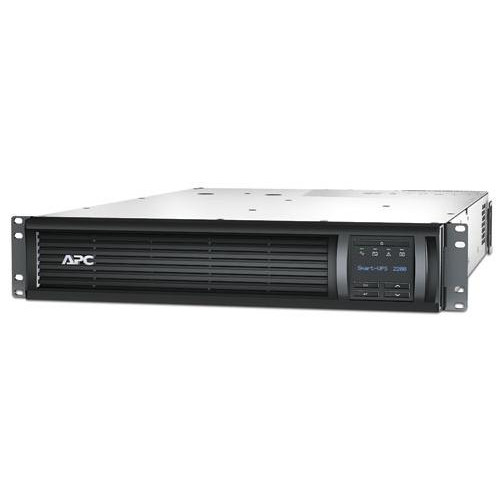

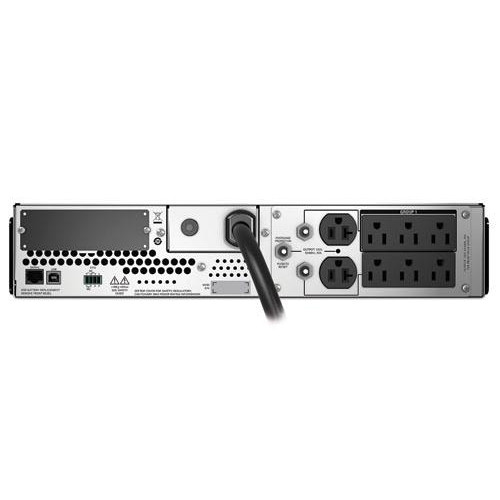

APC Smart-UPS 2200VA LCD RM 2U 120V with L5-20P
Reliable network power protection designed for deployment in retail and open access environments.
Includes : CD with software , Documentation CD , Rack Mounting brackets , Rack Mounting support rails , Smart UPS signalling RS-232 cable , USB cable
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency
Reduces utlility costs, generates less heat.
- Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Sequenced network shutdown and reboot
Customize network shutdown and reboot sequence of connected servers and UPSs.
- Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartSlot
Customize UPS capabilities with management cards.
- StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Reliable network power protection designed for deployment in retail and open access environments.
Includes : CD with software , Documentation CD , Rack Mounting brackets , Rack Mounting support rails , Smart UPS signalling RS-232 cable , USB cable
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency
Reduces utlility costs, generates less heat.
- Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Sequenced network shutdown and reboot
Customize network shutdown and reboot sequence of connected servers and UPSs.
- Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartSlot
Customize UPS capabilities with management cards.
- StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
| Battery | |
| Automatic battery test | Y |
| Battery capacity | 494 VAh |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Cold start | Y |
| Design | |
| Certification | CSA, FCC Part 15 Class A, UL 1778, REACH |
| Display type | LCD |
| Form factor | Rackmount |
| LED indicators | Status |
| Product colour | Black |
| Features | |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Audible alarm(s) | Y |
| Auto-restart | Y |
| Cable length | 2.44 m |
| Emergency Power Off (EPO) | Y |
| Hot-swap battery | Y |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 154 V |
| Input operation voltage (min) | 75 V |
| Noise level | 55 dB |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 120 V |
| Output power | 1920 W |
| Output power capacity | 1.92 kVA |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Rack capacity | 2U |
| Response time | 8 ms |
| Surge protection | Y |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Logistics data | |
| Products per pallet | 8 pc(s) |
| Operational conditions | |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Packaging content | |
| Cables included | RS-232, USB cable |
| Software CD | Y |
| Packaging data | |
| Bracket | Y |
| Rack mount kit | Y |
| Resource CD | Y |
| Ports & interfaces | |
| Power plug | NEMA L5-20P |
| SmartSlot | Y |
| USB port | Y |
| Power | |
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
| AC outlets quantity | 8 AC outlet(s) |
| Surge energy rating | 530 J |
| Sustainability | |
| Sustainability certificates | RoHS, ENERGY STAR |
| Weight & dimensions | |
| Depth | 683 mm |
| Height | 86 mm |
| Package depth | 980 mm |
| Package height | 254 mm |
| Package weight | 49.7 kg |
| Package width | 600 mm |
| Weight | 42.3 kg |
| Width | 480 mm |
APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 1.92 kVA 1920 W 8 AC outlet(s)
- Brand: APC
- Product Code: SMT2200R2X106
- Availability: In Stock
-
$1,481.02
