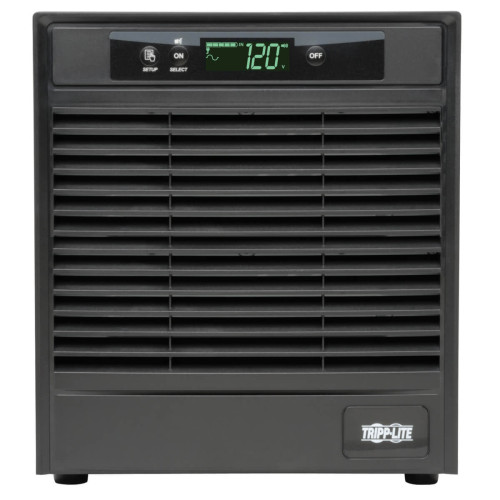

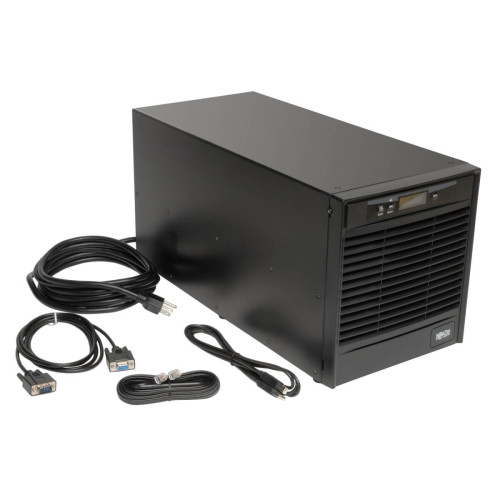

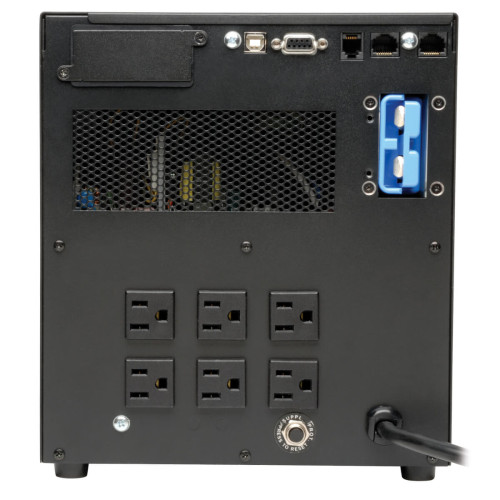

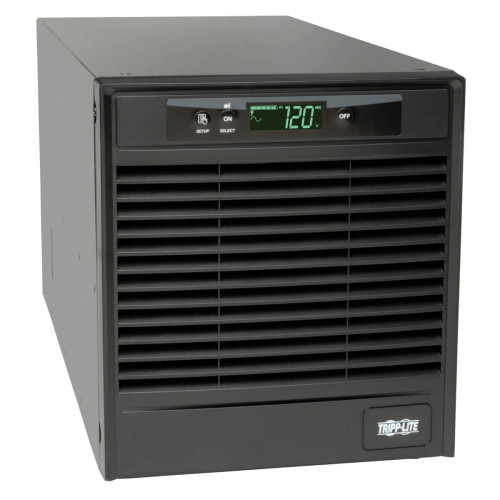

Do you need to protect small- to medium-size servers, networking equipment and telecom systems against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges? Tripp Lite’s SU1500XLCD SmartOnline® Tower UPS System is the solution! Featuring a 1500VA/1350W capacity and true on-line operation with pure sine wave output and zero transfer time to battery, it provides the highest level of power protection for mission-critical equipment. The SU1500XLCD’s large internal battery set supports connected equipment during blackouts, and runtime is expandable with optional external battery packs BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible), sold separately. The SU1500XLCD has 6 5-15R outlets, including 2 load banks of 3 outlets each that are individually controllable to reboot select equipment on demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert power management software supports an unlimited number of network UPS systems. The SU1500XLCD also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network. It comes backed by a 2-year warranty and $250,000 of Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
- Ideal for Protection of Mission-Critical Equipment
- True On-Line Operation with Pure Sine Wave Output and Zero Transfer Time
- Individually Controllable Outlets
- Reliable, Expandable Battery Backup
- High Power Factor and Highly Efficient Operation Reduces BTU Output
- AC Line and Tel/Ethernet Surge Suppression
- EMI/RFI Line Noise Filtering

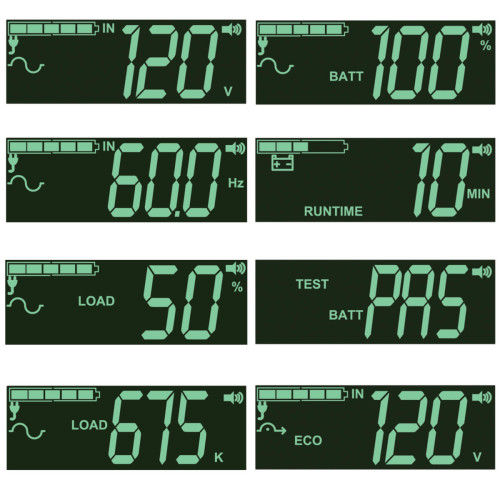

- LCD Screen and Audible Alarm
- USB/DB9 Ports, SNMP Capability and Included PowerAlert Software
- Emergency Power Off (EPO) Capability
- Peace of Mind
- Ideal for Protection of Mission-Critical Equipment
- True On-Line Operation with Pure Sine Wave Output and Zero Transfer Time
- Individually Controllable Outlets
- Reliable, Expandable Battery Backup
- High Power Factor and Highly Efficient Operation Reduces BTU Output
- AC Line and Tel/Ethernet Surge Suppression
- EMI/RFI Line Noise Filtering
- LCD Screen and Audible Alarm
- USB/DB9 Ports, SNMP Capability and Included PowerAlert Software
- Emergency Power Off (EPO) Capability
- Peace of Mind
| Battery | |
| Cold start | Y |
| Off-mode charging | Y |
| Typical backup time at full load | 4.5 min |
| Typical backup time at half load | 14 min |
| Cooling | |
| Built-in fan | Y |
| Design | |
| Cooling type | Active |
| Country of origin | China |
| Display type | LCD |
| Form factor | Tower |
| LED indicators | Charging, Power |
| Product colour | Black |
| Features | |
| Auto-restart | Y |
| Cable length | 3 m |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Y |
| Hot-swap battery | Y |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 127 V |
| Input operation voltage (min) | 100 V |
| Output operation voltage (max) | 127 V |
| Output operation voltage (min) | 100 V |
| Output power | 1350 W |
| Output power capacity | 1.5 kVA |
| Output voltage regulation | 2% |
| UPS topology | Double-conversion (Online) |
| Logistics data | |
| Master (outer) case gross weight | 24.9 kg |
| Master (outer) case height | 375.9 mm |
| Master (outer) case length | 591.8 mm |
| Master (outer) case width | 327.7 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Modem (RJ-11) ports | 1 |

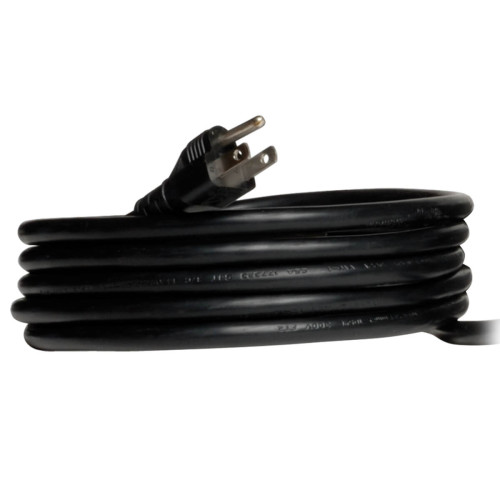

| Power plug | NEMA 5-15P |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| Power | |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 6 AC outlet(s) |
| Maximum current | 12 A |
| Surge energy rating | 570 J |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 495.3 mm |
| Height | 259.1 mm |
| Package depth | 591.8 mm |
| Package height | 375.9 mm |
| Package weight | 24.9 kg |
| Package width | 327.7 mm |
| Weight | 22 kg |
| Width | 228.6 mm |
Tripp Lite SmartOnline 100-127V 1.5kVA 1.35kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, Tower, LCD display, USB, DB9 Serial
- Brand: Tripp-Lite
- Product Code: SU1500XLCD
- Availability: In Stock
-
$1,025.19
