The compact Eaton 5S UPS delivers backup power for desktop PCs and workstations. The Eco-Control capability enables you save up to 30 percent in energy consumption. You can also enhance your power protection and safeguard your data when you pair it with the Eaton UPS Companion software. The 5S displays critical UPS information on battery time and outage tracking through a user-friendly LCD interface.
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 3 min |
| Typical backup time at half load | 14 min |
| Design | |
| Certification | UL 1778, UL497A CE / cTUVus / NOM |
| Display type | LCD |
| Form factor | Tower |
| Product colour | Black |
| Features | |
| Cable length | 1.8 m |
| Efficiency | 95% |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 138 V |
| Input operation voltage (min) | 93 V |
| Noise level | 25 dB |
| Output power | 600 W |
| Output power capacity | 1 kVA |
| Surge protection | Y |
| Surge protection features | Network |
| UPS topology | Line-Interactive |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Ports & interfaces | |
| Power plug | NEMA 5-15P |
| USB 2.0 ports quantity | 1 |
| Power | |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 10 AC outlet(s) |
| Nominal input voltage | 120 V |
| Nominal output voltage | 115 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 381 mm |
| Height | 249 mm |
| Weight | 9.7 kg |
| Width | 86 mm |

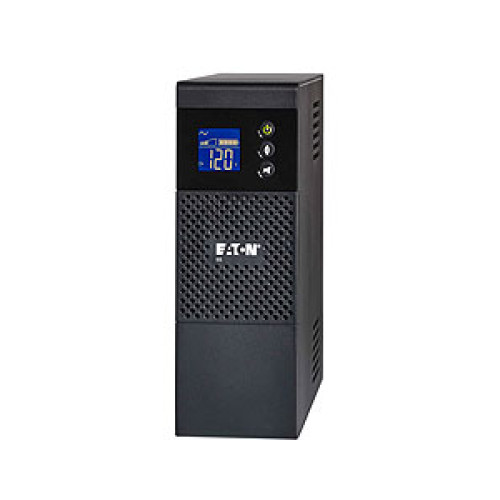

Eaton 5S uninterruptible power supply (UPS) Line-Interactive 1 kVA 600 W 10 AC outlet(s)
- Brand: Eaton
- Product Code: 5S1000LCD
- Availability: In Stock
-
$198.55
