Do you need to protect medium- to large-size servers, networking equipment and telecom systems against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges? Tripp Lite’s SU3000XLCD SmartOnline® Tower UPS System is the solution! Featuring a 3000VA/2700W capacity and true on-line operation with pure sine wave output and zero transfer time to battery, it provides the highest level of power protection for mission-critical equipment. The SU3000XLCD’s large internal battery set supports connected equipment during blackouts, and runtime is expandable with optional external battery packs (Tripp Lite model BP72V15-2U or BP72V28RT-3U), sold separately. The SU3000XLCD has 9 AC outlets (8 5-15/20R, 1 L5-30R), including 2 load banks of 3 outlets each that are individually controllable to reboot select equipment on demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert power management software supports an unlimited number of network UPS systems. The SU3000XLCD also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network. It comes backed by a 2-year warranty and $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
- Ideal for Protection of Mission-Critical Equipment
- True On-Line Operation with Pure Sine Wave Output and Zero Transfer Time
- Individually Controllable Outlets
- Reliable, Expandable Battery Backup
- High Power Factor and Highly Efficient Operation Reduces BTU Output
- AC and Tel/Ethernet Line Surge Suppression
- EMI/RFI Line Noise Filtering

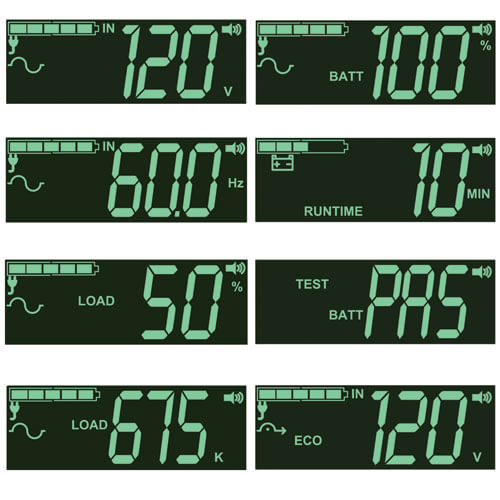

- LCD Screen and Audible Alarm
- USB/DB9 Ports, SNMP Capability and Included PowerAlert Software
- Emergency Power Off (EPO) Capability
- Peace of Mind
- Ideal for Protection of Mission-Critical Equipment
- True On-Line Operation with Pure Sine Wave Output and Zero Transfer Time
- Individually Controllable Outlets
- Reliable, Expandable Battery Backup
- High Power Factor and Highly Efficient Operation Reduces BTU Output
- AC and Tel/Ethernet Line Surge Suppression
- EMI/RFI Line Noise Filtering
- LCD Screen and Audible Alarm
- USB/DB9 Ports, SNMP Capability and Included PowerAlert Software
- Emergency Power Off (EPO) Capability
- Peace of Mind
Battery | |
Battery technology | Sealed Lead Acid (VRLA) |
Battery voltage | 72 V |
Cold start | Y |
Typical backup time at full load | 4.1 min |
Typical backup time at half load | 13.2 min |
Cooling | |
Built-in fan | Y |
Design | |
Certification | UL1778 (USA) CSA (Canada) NOM (Mexico) FCC Part 15 A (EMI) |
Cooling type | Active |
Country of origin | China |
Display type | LCD |
Form factor | Tower |
Housing material | Steel |
LED indicators | Y |
Product colour | Black |
Features | |
Audible alarm(s) | Y |
Cable length | 3 m |
Crest factor | 3:1 |
Efficiency | 94% |
Emergency Power Off (EPO) | Y |
EMI/RFI noise filtering | Y |
Hot-swap battery | Y |
Input frequency | 50/60 Hz |
Input operation voltage (max) | 127 V |
Input operation voltage (min) | 100 V |
Noise level | 51.5 dB |
Output operation voltage (max) | 127 V |
Output operation voltage (min) | 100 V |
Output power | 2700 W |
Output power capacity | 3 kVA |
Output power factor | 0.9 |
Output voltage regulation | 4% |
Power protection features | Over voltage, Under voltage |
Surge protection features | Network |
UPS topology | Double-conversion (Online) |
Waveform | Sine |
Logistics data | |
Master (outer) case gross weight | 34.5 kg |
Master (outer) case height | 373.4 mm |
Master (outer) case length | 320 mm |
Master (outer) case width | 591.8 mm |
Products per master (outer) case | 1 pc(s) |
Operational conditions | |
Operating relative humidity (H-H) | 0 - 95% |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -15 - 50 °C |
Other features | |

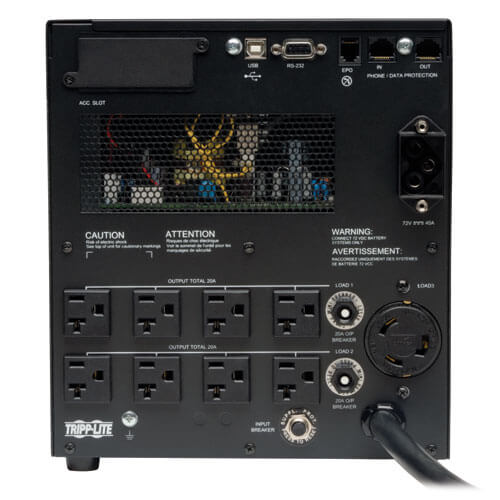

Output connection type | 8 x 5-15/20R & 1 x L5-30R |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 2 |

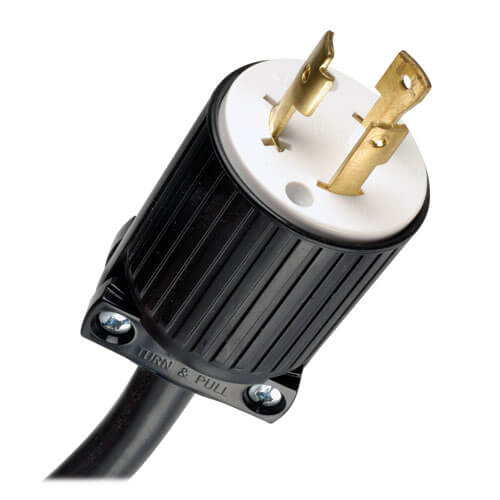

Power plug | NEMA L5-30P |
Serial ports quantity | 1 |
USB 2.0 ports quantity | 1 |
Power | |
AC outlet types | NEMA 5–15R, NEMA 5–20R, NEMA L5-30R |
AC outlets quantity | 9 AC outlet(s) |
Maximum current | 24 A |
Surge energy rating | 570 J |
Sustainability | |
Sustainability certificates | RoHS |
Weight & dimensions | |
Depth | 495.3 mm |
Height | 259.1 mm |
Package depth | 320 mm |
Package height | 373.4 mm |
Package weight | 34.5 kg |
Package width | 591.8 mm |
Weight | 32 kg |
Width | 228.6 mm |

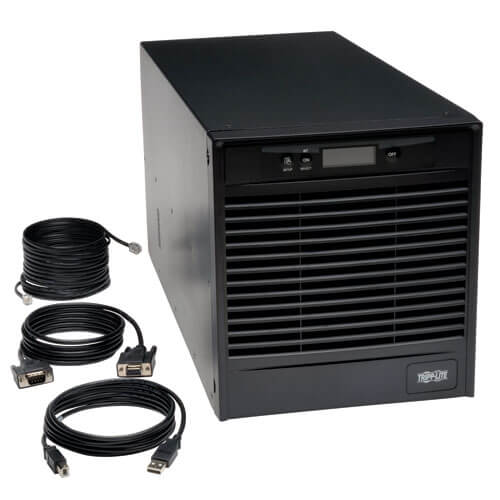

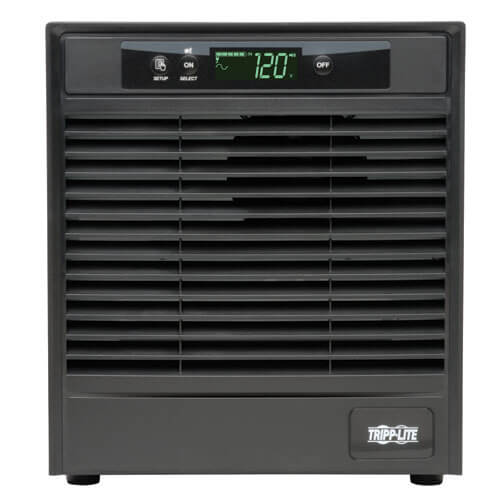

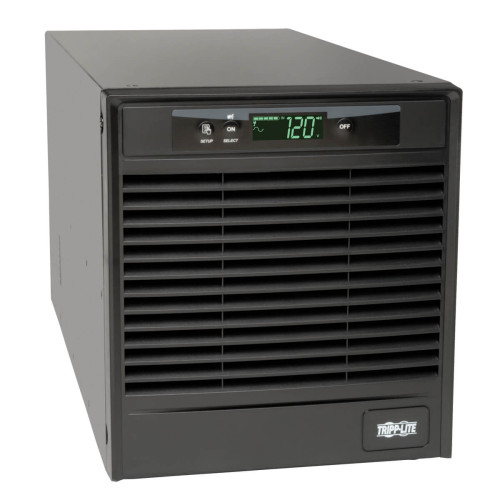

Tripp Lite SmartOnline 100-127V 3kVA 2.7kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, Tower, LCD display, USB, DB9 Serial
- Brand: Tripp-Lite
- Product Code: SU3000XLCD
- Availability: In Stock
-
$2,008.58
