The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton’s Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Cold start	Y
Typical backup time at full load	5 min
Typical backup time at half load	13 min
Design
Certification	IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A
Display type	LCD
Form factor	Tower
LED indicators	Y
Product colour	Black
Features
Cable length	1.8 m
Efficiency	94%
Hot-swap battery	N
Input frequency	50/60 Hz
Input operation voltage (max)	144 V
Input operation voltage (min)	96 V
Noise level	55 dB
Output operation voltage (max)	120 V
Output operation voltage (min)	100 V
Output power	700 W
Output power capacity	1 kVA
Safety	CE/cULus/NOM
Waveform	Sine
Operational conditions
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	0 - 40 °C
Ports & interfaces
Power plug	NEMA 5-15P
Serial ports quantity	1
USB 2.0 ports quantity	1
Power
AC outlet types	NEMA 5–15R
AC outlets quantity	8 AC outlet(s)
Nominal input voltage	120 V
Nominal output voltage	120 V
Sustainability
Sustainability certificates	RoHS
Weight & dimensions
Depth	340 mm
Height	209 mm
Weight	11.6 kg
Width	150 mm

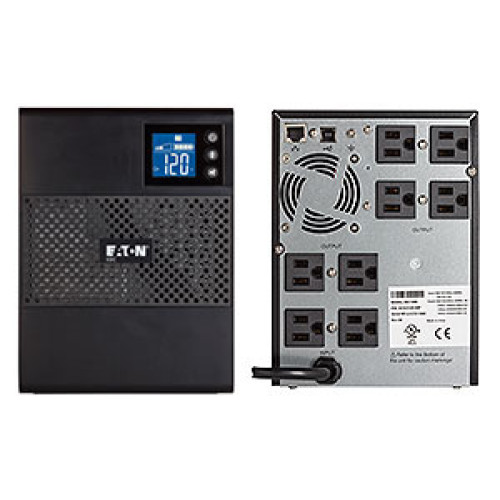

Eaton 5SC1000 uninterruptible power supply (UPS) 1 kVA 700 W 8 AC outlet(s)

Brand: Eaton
Product Code: 5SC1000
Availability: In Stock

$340.12

Qty

0 reviews / Write a review
