Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. An ENERGY STAR qualified UPS, the 9PX’s graphical LCD interface and robust power management software makes managing your UPS easy — even in virtualized environments.
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Cold start | Y |
| Design | |
| Certification | IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A |
| Display type | LED |
| Form factor | Rackmount/Tower |
| LED indicators | Y |
| Product colour | Black |
| Features | |
| Cable length | 1.8 m |
| Efficiency | 92.9% |
| Hot-swap battery | Y |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 176 V |
| Input power factor | 0.99 |
| Noise level | 55 dB |
| Output operation voltage (max) | 208 V |
| Output operation voltage (min) | 120 V |
| Output power | 4900 W |
| Output power capacity | 5.5 kVA |
| Output power factor | 0.9 |
| Output voltage regulation | 1% |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Safety | CE / cULus / NOM |
| Surge protection | Y |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Ports & interfaces | |
| Power plug | NEMA L14-30P |
| USB 2.0 ports quantity | 1 |
| Power | |
| AC outlet types | NEMA 5–20R, NEMA L14-30R, NEMA L6-30R, Terminal |
| AC outlets quantity | 8 AC outlet(s) |
| Nominal input voltage | 120-208 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 650 mm |
| Height | 172.7 mm |
| Weight | 71.3 kg |
| Width | 440 mm |

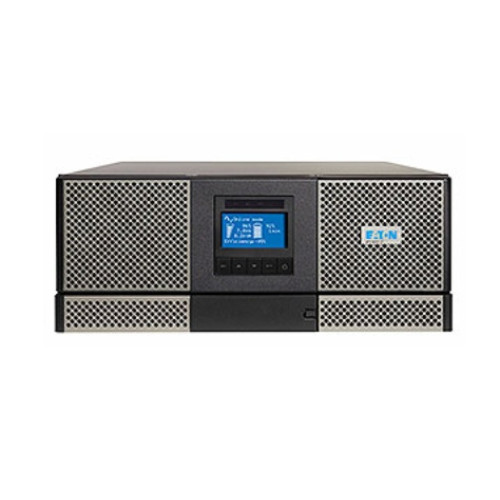

Eaton 9PX6KSP uninterruptible power supply (UPS) 5.5 kVA 4900 W 8 AC outlet(s)
- Brand: Eaton
- Product Code: 9PX6KSP
- Availability: In Stock
-
$5,833.51
