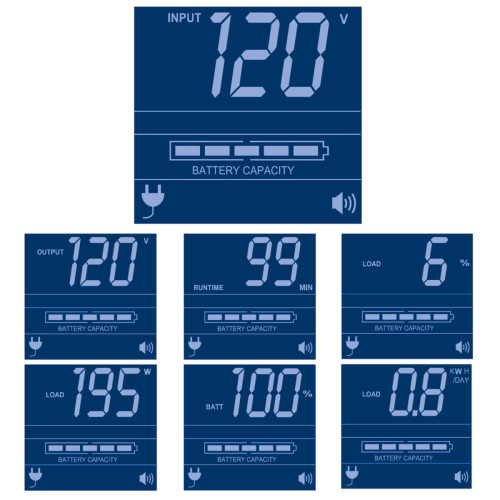

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 95% line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring and control software is available for free download. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable internal batteries.
| Battery | |
| Automatic battery test | Y |
| Battery recharge time | 4.5 h |
| Cold start | Y |
| Typical backup time at full load | 6.4 min |
| Typical backup time at half load | 15.6 min |
| Design | |
| Certification | UL1778 (USA), CSA, NOM, FCC Part 15 B (EMI) |
| Country of origin | Taiwan |
| Display type | LED |
| Form factor | Rackmount/Tower |
| LED indicators | Y |
| Product colour | Black |
| Features | |
| Audible alarm(s) | Y |
| Automatic Voltage Regulation (AVR) | Y |

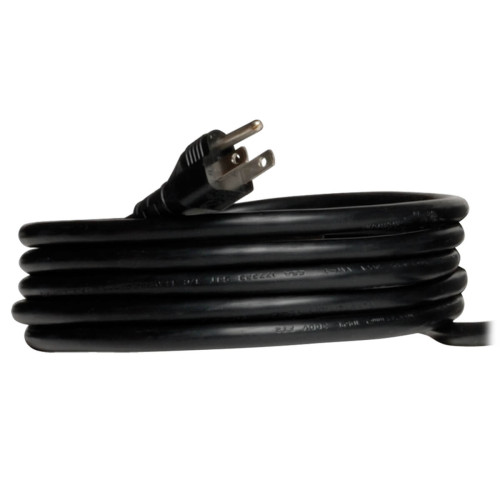

| Cable length | 3 m |
| Efficiency | 95% |
| Emergency Power Off (EPO) | Y |
| Hot-swap battery | Y |
| Noise level | 45 dB |
| Number of input phases | 1 |
| Output power | 700 W |
| Output power capacity | 1 kVA |
| Power factor | 0.7 |
| Power protection features | Over voltage, Under voltage |
| Rack capacity | 2U |
| Response time | 4 ms |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Logistics data | |
| Master (outer) case gross weight | 18.1 kg |
| Master (outer) case height | 221 mm |
| Master (outer) case length | 576.6 mm |
| Master (outer) case width | 469.9 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Number of phases | 1 |
| Ports & interfaces | |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| Power | |

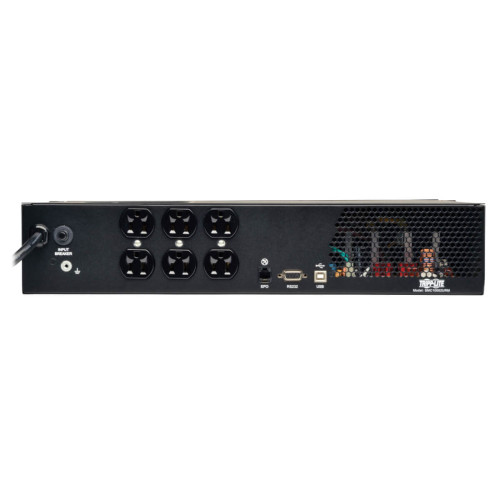

| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 6 AC outlet(s) |
| Nominal input voltage | 120 V |
| Nominal output voltage | 120 V |
| Surge energy rating | 570 J |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 317.5 mm |
| Height | 87.6 mm |
| Package depth | 576.6 mm |
| Package height | 221 mm |
| Package weight | 18.1 kg |
| Package width | 469.9 mm |
| Weight | 16.1 kg |
| Width | 440.7 mm |

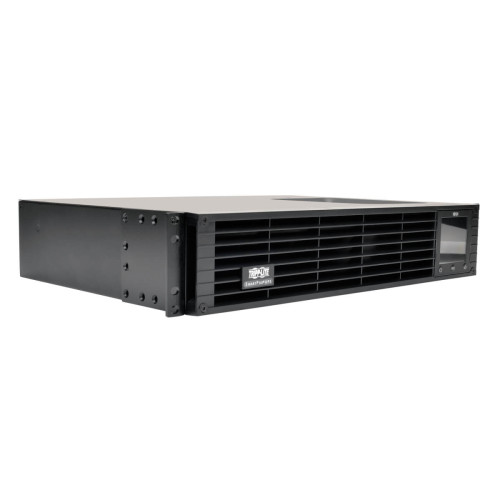

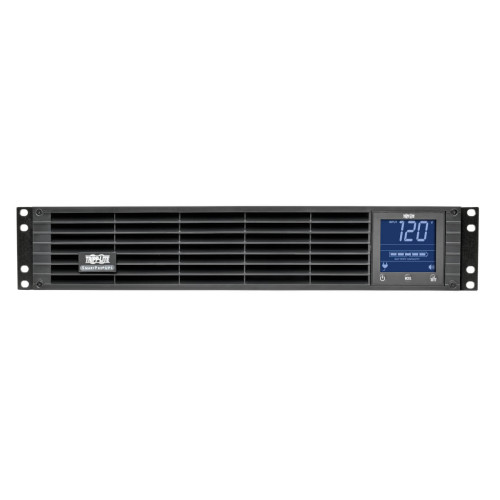

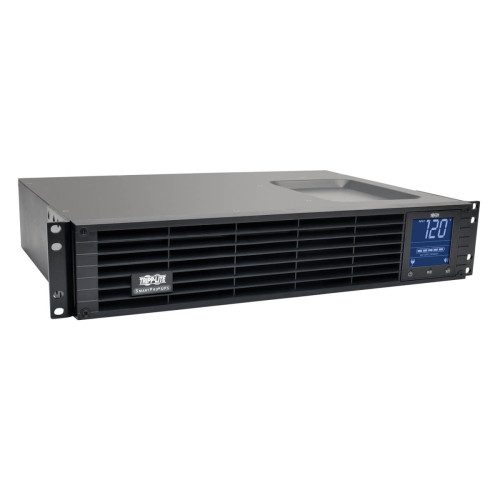

Tripp Lite SMC10002URM uninterruptible power supply (UPS) Line-Interactive 1 kVA 700 W 6 AC outlet(s)
- Brand: Tripp-Lite
- Product Code: SMC10002URM
- Availability: In Stock
-
$585.06
