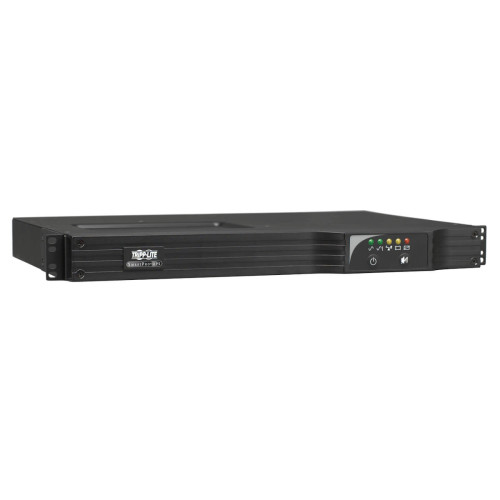

Tripp Lite SMART750RM1U 750VA / .75kVA / 600 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Simultaneous-use network management interfaces include USB, RS-232 and Pre-installed SNMPWEBCARD accessory. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.
| Battery | |
| Automatic battery test | Y |
| Battery recharge time | 4 h |
| Battery voltage | 24 V |
| Cold start | Y |
| Typical backup time at full load | 4.9 min |
| Typical backup time at half load | 13.2 min |
| Design | |
| Certification | UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI) |
| Cooling type | Active |
| Country of origin | Taiwan |
| Form factor | Rackmount |
| Housing material | Steel |

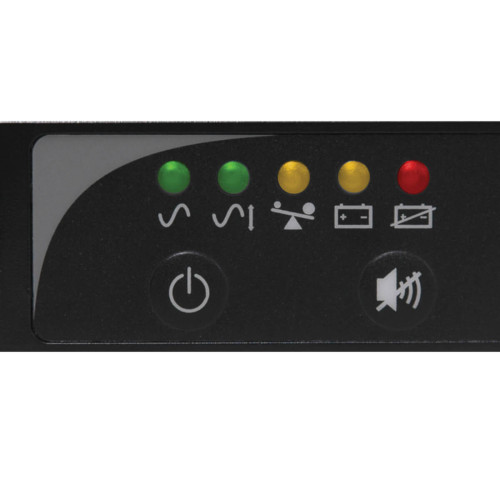

| LED indicators | Power, Status |
| Product colour | Black |
| Features | |
| Audible alarm modes | Battery replacement |
| Audible alarm(s) | Y |
| Automatic Voltage Regulation (AVR) | Y |
| Cable length | 3 m |
| Efficiency | 98% |
| Emergency Power Off (EPO) | Y |
| EMI/RFI noise filtering | Y |
| Hot-swap battery | Y |
| Input frequency | 60 Hz |
| Input operation voltage (max) | 120 V |
| Number of input phases | 1 |
| Output operation voltage (max) | 120 V |
| Output operation voltage (min) | 110 V |
| Output power | 600 W |
| Output power capacity | 0.75 kVA |
| Power factor | 0.8 |
| Rack capacity | 1U |
| Response time | 5 ms |
| Surge protection | Y |
| Waveform | Sine |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Number of phases | 1 |
| Packaging content | |
| Cables included | USB cable |
| Manual | Y |
| Packaging data | |
| Rack mount kit | Y |
| Ports & interfaces | |
| Emergency Power Off (EPO) connector | Y |
| Power plug | NEMA 5-15P |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| Power | |

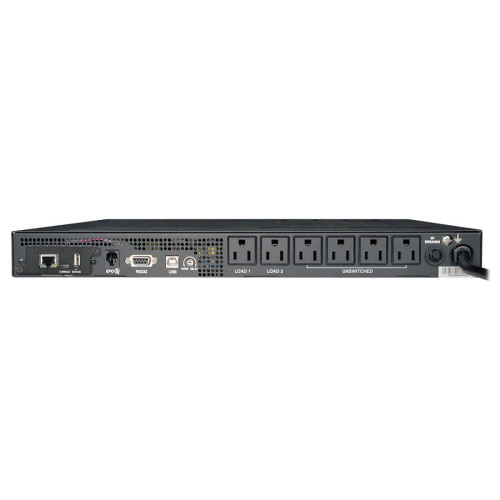

| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 6 AC outlet(s) |
| Surge energy rating | 450 J |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 425.4 mm |
| Height | 44.4 mm |
| Package depth | 569 mm |
| Package height | 134.6 mm |
| Package weight | 15.6 kg |
| Package width | 538.5 mm |
| Weight | 13.6 kg |
| Width | 444.5 mm |
Tripp Lite SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS, 1U Rackmount, Pre-installed SNMPWEBCARD, USB, DB9 Serial
- Brand: Tripp-Lite
- Product Code: SMART750RM1UN
- Availability: In Stock
-
$961.69
