Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utlility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utlility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
| Battery | |
| Automatic battery test | Y |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Cold start | Y |
| Number of batteries supported | 1 |
| Design | |
| Certification | REACH |
| Display type | LCD |
| Form factor | Tower |
| LED indicators | Status |
| Product colour | Black |
| Features | |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Audible alarm(s) | Y |
| Auto-restart | Y |
| Automatic Voltage Regulation (AVR) | Y |
| Cable length | 1.83 m |
| EMI/RFI noise filtering | Y |
| Hot-swap battery | Y |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 154 V |
| Input operation voltage (min) | 75 V |
| Noise level | 45 dB |
| Output operation voltage (max) | 127 V |
| Output operation voltage (min) | 110 V |
| Output power | 1000 W |
| Output power capacity | 1.44 kVA |
| Power protection features | Short circuit |
| Response time | 10 ms |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Management features | |
| Web-based management | Y |
| Operational conditions | |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Packaging content | |
| Cables included | RS-232, USB cable |
| Software CD | Y |
| Packaging data | |
| Resource CD | Y |
| Ports & interfaces | |
| Serial interface | Y |
| SmartSlot | Y |
| USB port | Y |
| Power | |

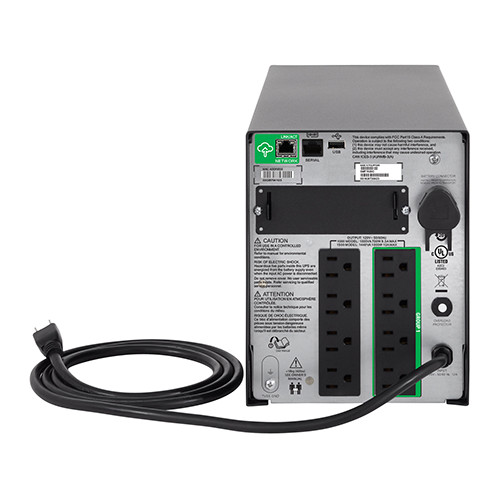

| AC outlet types | NEMA 5-15R |
| AC outlets quantity | 8 AC outlet(s) |
| Surge energy rating | 680 J |
| Sustainability | |
| Sustainability certificates | RoHS, ENERGY STAR |
| Weight & dimensions | |
| Depth | 439 mm |
| Height | 219 mm |
| Package depth | 590 mm |
| Package height | 330 mm |
| Package weight | 27.2 kg |
| Package width | 330 mm |
| Weight | 24.6 kg |
| Width | 171 mm |

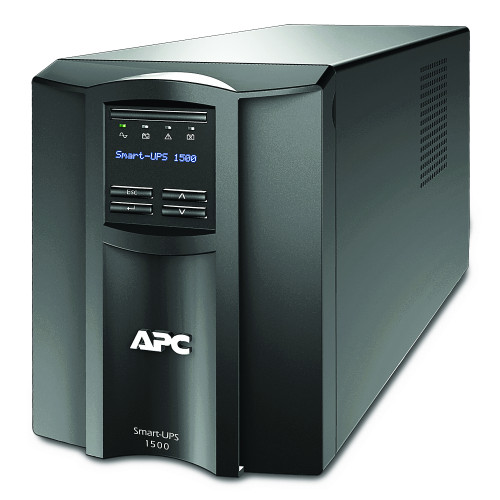

APC SMT1500C uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1000 W 8 AC outlet(s)
- Brand: APC
- Product Code: SMT1500C
- Availability: In Stock
-
$641.70
