The SUINT3000XLCD SmartOnline® 230V 3kVA 2700W On-Line Double-Conversion UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. It converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online, double-conversion mode.
Featuring one C19 and six C13 outlets, the SUINT3000XLCD has an internal battery that provides 11.2 minutes of support at half load (1350W) and 4.4 minutes at full load (2700W). Adding external battery packs, such as BP72V15-2U (sold separately), provides extended runtime. Operating in optional economy mode reduces heat output and cooling requirements and consumes less electricity.

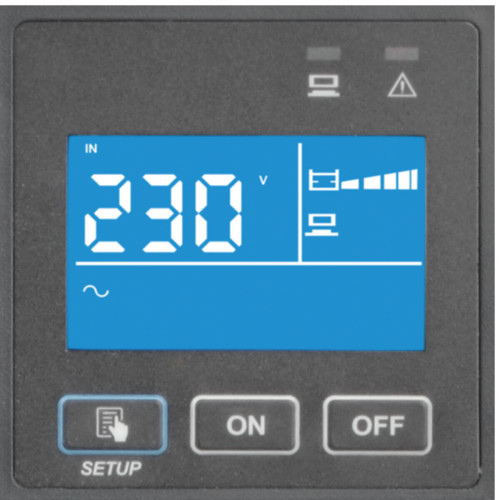

An interactive front-panel LCD screen displays operating conditions and diagnostic data, such as load, voltage and battery levels. An audible alarm signals UPS startup, power failure, low battery, overload, UPS fault and remote shutdown conditions.
EMI/RFI line noise filtering improves your equipment’s performance, and 425-joule surge suppression prevents equipment and data damage from harmful power surges. With free downloadable PowerAlert® software, the SUINT3000XLCD enables safe unattended system shutdown and file saves in case of a prolonged power failure. A built-in card slot supports TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD for network interface and remote monitoring and control.
Protects Mission-Critical Rack-Mounted Equipment
Provides fully regulated sine wave AC output for small/medium servers, networking equipment and telecom systems
+/-2% voltage regulation in online, double-conversion mode
230V output voltage
High 0.9 power factor offers 3000VA/2700W output capacity

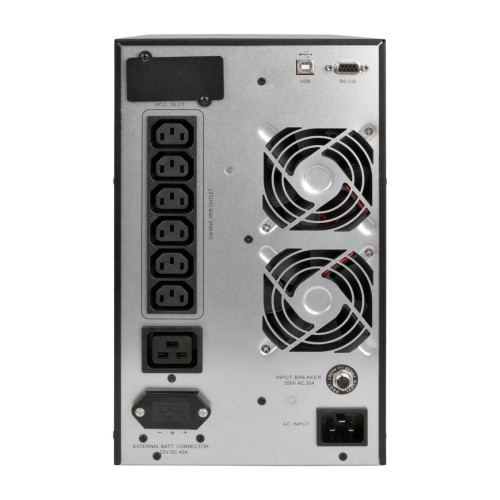

One C19 and 6 C13 outlets; C20 input connection
Set of 3 C13/C14 jumpers included
425-joule surge suppression rating
Reliable Battery Backup with Expandable Runtime
Supports half load for 11.2 min. and full load for 4.4 min.
Zero transfer time suitable for advanced network applications
Expandable runtime with optional external battery packs, such as BP72V15-2U
Restarts automatically after lengthy power outages
SNMP/Web Capability
Built-in slot for SNMP network interface and relay card for remote monitoring and control options
Compatible with TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD
Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
EMI/RFI Line Noise Filtering
Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance
Interactive LCD Screen
Reports detailed status information, including load, voltage and battery levels
Audible Alarm
Indicates startup/shutdown, power failure, low battery, overload and fault conditions
Communications Ports
USB & Serial ports enable data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
Optional Economy Mode
Efficiently minimizes heat output, reduces cooling requirements and consumes less electricity
Featuring one C19 and six C13 outlets, the SUINT3000XLCD has an internal battery that provides 11.2 minutes of support at half load (1350W) and 4.4 minutes at full load (2700W). Adding external battery packs, such as BP72V15-2U (sold separately), provides extended runtime. Operating in optional economy mode reduces heat output and cooling requirements and consumes less electricity.
An interactive front-panel LCD screen displays operating conditions and diagnostic data, such as load, voltage and battery levels. An audible alarm signals UPS startup, power failure, low battery, overload, UPS fault and remote shutdown conditions.
EMI/RFI line noise filtering improves your equipment’s performance, and 425-joule surge suppression prevents equipment and data damage from harmful power surges. With free downloadable PowerAlert® software, the SUINT3000XLCD enables safe unattended system shutdown and file saves in case of a prolonged power failure. A built-in card slot supports TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD for network interface and remote monitoring and control.
Protects Mission-Critical Rack-Mounted Equipment
Provides fully regulated sine wave AC output for small/medium servers, networking equipment and telecom systems
+/-2% voltage regulation in online, double-conversion mode
230V output voltage
High 0.9 power factor offers 3000VA/2700W output capacity
One C19 and 6 C13 outlets; C20 input connection
Set of 3 C13/C14 jumpers included
425-joule surge suppression rating
Reliable Battery Backup with Expandable Runtime
Supports half load for 11.2 min. and full load for 4.4 min.
Zero transfer time suitable for advanced network applications
Expandable runtime with optional external battery packs, such as BP72V15-2U
Restarts automatically after lengthy power outages
SNMP/Web Capability
Built-in slot for SNMP network interface and relay card for remote monitoring and control options
Compatible with TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD
Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
EMI/RFI Line Noise Filtering
Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance
Interactive LCD Screen
Reports detailed status information, including load, voltage and battery levels
Audible Alarm
Indicates startup/shutdown, power failure, low battery, overload and fault conditions
Communications Ports
USB & Serial ports enable data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
Optional Economy Mode
Efficiently minimizes heat output, reduces cooling requirements and consumes less electricity
| Battery | |
| Battery voltage | 72 V |
| Typical backup time at full load | 4.4 min |
| Typical backup time at half load | 11.2 min |
| Design | |
| Certification | EN62040-2:2006; IEC 62040-1:2008+A1:2013; ESD:IEC61000-4-2:LEVEL 4, RS:IEC61000-4-3:LEVEL 3, EFT:IEC61000-4-4:LEVEL 2, SURGE: IEC61000-4-5:LEVEL 2, CS:IEC61000-4-6:LEVEL 3, CONDUCTED MAGNETIC FIELD: IEC61000-4-8:LEVEL 4 |
| Country of origin | China |
| Display type | LED |
| Form factor | Tower |
| Housing material | Steel |
| Product colour | Black |
| Features | |
| Crest factor | 3:1 |
| EMI/RFI noise filtering | Y |
| Input operation voltage (max) | 240 V |
| Input operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 2700 W |
| Output power capacity | 3 kVA |
| Power factor | 0.9 |
| UPS topology | Double-conversion (Online) |
| Logistics data | |
| Master (outer) case gross weight | 30.8 kg |
| Master (outer) case height | 436.9 mm |
| Master (outer) case length | 490.2 mm |
| Master (outer) case width | 299.7 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 1000 m |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Battery type | BP72V15-2U, BP72V18-2US, BP72V28RT-3U |
| Number of phases | 1 |
| Ports & interfaces | |
| Power plug | C20 coupler |
| Serial ports quantity | 1 |
| USB port | Y |
| Power | |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 7 AC outlet(s) |
| Surge energy rating | 425 J |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 360.7 mm |
| Height | 325.1 mm |
| Package depth | 490.2 mm |
| Package height | 436.9 mm |
| Package weight | 30.8 kg |
| Package width | 299.7 mm |
| Weight | 24.9 kg |
| Width | 190.5 mm |
Tripp Lite SUINT3000XLCD SmartOnline 230V 3kVA 2700W On-Line Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9
- Brand: Tripp-Lite
- Product Code: SUINT3000XLCD
- Availability: In Stock
-
$1,620.55
