High density, double-conversion on-line power protection with scalable runtime
Includes : CD with software, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card.
Includes : CD with software, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card.
| Battery | |
| Automatic battery test | Y |
| Battery capacity | 454 VAh |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Cold start | Y |
| Number of batteries supported | 1 |
| Design | |
| Certification | CSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778 |
| Display type | LCD |
| Form factor | Tower |
| LED indicators | Status, Battery replacement |
| Product colour | Black |
| Features | |
| Audible alarm modes | Battery replacement |
| Audible alarm(s) | Y |
| Auto-restart | Y |
| Cable length | 3.05 m |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Y |
| Hot-swap battery | Y |
| Input frequency | 40 - 70 Hz |
| Input operation voltage (max) | 120 V |
| Input operation voltage (min) | 120 V |
| Noise level | 55 dB |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 120 V |
| Output operation voltage (min) | 120 V |
| Output power | 2700 W |
| Output power capacity | 3 kVA |
| Power protection features | Overload |
| Surge protection | Y |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Management features | |
| Web-based management | Y |
| Operational conditions | |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Packaging content | |
| Cables included | USB cable |
| Quick installation guide | Y |
| Software CD | Y |
| Warranty card | Y |
| Packaging data | |
| Bracket | Y |
| Performance | |
| International Protection (IP) code | IP20 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power plug | NEMA 5-30P |
| Serial interface | Y |
| USB port | Y |
| Power | |
| AC outlet types | NEMA 5–20R, NEMA L5-30R |
| AC outlets quantity | 8 AC outlet(s) |
| Surge energy rating | 340 J |
| Sustainability | |
| Sustainability certificates | RoHS, ENERGY STAR |
| Technical details | |
| Serial interface type | RJ-45 |
| Weight & dimensions | |
| Depth | 635 mm |
| Height | 432 mm |
| Package depth | 871 mm |
| Package height | 246 mm |
| Package type | Box |
| Package weight | 36.7 kg |
| Package width | 599 mm |
| Weight | 31.3 kg |
| Width | 85 mm |

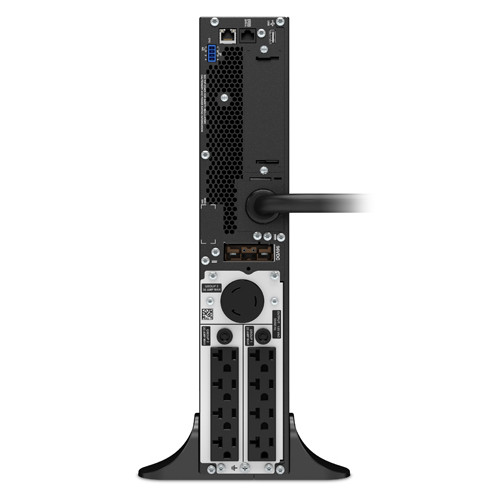

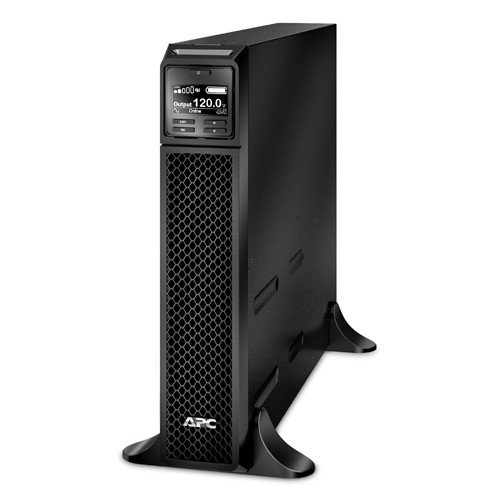

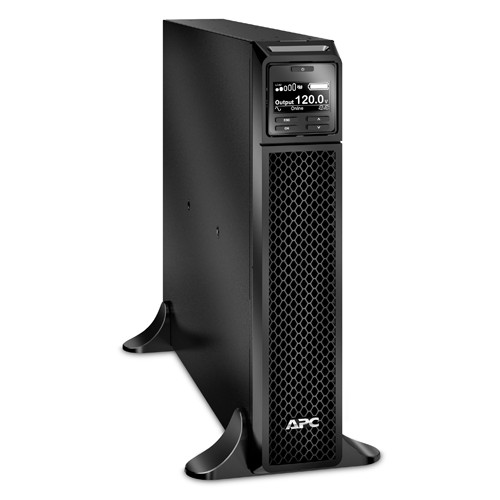

APC SRT3000XLA uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 8 AC outlet(s)
- Brand: APC
- Product Code: SRT3000XLA
- Availability: In Stock
-
$3,536.07
