Tripp Lite's SMART1500 intelligent, line interactive UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures. 1500VA/980 watt power handling capability supports a variety of networking, telecom and various other application types, including the support of multiple network workstations. Includes a total of 6 outlets, 1 of which can be individually powered on and off via software interface to selectively reboot remote equipment or to automatically shed less significant loads to extend battery runtime for more critical equipment. Supports remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level. Wall mountable with optional UPSWM wallmount bracket. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive, small-footprint tower housing uses less than 66 square inches of floor or desktop space.
- 1500VA/980 watt power handling capability supports a variety of networking, telecom and various other application types
- Built-in voltage regulation and battery support, plus complete AC suppression prevents equipment damage, data loss and downtime
- Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures
- Automatic Voltage Regulation (AVR) circuits with two boost and one voltage reduction level maintains usable 120V nominal output over an input voltage range of 75-147V
- Includes a total of 6 NEMA5-15R outlets, 1 of which can be individually powered on and off via software interface to selectively reboot remote equipment or shed less significant loads to extend battery runtime for more critical equipment

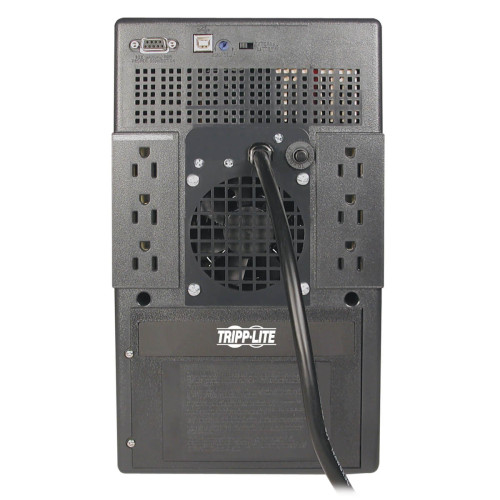

- Includes 1 USB and 1 DB9 monitoring port for remote monitoring of UPS status and site power conditions
- Communications ports enable safe unattended shutdown without data loss during extended power failures
- Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power-restored, AC line voltage, DC battery voltage and battery capacity
- Communications ports support timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
- PowerAlert UPS monitoring and unattended shutdown software with complete cabling included
- Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again
- Notification of system status via 5 LEDs and multi-function audible alarms
- Wall mountable with UPSWM wallmount bracket
- Attractive small footprint beige tower housing uses less than 66 square inches
- Hot-swappable/user replaceable batteries allow on-site battery replacement
- Cold start capability enables UPS turn-on in battery mode during blackout conditions
- 1500VA/980 watt power handling capability supports a variety of networking, telecom and various other application types
- Built-in voltage regulation and battery support, plus complete AC suppression prevents equipment damage, data loss and downtime
- Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures
- Automatic Voltage Regulation (AVR) circuits with two boost and one voltage reduction level maintains usable 120V nominal output over an input voltage range of 75-147V
- Includes a total of 6 NEMA5-15R outlets, 1 of which can be individually powered on and off via software interface to selectively reboot remote equipment or shed less significant loads to extend battery runtime for more critical equipment
- Includes 1 USB and 1 DB9 monitoring port for remote monitoring of UPS status and site power conditions
- Communications ports enable safe unattended shutdown without data loss during extended power failures
- Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power-restored, AC line voltage, DC battery voltage and battery capacity
- Communications ports support timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
- PowerAlert UPS monitoring and unattended shutdown software with complete cabling included
- Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again
- Notification of system status via 5 LEDs and multi-function audible alarms
- Wall mountable with UPSWM wallmount bracket
- Attractive small footprint beige tower housing uses less than 66 square inches
- Hot-swappable/user replaceable batteries allow on-site battery replacement
- Cold start capability enables UPS turn-on in battery mode during blackout conditions
| Battery | |
| Battery recharge time | 4 h |
| Typical backup time at full load | 7 min |
| Typical backup time at half load | 20 min |
| Design | |
| Cooling type | Active |
| Country of origin | Vietnam |
| Form factor | Tower |
| Housing material | Polyvinyl chloride (PVC) |
| LED indicators | Y |
| Product colour | Black |
| Features | |
| Audible alarm(s) | Y |
| Automatic Voltage Regulation (AVR) | Y |
| Cable length | 1.8 m |
| Efficiency | 96% |
| EMI/RFI noise filtering | Y |
| Hot-swap battery | Y |
| Input frequency | 60 Hz |
| Input operation voltage (max) | 147 V |
| Input operation voltage (min) | 75 V |
| Number of input phases | 1 |
| Output operation voltage (min) | 120 V |
| Output power | 980 W |
| Output power capacity | 1.5 kVA |
| Power factor | 0.7 |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Logistics data | |
| Master (outer) case gross weight | 18.4 kg |
| Master (outer) case height | 434.3 mm |
| Master (outer) case length | 330.2 mm |
| Master (outer) case width | 281.9 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| I/O ports | 6 x NEMA 5-15R |
| Non-operating relative humidity (non-condensing) | 0 - 95% |
| Weight (imperial) | 17.4 kg (38.4 lbs) |
| Ports & interfaces | |
| Power plug | NEMA 5-15P |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Power | |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 6 AC outlet(s) |
| Maximum current | 12 A |
| Surge energy rating | 480 J |
| Weight & dimensions | |
| Depth | 235 mm |
| Height | 330.2 mm |
| Package depth | 330.2 mm |
| Package height | 454.7 mm |
| Package weight | 17.5 kg |
| Package width | 281.9 mm |
| Weight | 16.5 kg |
| Width | 190.5 mm |
Tripp Lite SmartPro 120V 1.5kVA 980W Line-Interactive UPS, Tower, USB, DB9 Serial
- Brand: Tripp-Lite
- Product Code: SMART1500
- Availability: In Stock
-
$620.33
