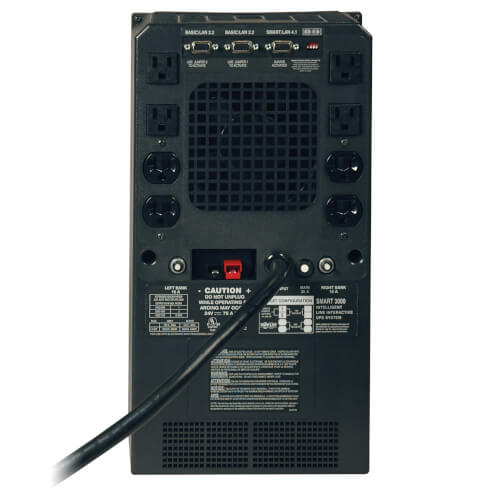

Tripp Lite's SMART 3000NET intelligent, line interactive large tower UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 23 minutes half load runtime and 7 minutes fully loaded. Runtime is expandable with optional BP24V28-2U (limit 1) and BP24V70-3U (multi-pack compatible) external battery packs. 3000VA/2400 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 8 protected outlets. Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built in contact closure ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in audible alarm and front panel LEDs indicate line power, battery power, battery charge level, load level and voltage regulation status. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive large gray tower housing.
| Battery | |
| Battery recharge time | 2 h |
| Typical backup time at full load | 7 min |
| Typical backup time at half load | 23 min |
| Design | |
| Certification | UL1778 (USA), cUL (Canada), FCC Class A, NOM (Mexico) |
| Country of origin | China |
| Product colour | Black |
| Features | |
| Cable length | 2.43 m |
| Output power | 2400 W |
| Output power capacity | 3 kVA |
| UPS topology | Line-Interactive |
| Logistics data | |
| Master (outer) case gross weight | 43.8 kg |
| Master (outer) case height | 419.1 mm |
| Master (outer) case length | 553.7 mm |
| Master (outer) case width | 320 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 229 x 317.5 x 432 mm |
| Output connections | 4 NEMA 5-15R & 4 NEMA 5-15/20R |
| Ports & interfaces | |
| Input connection type | NEMA L5-30P |
| Power | |
| Nominal input voltage | 120 V |
| Nominal output voltage | 120 V |
| Surge energy rating | 480 J |
| Weight & dimensions | |
| Depth | 330.2 mm |
| Height | 431.8 mm |
| Package depth | 553.7 mm |
| Package height | 419.1 mm |
| Package weight | 43.8 kg |
| Package width | 320 mm |
| Weight | 36.3 kg |
| Width | 228.6 mm |
Tripp Lite SMART3000NET uninterruptible power supply (UPS) Line-Interactive 3 kVA 2400 W
- Brand: Tripp-Lite
- Product Code: SMART3000NET
- Availability: In Stock
-
$1,197.82
