When imaging precision cannot be compromised
When imaging precision and 24/7 operational reliability cannot be compromised, the 6th generation of MultiSync® P series presents best-in-class performance with an advanced feature set for mission-critical applications
Unparalleled clarity of detail and colour accuracy is achieved with 8K signal processing, wide colour gamut and the integrated SpectraView® engine controlling all visual parameters. Even in bright ambient light conditions, high brightness levels of 700 cd/m² combined with a high haze filter guarantees exceptional readability with no annoying reflections. Despite its slim, elegant profile, the quality build is robust for use in public spaces, with an all-metal chassis for fire-retardancy. Featuring slot-in technology, choose scalable computing power with Raspberry Pi Compute Module or the more powerful Intel® Smart Display Modules (Intel®SDM) for tailor-made signage solutions.
For best visualisation in control rooms and production lines, for passenger information and wayfinding signage; the Sharp P Series is trusted for safety and long-life, fit-for-purpose performance.
When imaging precision and 24/7 operational reliability cannot be compromised, the 6th generation of MultiSync® P series presents best-in-class performance with an advanced feature set for mission-critical applications
Unparalleled clarity of detail and colour accuracy is achieved with 8K signal processing, wide colour gamut and the integrated SpectraView® engine controlling all visual parameters. Even in bright ambient light conditions, high brightness levels of 700 cd/m² combined with a high haze filter guarantees exceptional readability with no annoying reflections. Despite its slim, elegant profile, the quality build is robust for use in public spaces, with an all-metal chassis for fire-retardancy. Featuring slot-in technology, choose scalable computing power with Raspberry Pi Compute Module or the more powerful Intel® Smart Display Modules (Intel®SDM) for tailor-made signage solutions.
For best visualisation in control rooms and production lines, for passenger information and wayfinding signage; the Sharp P Series is trusted for safety and long-life, fit-for-purpose performance.
Audio | |
Built-in speaker(s) | Yes |
Computer system | |
Computer system | Yes |
Design | |
Orientation | Horizontal/Vertical |
Panel mounting interface | 300 x 300 mm |
Placement supported | Indoor |
Product colour | Black |

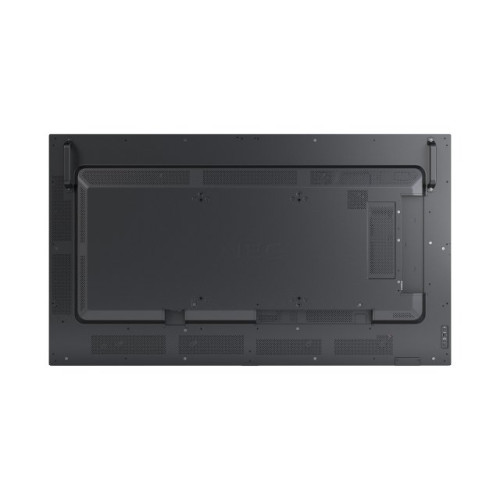

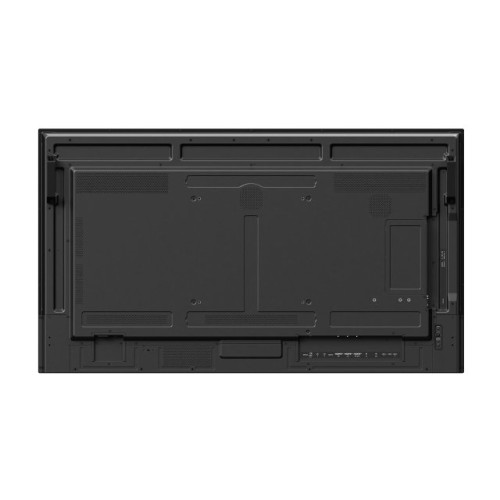

VESA mounting | Yes |
Display | |
Contrast ratio (typical) | 1200:1 |
Display brightness | 700 cd/m² |
Display diagonal | 139.7 cm (55") |
Display diagonal (metric) | 138.8 cm |
Display resolution | 3840 x 2160 pixels |
Display technology | LED |
HD type | 4K Ultra HD |
Horizontal scan range | 15 - 135 kHz |
LED backlight | Yes |
LED backlighting type | Edge-LED |
Native aspect ratio | 16:9 |
Native refresh rate | 60 Hz |
Panel type | IPS |
Pixel pitch | 0.315 x 0.315 mm |
Vertical scan range | 23 - 76 Hz |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Features | |
HDCP | Yes |
Product design | Kiosk design |
Purpose | Retail |
Response time | 8 ms |
Network | |
Ethernet LAN | Yes |
Ethernet LAN data rates | 100 Mbit/s |
Web browser | Yes |
Wi-Fi | No |
Operational conditions | |
Operating relative humidity (H-H) | 20 - 80% |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 10 - 80% |
Storage temperature (T-T) | -20 - 60 °C |
Performance | |
USB connector type | USB Type-A, USB Type-C |

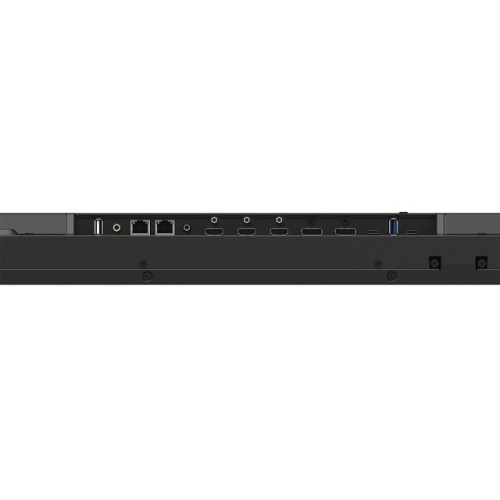

Ports & interfaces | |
DisplayPorts in | 1 |
DisplayPorts out | 1 |
DisplayPorts quantity | 2 |
DVI port | No |
Ethernet LAN (RJ-45) ports | 1 |
HDMI input ports quantity | 2 |
HDMI ports quantity | 3 |
RS-232 interface | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
USB port | Yes |
USB Power Delivery (USB PD) | Yes |
USB Power Delivery up to | 65 W |
USB Type-C DisplayPort Alternate Mode | Yes |
Power | |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 115 W |
Processor | |
Built-in processor | Yes |
Processor manufacturer | Intel |
Sustainability | |
Sustainability certificates | ENERGY STAR |
Technical details | |
Safety warning | CE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA |
Weight & dimensions | |
Bezel width (bottom) | 1.39 cm |
Bezel width (side) | 1.1 cm |
Bezel width (top) | 1.1 cm |
Display depth | 59.5 mm |
Display height | 709.3 mm |
Display weight | 20.5 kg |
Display width | 1235.6 mm |
Package depth | 160 mm |
Package height | 850 mm |
Package weight | 27 kg |
Package width | 1390 mm |

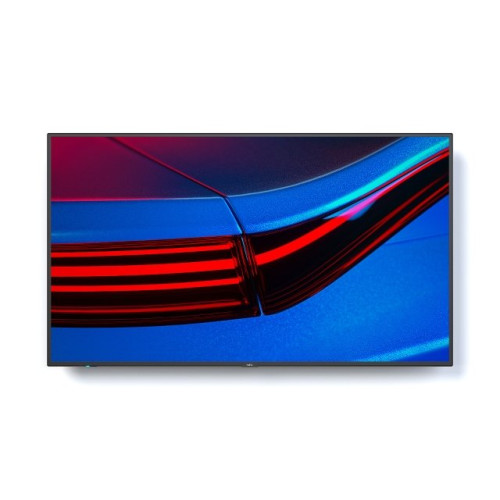

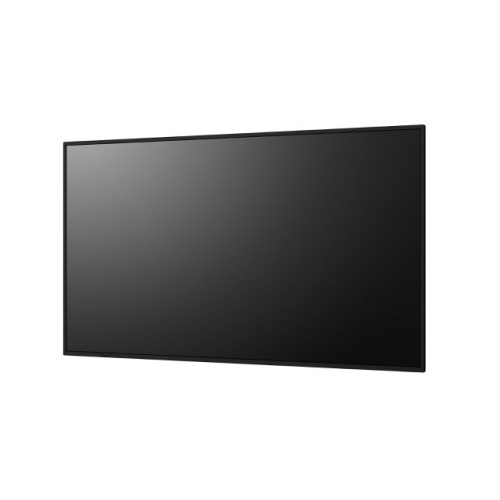

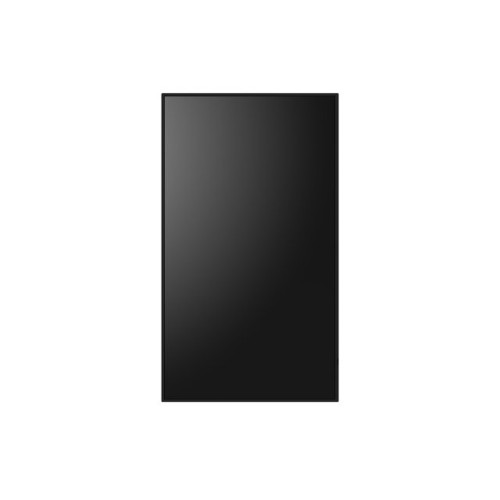

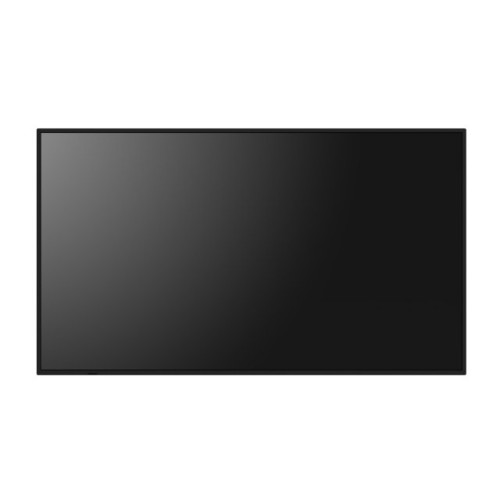

Sharp PN-P556 Kiosk design 139.7 cm (55") LED 700 cd/m² 4K Ultra HD Black Built-in processor
- Brand: Sharp
- Product Code: PN-P556
- Availability: In Stock
