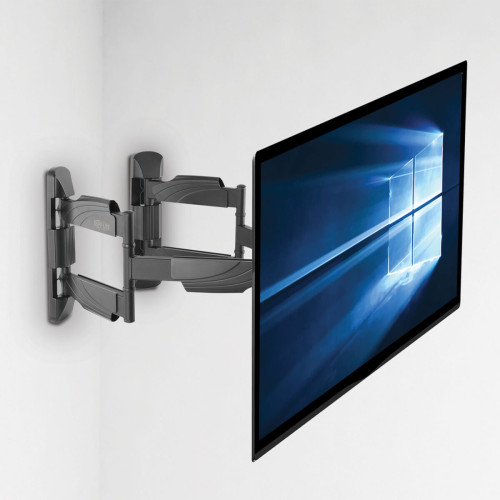

Corner Mount Your Flat-Panel or Curved-Screen TV or Monitor
Split wall plates allow the DMWC3770M to mount on both walls of a corner, providing a wide viewing angle in home theaters, classrooms, boardrooms, hotels, bars and restaurants. It's also a great display solution for rooms with limited wall space due to window placement or furniture arrangements. This true corner mount accommodates most flat-panel or curved-screen televisions or monitors from 37 to 70 inches. Maximum weight supported is 99 lbs (44.9 kgs)

Adjust the Display Angle for Comfortable Viewing

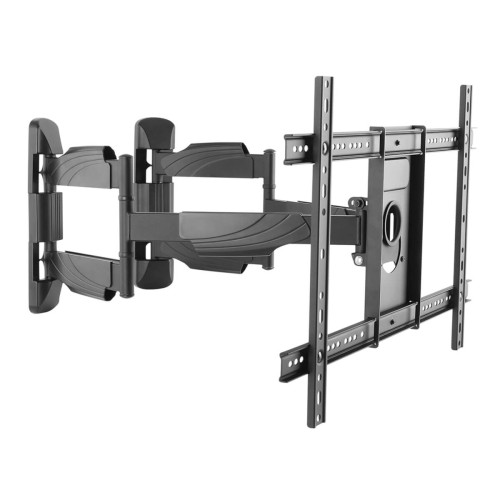

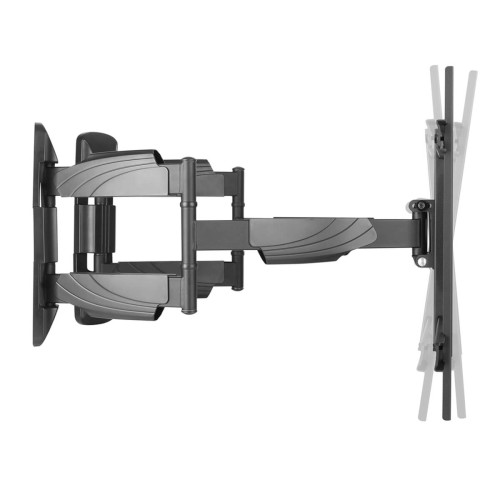

One-touch adjustment capability makes it easy to optimize viewing angles. For maximum screen visibility, the articulating arms can swivel 90° left or right. The -8° to +5° tilt and -5° to +5° screen level adjustment help minimize glare and improve the audience's viewing experience.

Rely on Durable All-Metal Construction with Convenient Cable Access
Made of steel with a black powder-coated finish, this full-motion wall mount withstands the stress of repeated adjustments and use in public areas. An open frame design supports easy access to cables.

VESA Compliance Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards, such as universal mounting hole patterns, for TVs and monitors. For hassle-free display compatibility, this corner wall mount supports the following VESA mounting hole patterns: 100 x 100, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 500 x 200, 500 x 300, 500 x 400, 600 x 300 and 600 x 400. Mounting hardware is included.
Design
Country of origin China
Housing material Steel
Panel mounting interface 200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400
Product colour Black
Ergonomics
Adjustable depth Y
Swivel angle 90°
Features
Cable management N
Maximum screen size 177.8 cm (70")
Maximum weight capacity 45 kg
Graphics
Number of displays supported 1
Logistics data
Harmonized System (HS) code 85299097
Master (outer) case gross weight 16.2 kg
Master (outer) case GTIN (EAN/UPC) 10037332240535
Master (outer) case height 815.3 mm
Master (outer) case length 180.3 mm
Master (outer) case width 330.2 mm
Products per master (outer) case 2 pc(s)
Mounting
Maximum VESA mount 600 x 400 mm
Minimum VESA mount 200 x 200 mm
Mounting type Wall
Suitable for computer monitor Y
Other features
Minimum screen size 94 cm (37")
Packaging content
Manual Y
Packaging data
Mounting kit Y
Sustainability
Sustainability certificates RoHS
Weight & dimensions
Depth 419.1 mm
Depth (min) 41.9 cm
Height 619.8 mm
Package depth 83.8 mm
Package height 792.5 mm
Package weight 7.62 kg
Package width 322.6 mm
Weight 6.3 kg
Width 642.6 mm

Write a review

Please login or register to review

Tripp Lite DMWC3770M Swivel/Tilt Corner Wall Mount for 37" to 70" TVs and Monitors - Flat/Curved

  • Brand: Tripp-Lite
  • Product Code: DMWC3770M
  • Availability: In Stock
  • $147.28
