Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency
Reduces utlility costs, generates less heat.
SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency
Reduces utlility costs, generates less heat.
SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
| Battery | |
| Automatic battery test | Y |
| Battery capacity | 408 VAh |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Cold start | Y |

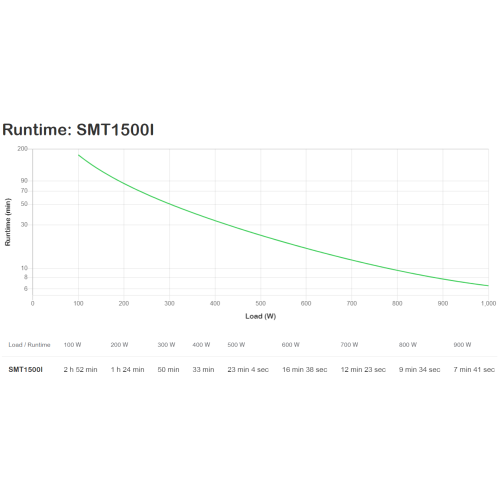

| Typical backup time at full load | 6.5 min |
| Typical backup time at half load | 23.1 min |
| Design | |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| Form factor | Tower |
| LED indicators | Status |
| Product colour | Black |
| Features | |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Audible alarm(s) | Y |
| Cable length | 1.83 m |
| Efficiency | 98.7% |
| Hot-swap battery | N |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Noise level | 45 dB |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 1000 W |
| Output power capacity | 1.5 kVA |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Logistics data | |
| Products per pallet | 12 pc(s) |
| Operational conditions | |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Packaging content | |
| Cables included | RS-232, USB cable |
| Quick installation guide | Y |
| Software CD | Y |
| Ports & interfaces | |

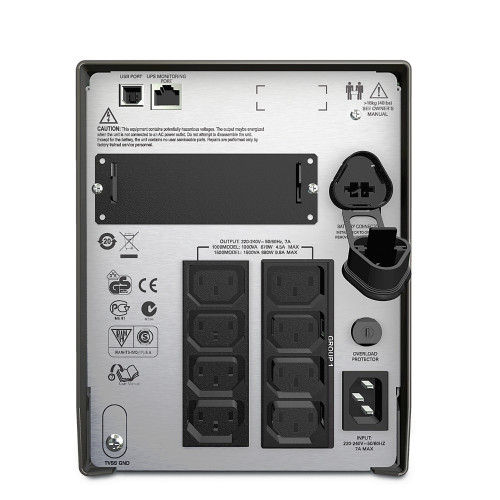

| Number of output IEC jumpers | 2 |
| Power plug | C14 coupler |
| SmartSlot | Y |
| USB port | Y |
| Power | |
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Surge energy rating | 459 J |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, Green Premium, RoHS |
| Weight & dimensions | |
| Depth | 439 mm |
| Height | 219 mm |
| Package depth | 595 mm |
| Package height | 376 mm |
| Package weight | 27.2 kg |
| Package width | 328 mm |
| Weight | 24.1 kg |
| Width | 171 mm |

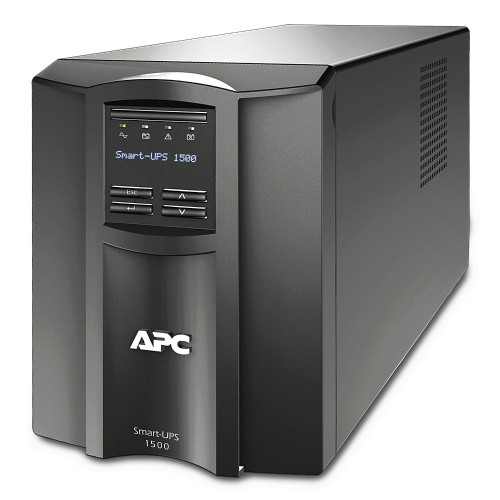

APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1000 W 8 AC outlet(s)
- Brand: APC
- Product Code: SMT1500I
- Availability: In Stock
-
$916.27
