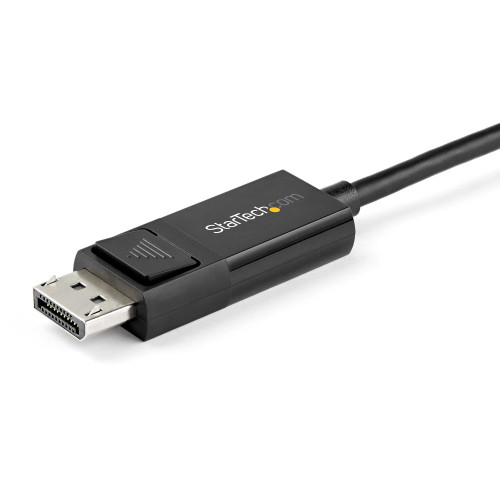

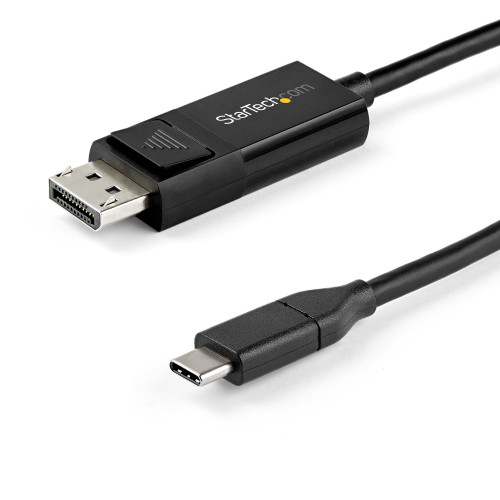

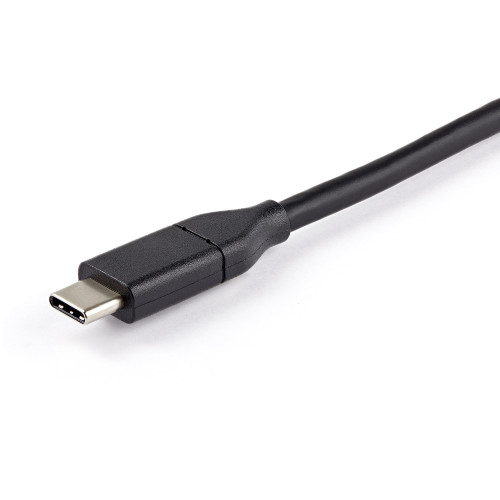

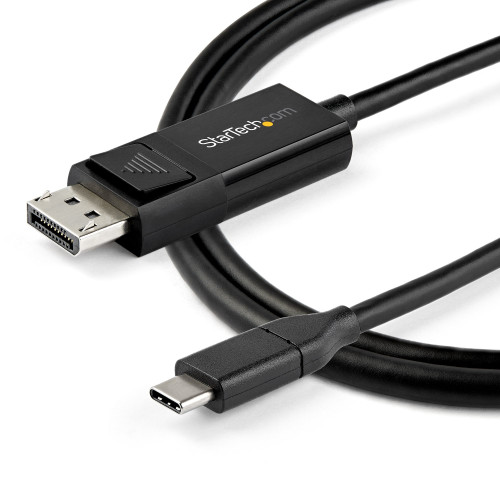

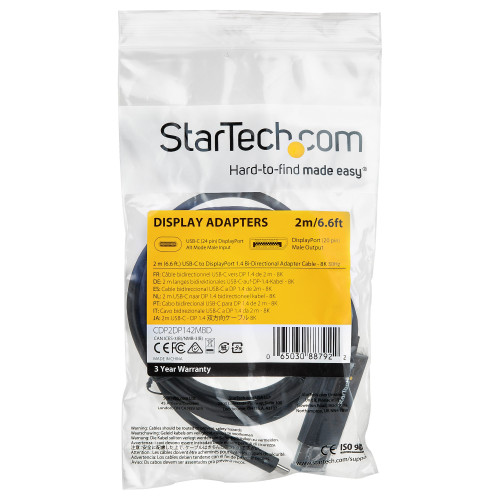

USB Type-C™ Adapter Cable | 8K 60Hz | Thunderbolt 3™ | HBR3This USB-C™ to DisplayPort™ 1.4 cable lets you connect your USB Type-C™ (or Thunderbolt 3™) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.Unparalleled Performance with Support for 8K 60HzSupporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320; and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.The video cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.IT Pro PerformanceThis adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.Easy & Clutter-Free InstallationAt 6.6 ft. (2 m) in length, this bidirectional adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.Convenient, Bi-Directional SupportUse this USB-C to DisplayPort adapter cable to output 8K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input. For added convenience, the cable supports both Mac & Windows operating systems.CDP2DP142MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.Note:• Your USB 3.1 Type-C device must support DP Alt Mode to work with this cable.• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.• This cable is not compatible with the Surface Dock 2.The StarTech.com Advantage
| Design | |
| Product colour | Black |
| Display | |
| Maximum refresh rate | 60 Hz |
| Features | |
| Cable length | 2 m |
| Chipset | Chrontel - CH7213C-BF, Texas Instruments - TUSB544, VIA Labs - VL170 |
| Connector 1 | USB Type-C |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| HDCP | Y |
| HDCP version | 1.4/2.2 |
| Supported audio channels | 7.1 |
| Graphics | |
| Maximum resolution | 7680 x 4320 pixels |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case height | 210 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case width | 320 mm |
| Products per master (outer) case | 80 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| DisplayPort version | 1.4 |
| Sustainability | |
| Sustainability certificates | CE, RoHS |
| Sustainability compliance | Y |
| Weight & dimensions | |
| Package depth | 225 mm |
| Package height | 25 mm |
| Package weight | 85 g |
| Package width | 125 mm |
| Weight | 79 g |
StarTech.com 6ft (2m) USB C to DisplayPort 1.4 Cable 8K 60Hz/4K - Bidirectional DP to USB-C or USB-C to DP Reversible Video Adapter Cable -HBR3/HDR/DSC - USB Type C/TB3 Monitor Cable (CDP2DP142MBD)
- Brand: StarTech.com
- Product Code: CDP2DP142MBD
- Availability: In Stock
-
$32.42
