Extracts Audio from an HDMI Signal and Sends It to a Separate Audio System
Recommended for connecting HDMI source to speakers that don’t have HDMI input
3.5 mm stereo and TOSLINK optical outputs connect to analog or digital non-HDMI audio equipment
LED indicates the unit is receiving power or transmitting an audio/video signal
Built-in 6 in. HDMI cable connects to audio/video source
Included 3 ft. USB Micro-B cable provides power to the unit
Versatile Audio Options
Supports 2-channel stereo and multi-channel audio up to 5.1 surround sound
Supports uncompressed, such as LPCM, and compressed audio, including DTS and Dolby Digital
Vibrant UHD Video
Transmits UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
Supports 24-bit True Color (8 bits per channel) at 4K x 2K
Supports 36-bit Deep Color (12 bits per channel) at 1080p
Supports optional 3D formats up to 300 MHz
Complies with HDCP 1.4 standards
Recommended for connecting HDMI source to speakers that don’t have HDMI input
3.5 mm stereo and TOSLINK optical outputs connect to analog or digital non-HDMI audio equipment
LED indicates the unit is receiving power or transmitting an audio/video signal
Built-in 6 in. HDMI cable connects to audio/video source
Included 3 ft. USB Micro-B cable provides power to the unit
Versatile Audio Options
Supports 2-channel stereo and multi-channel audio up to 5.1 surround sound
Supports uncompressed, such as LPCM, and compressed audio, including DTS and Dolby Digital
Vibrant UHD Video
Transmits UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
Supports 24-bit True Color (8 bits per channel) at 4K x 2K
Supports 36-bit Deep Color (12 bits per channel) at 1080p
Supports optional 3D formats up to 300 MHz
Complies with HDCP 1.4 standards
| Design | |
| Country of origin | China |
| Product colour | Black |
| Features | |
| Audio connector | Y |
| Audio connector type | 3.5 mm (1/8") |
| Bandwidth | 300 MHz |
| Cable length | 0.15 m |
| Colour depth | 36 bit |
| Connector 1 | HDMI |
| Connector 1 gender | Male |
| Connector 2 | RCA + TOSLINK |
| Connector 2 gender | Male/Female |
| HDCP | Y |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 1080p |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Logistics data | |
| Master (outer) case gross weight | 880 g |
| Master (outer) case GTIN (EAN/UPC) | 10037332200928 |
| Master (outer) case height | 119.9 mm |
| Master (outer) case length | 160 mm |
| Master (outer) case width | 249.9 mm |
| Products per master (outer) case | 10 pc(s) |
| Power | |
| Power source | USB |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Package depth | 100.1 mm |
| Package height | 23.1 mm |
| Package weight | 60 g |
| Package width | 140 mm |

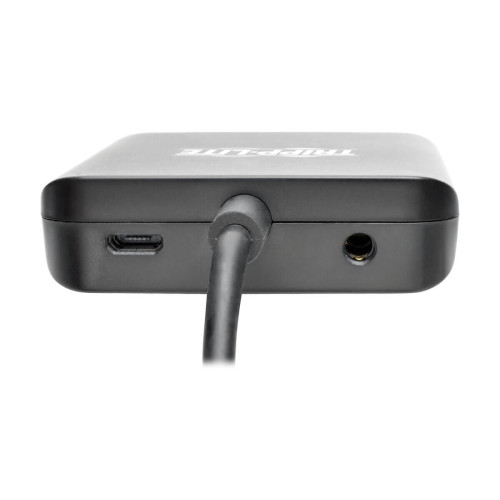

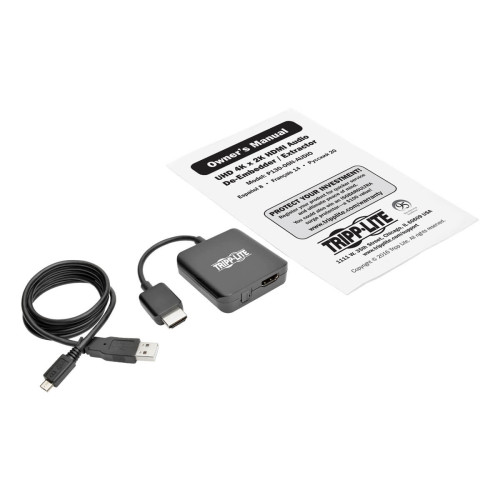

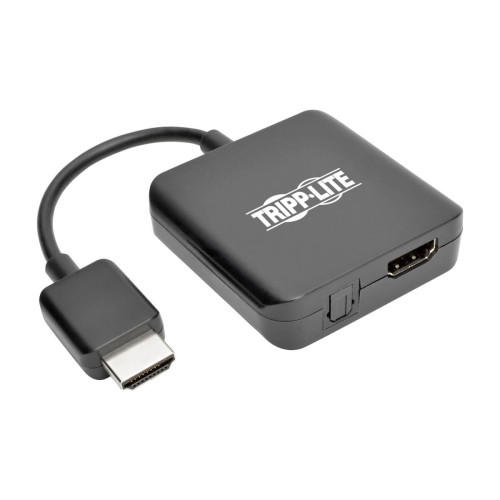

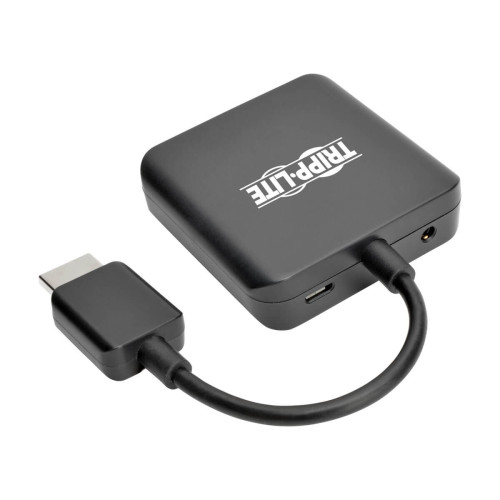

Tripp Lite P130-06N-AUDIO 4K HDMI Audio De-Embedder/Extractor with TOSLINK and 3.5 mm Stereo Output, 5.1 Channel, HDCP, 4K 30Hz, 6-in. (15.24 cm)
- Brand: Tripp-Lite
- Product Code: P130-06N-AUDIO
- Availability: In Stock
-
$42.40
