Connect a DVI monitor to a single-mode DisplayPort output from your computerThe DP2DVIS DisplayPort to DVI Active Single Link adapter lets you connect your DisplayPort video source (desktop PC, laptop, etc.) to a DVI-D monitor, projector or display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort-capable monitor.Unlike passive adapters, this DP to DVI converter offers an active conversion for use with any DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity). Supporting resolutions up to 1920x1200, this compact device provides a simple solution for converting DisplayPort output for compatibility with existing DVI monitors, televisions or projectors.Backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage
| Design | |
| Product colour | Black |
| Features | |
| Cable length | 0.2 m |
| Chipset | Parade PS 161 |
| Connector 1 | DisplayPort |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | DVI-D |
| Connector 2 form factor | Straight |
| Connector 2 gender | Female |
| Converter type | Active video converter |
| Dual Link DVI | N |
| HDCP | Y |
| HDCP version | 1.3 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case height | 226 mm |
| Master (outer) case length | 496 mm |
| Master (outer) case width | 337 mm |
| Products per master (outer) case | 90 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 80 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 80 - 90% |
| Storage temperature (T-T) | 0 - 70 °C |
| Ports & interfaces | |
| DisplayPort version | 1.2 |
| Weight & dimensions | |
| Depth | 200 mm |
| Height | 20 mm |
| Package depth | 220 mm |
| Package height | 20 mm |
| Package weight | 57 g |
| Package width | 200 mm |
| Weight | 48 g |
| Width | 44 mm |

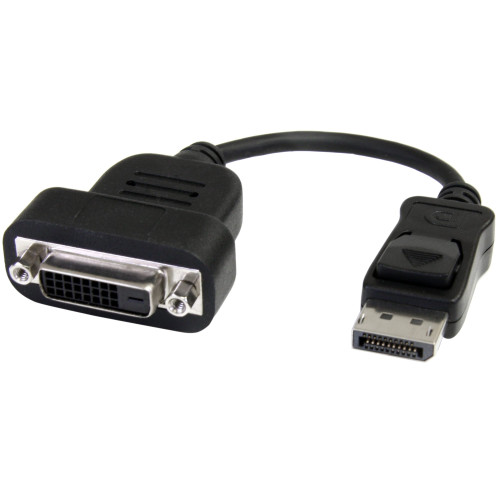

StarTech.com DisplayPort to DVI Adapter - Active DisplayPort to DVI-D Adapter/Video Converter 1080p - DP 1.2 to DVI Monitor Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector
- Brand: StarTech.com
- Product Code: DP2DVIS
- Availability: In Stock
-
$33.07
