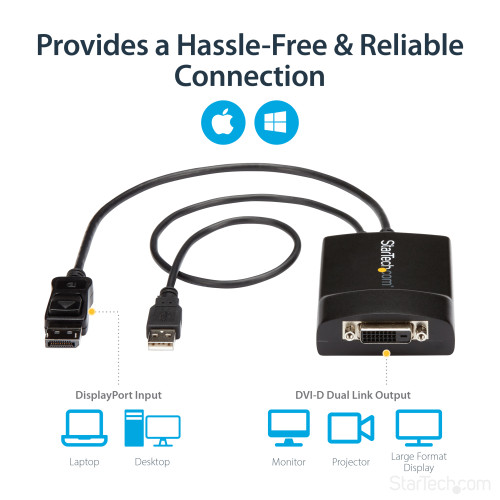

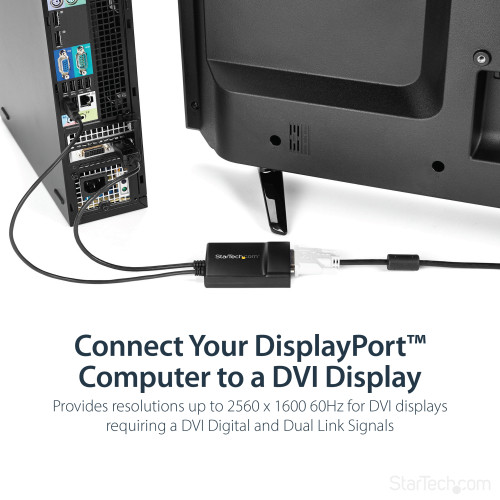

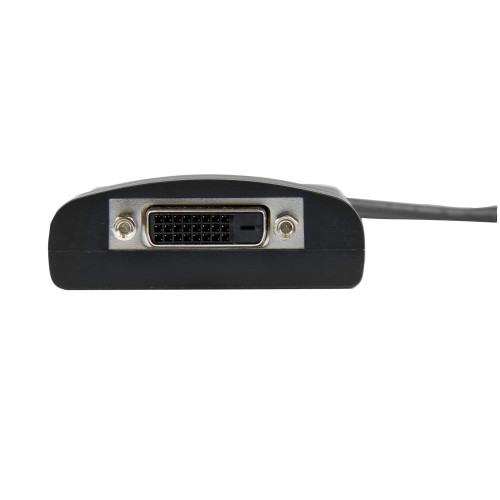

Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applicationsThe DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.Back by StarTech.com 3-year warranty, with free lifetime technical support.The StarTech.com Advantage
Design
Certification RoHS
Product colour Black
Display
Maximum refresh rate 120 Hz
Features
Cable length 0.37 m

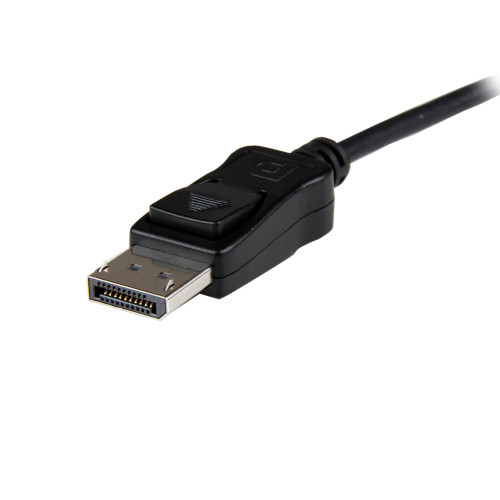

Connector 1 DisplayPort
Connector 1 form factor Straight
Connector 1 gender Male
Connector 2 DVI-D
Connector 2 form factor Straight
Connector 2 gender Female
Converter type Active video converter
Dual Link DVI Y
HBR2 support Y
HDCP Y
Supported graphics resolutions 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Graphics
Maximum resolution 2560 x 1600 pixels
Logistics data
Harmonized System (HS) code 84733080
Master (outer) case height 220 mm
Master (outer) case length 497 mm
Master (outer) case width 337 mm
Products per master (outer) case 28 pc(s)
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -20 - 70 °C
Ports & interfaces
DisplayPort version 1.2
Power

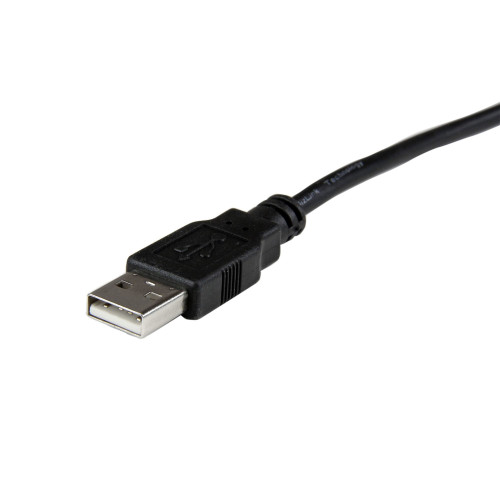

Power source USB
Sustainability
Sustainability certificates CE, RoHS
Weight & dimensions
Depth 549 mm
Height 22 mm
Package depth 143 mm
Package height 35 mm
Package weight 232 g
Package width 174 mm
Weight 160 g
Width 64 mm

Write a review

Please login or register to review

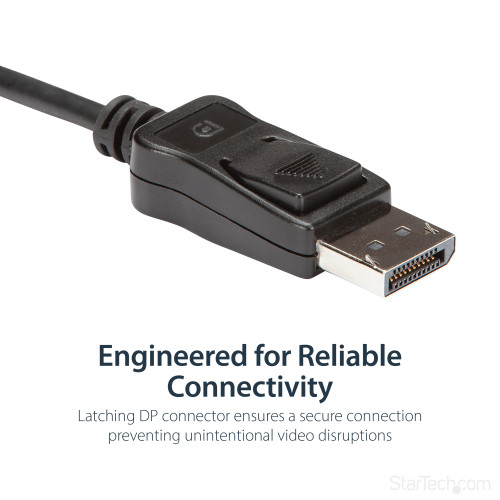

StarTech.com DisplayPort to DVI Dual Link Active Adapter - DisplayPort to DVI-D Adapter Video Converter 2560x1600 60Hz - DP 1.2 to DVI Monitor - USB Powered - Latching DP Connector

  • Brand: StarTech.com
  • Product Code: DP2DVID2
  • Availability: In Stock
  • $69.09
