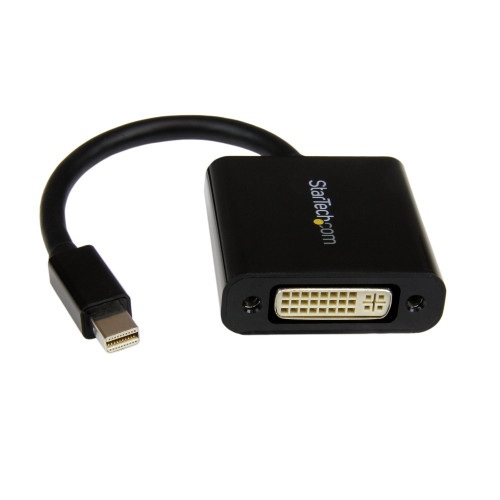

Connect a DVI Display to a Mini DisplayPort Video SourceThe MDP2DVI3 Mini DisplayPort® to DVI Adapter lets you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor, projector, or display, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports display or projector resolutions up to 1920x1200 (WUXGA) and is compliant with HDCP standards.MDP2DVI3 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI® signals can also be passed through the port.Backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage
| Design | |
| Product colour | Black |
| Features | |
| Cable length | 0.13 m |

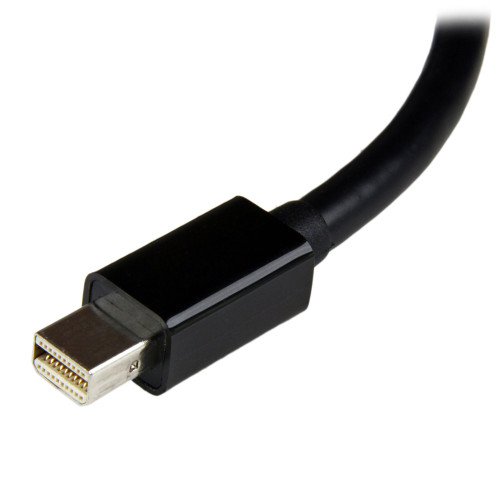

| Connector 1 | Mini DisplayPort |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |

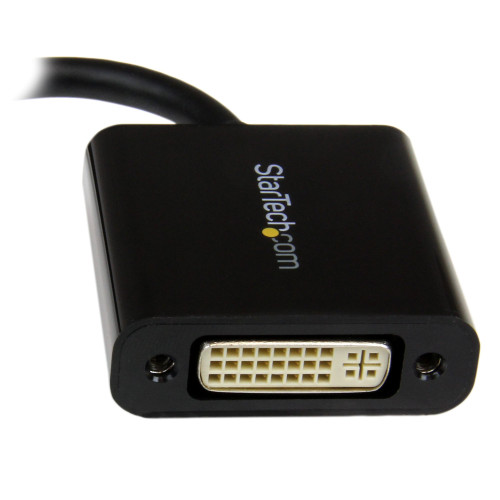

| Connector 2 | DVI-I |
| Connector 2 form factor | Straight |
| Connector 2 gender | Female |
| Converter type | Passive video converter |
| Supported video modes | 1080p |
| Graphics | |
| Maximum resolution | 1920 x 1200 pixels |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case height | 355 mm |
| Master (outer) case length | 455 mm |
| Master (outer) case width | 270 mm |
| Products per master (outer) case | 200 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 40 - 85% |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| DisplayPort version | 1.2 |
| Sustainability | |
| Sustainability certificates | RoHS, CE |
| Weight & dimensions | |
| Depth | 185 mm |
| Height | 15 mm |
| Package depth | 240 mm |
| Package height | 20 mm |
| Package weight | 51 g |
| Package width | 160 mm |
| Weight | 26.5 g |
| Width | 40 mm |
StarTech.com Mini DisplayPort to DVI Adapter - Mini DP to DVI-D Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor - Compact mDP 1.2 to DVI Single-Link Adapter Dongle
- Brand: StarTech.com
- Product Code: MDP2DVI3
- Availability: In Stock
-
$14.05
