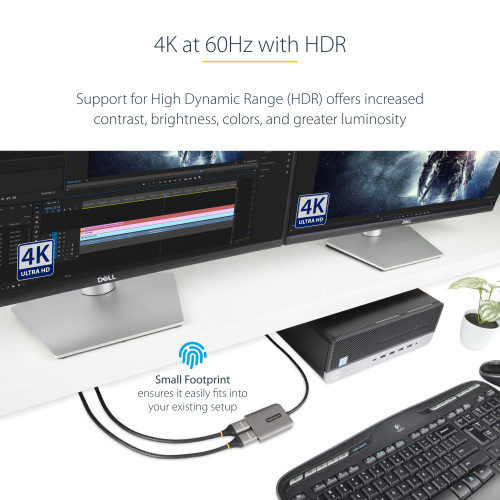

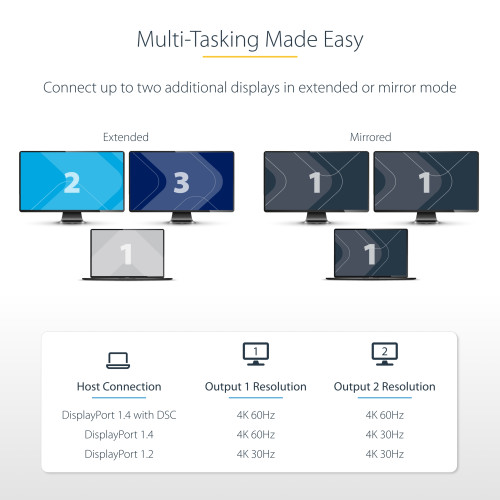

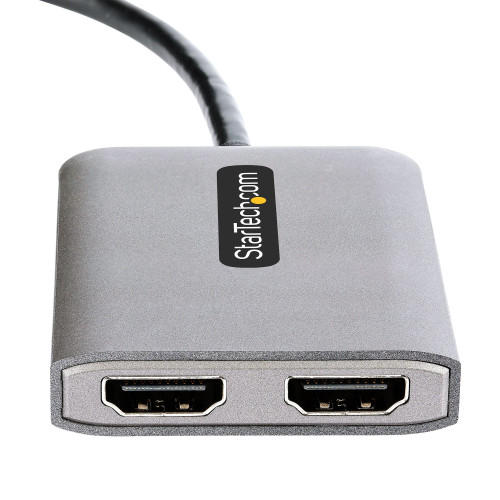

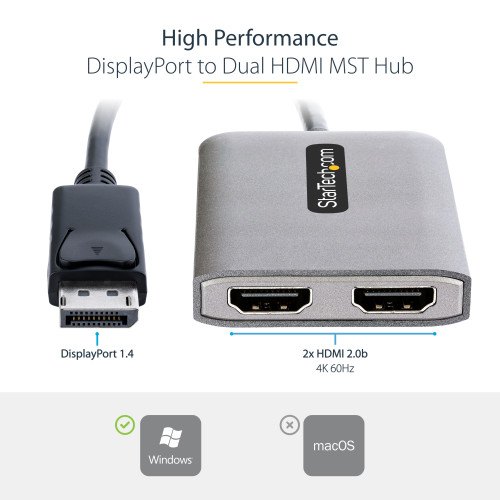

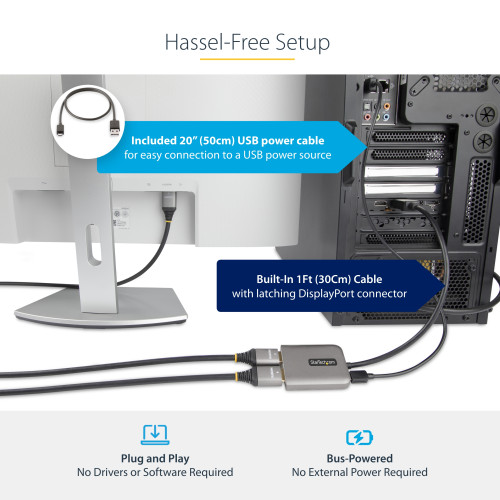

2 x 4K 60Hz | Multi-Monitor Video Splitter | Windows® | DSC | HDRThis DisplayPort to HDMI MST Hub drives two 4K 60Hz HDMI monitors from a DisplayPort enabled Windows device.Multi-tasking Made EasyThis DisplayPort to HDMI video splitter allows you to connect up to two additional displays in extended or mirror mode. Connecting two independent 4K 60Hz displays creates high-performance workstations for users in your organization, enabling easier multi-tasking, resulting in increased productivity.Host ConnectionOutput 1 ResolutionOutput 2 ResolutionDisplayPort 1.4 with DSC4K 60Hz4K 60HzDisplayPort 1.44K 60Hz4K 30HzDisplayPort 1.24K 30Hz4K 30Hz4K at 60Hz and HDRNative support for MST, on any Windows device, enables an easy set up. This MST Hub separates the single stream into two independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.Hassle-Free SetupMST offers an easy setup, by natively working on any Windows device. Plug-and-play installation with no drivers or software required. A 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is USB powered (USB Cable included).MST14DP122HD is backed by a StarTech.com 3-year warranty, and a lifetime of free, North American based, multilingual technical support.The StarTech.com Advantage
Design
Product colour Black, Grey
Display
High Dynamic Range (HDR) supported Y
Maximum refresh rate 60 Hz
Features
Bandwidth 32400 MB/s
Cable length 0.3 m

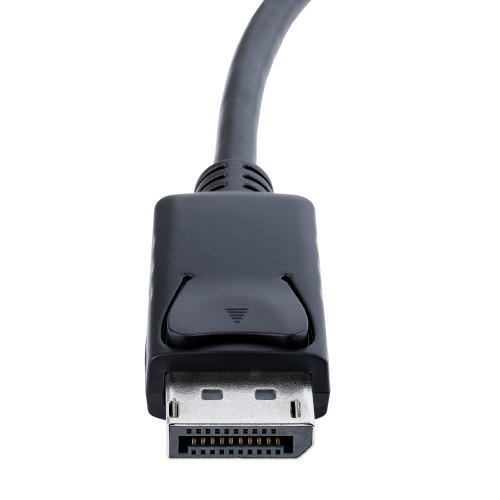

Connector 1 DisplayPort
Connector 1 form factor Straight
Connector 1 gender Male
Connector 2 2 x HDMI
Connector 2 form factor Straight
Connector 2 gender Female
Latching connectors Y
Plug and Play Y
Supported audio channels 7.1
Graphics
Maximum resolution 3840 x 2160 pixels
Logistics data
Harmonized System (HS) code 84733080
Master (outer) case height 440 mm
Master (outer) case length 331 mm
Master (outer) case width 473 mm
Products per master (outer) case 70 pc(s)
Performance
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Ports & interfaces
DisplayPort version 1.4
HDMI version 2.0
Power

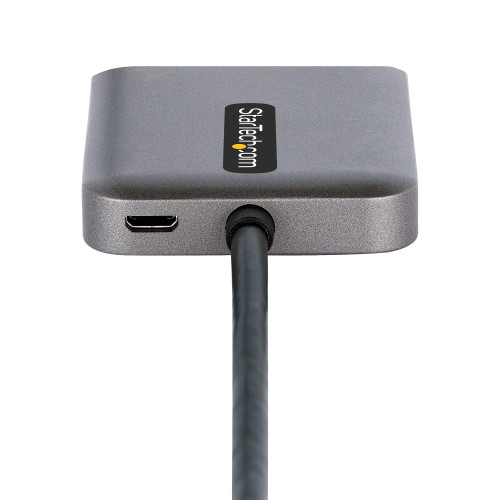

Power source USB

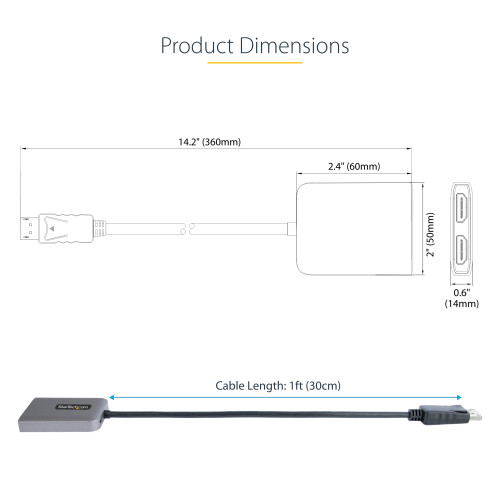

Weight & dimensions
Depth 43 mm
Height 14 mm
Package depth 170 mm
Package height 30 mm
Package weight 110 g
Package width 142 mm
Weight 53 g
Width 105 mm

Write a review

Please login or register to review

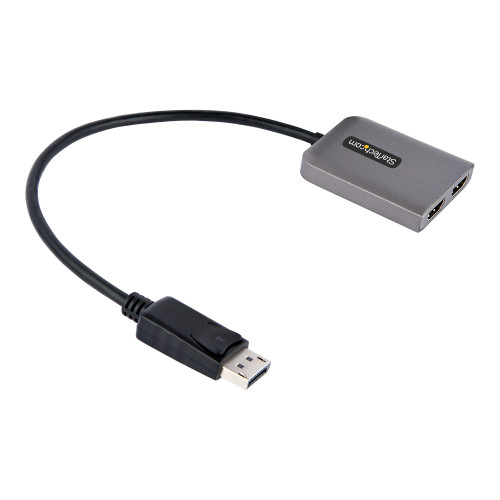

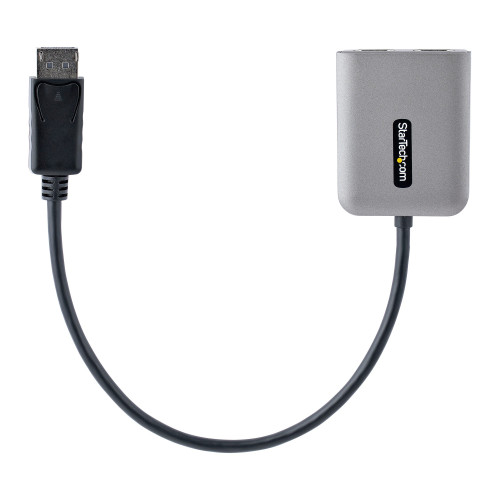

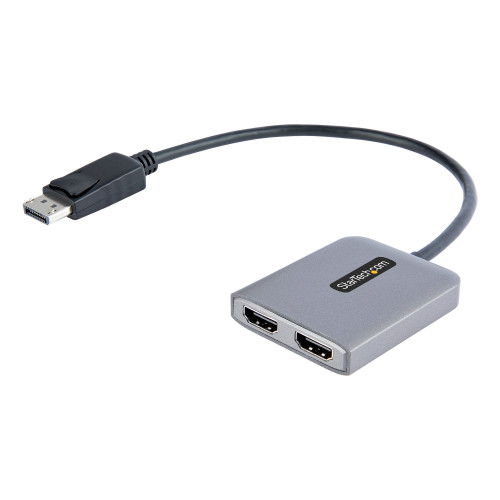

StarTech.com DP to Dual HDMI MST HUB - Dual HDMI 4K 60Hz - DisplayPort Multi Monitor Adapter with 1ft / 30cm cable - DP 1.4 Multi Stream Transport Hub, DSC | HBR3 - DP to HDMI Splitter

  • Brand: StarTech.com
  • Product Code: MST14DP122HD
  • Availability: In Stock
  • $49.95
