Send High-Quality DisplayPort v1.2 Video Signals to a VGA Display
Connects DisplayPort computer to VGA-enabled monitor, projector or TV
Ideal for displaying video on large monitor or digital sign
Low-profile VGA connector fits neatly into available space; no jamming between wall and monitor or impeding neighboring connections
HD15 and latching DisplayPort male connectors
No separate adapter required
Vibrant, Superior Video Quality
Supports computer video resolutions up to 1920 x 1200
Supports HD video resolutions up to 1920 x 1080 (1080p)
Converts Single-Mode and Dual-Mode (DP++) DisplayPort output
Perfect for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals
Superior Materials for Superior Performance
Double shielding with foil and braid for maximum EMI/RFI protection
Nickel-plated connectors with gold-plated contacts for excellent conductivity
Latching DisplayPort plug for secure connection
Integral strain relief for long life
Connects DisplayPort computer to VGA-enabled monitor, projector or TV
Ideal for displaying video on large monitor or digital sign
Low-profile VGA connector fits neatly into available space; no jamming between wall and monitor or impeding neighboring connections
HD15 and latching DisplayPort male connectors
No separate adapter required
Vibrant, Superior Video Quality
Supports computer video resolutions up to 1920 x 1200
Supports HD video resolutions up to 1920 x 1080 (1080p)
Converts Single-Mode and Dual-Mode (DP++) DisplayPort output
Perfect for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals
Superior Materials for Superior Performance
Double shielding with foil and braid for maximum EMI/RFI protection
Nickel-plated connectors with gold-plated contacts for excellent conductivity
Latching DisplayPort plug for secure connection
Integral strain relief for long life
| Design | |
| Country of origin | Taiwan |
| Product colour | Black |
| Features | |
| Cable length | 1.8 m |
| Connector 1 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 | VGA |
| Connector 2 gender | Male |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case gross weight | 1.2 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332191936 |
| Master (outer) case height | 457.2 mm |
| Master (outer) case length | 25.4 mm |
| Master (outer) case width | 406.4 mm |
| Products per master (outer) case | 10 pc(s) |
| Weight & dimensions | |
| Package depth | 12.7 mm |
| Package height | 228.6 mm |
| Package weight | 120 g |
| Package width | 177.8 mm |

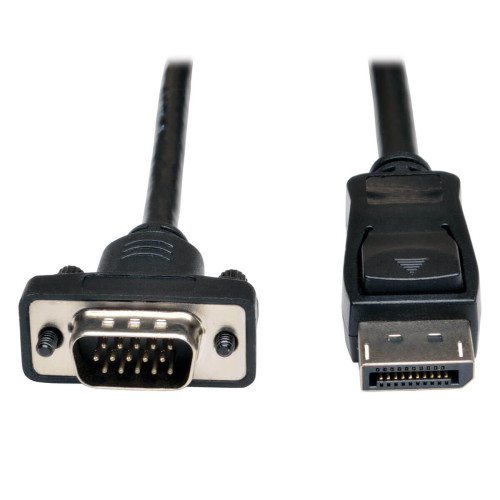

Tripp Lite P581-006-VGA-V2 DisplayPort 1.2 to VGA Active Adapter Cable (DP with Latches to HD15 M/M), 6 ft. (1.8 m)
- Brand: Tripp-Lite
- Product Code: P581-006-VGA-V2
- Availability: In Stock
-
$29.22
