Connects a DVI Display to Your USB-C or Thunderbolt 3 Device

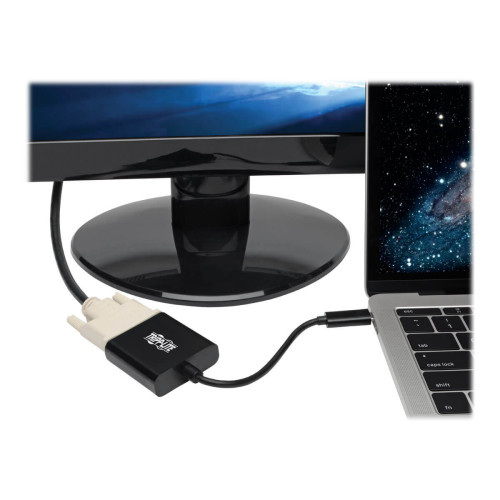

This USB to DVI adapter helps you transmit video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to a DVI-enabled television, monitor or projector. It’s ideal for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen or streaming video for digital signage in crystal-clear 1080p.

Supports USB DisplayPort Alternate Mode for Transmitting Video Signals
With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.

Transmits Crystal-Clear 1080p Video to a DVI Display

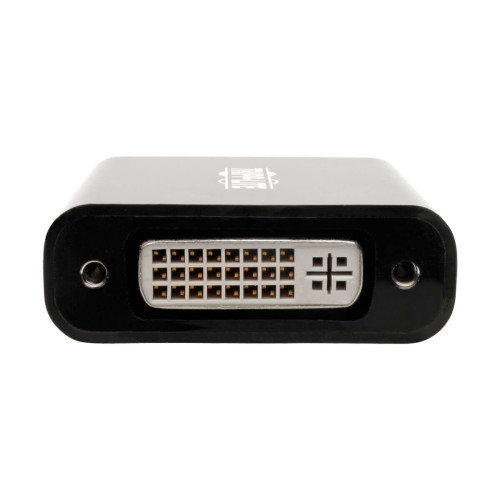

To send high-definition video to a DVI television, projector or monitor, connect the DVI port to the display using a DVI cable (sold separately). The DVI port supports HD video resolutions up to 1920 x 1080 (1080p) at 60 Hz, 36-bit Deep Color (12 bits per channel) and DVI digital transfer rates up to 6.75 Gbps (2.25 Gbps per channel). The U444-06N-DVIBAM is also compatible with non-1080p DVI displays.

Built-In USB-C Cable Connects in Either Direction

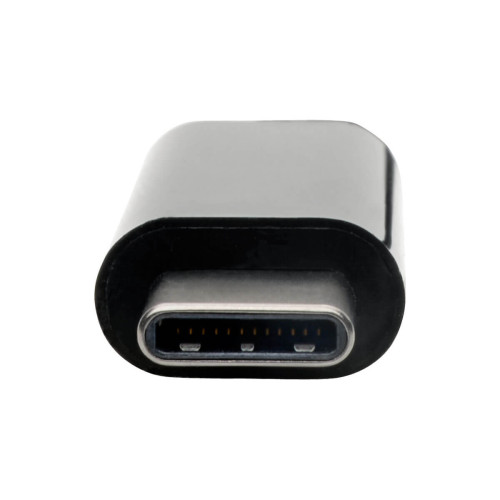

Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.

Ready to Use Right Out of the Package
The plug-and-play Thunderbolt 3 and USB-C to DVI adapter requires no software, drivers or external power. It’s about half the size of a credit card, making it easy to carry in a pocket, briefcase or laptop bag for connecting on the go.

3-Year Warranty and Environmentally Responsible Design
The U444-06N-DVIBAM comes with a 3-year warranty. It’s manufactured in compliance with strict RoHS specifications.
Design
Certification CE, FCC, REACH
Country of origin China
Product colour Black
Features
Cable colour Black/Yellow
Cable length 0.15 m
Connector 1 USB Type-C
Connector 1 form factor Straight
Connector 1 gender Male
Connector 2 DVI-D
Connector 2 gender Female
Connector contacts plating Nickel
Plug and Play Y
Supported graphics resolutions 1920 x 1080 (HD 1080)
Supported video modes 1080p
Graphics
Maximum resolution 1920 x 1080 pixels
Logistics data
Master (outer) case gross weight 640 g
Master (outer) case GTIN (EAN/UPC) 10037332210705
Master (outer) case height 127 mm
Master (outer) case length 246.4 mm
Master (outer) case width 116.8 mm
Products per master (outer) case 10 pc(s)
Operational conditions
Operating relative humidity (H-H) 10 - 85%
Operating temperature (T-T) 0 - 45 °C
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -10 - 70 °C
Power
Power source USB
Sustainability
Sustainability certificates RoHS
Technical details
Connector type USB C
Weight & dimensions
Depth 43.2 mm
Height 14.5 mm
Package depth 121.9 mm
Package height 20.3 mm
Package weight 90 g
Package width 96.5 mm
Weight 22.68 g
Width 45.7 mm

Write a review

Please login or register to review

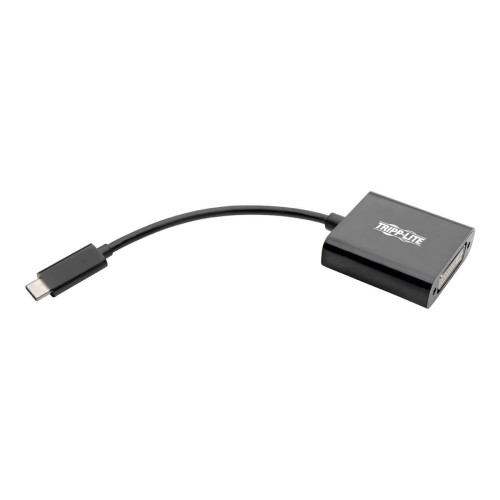

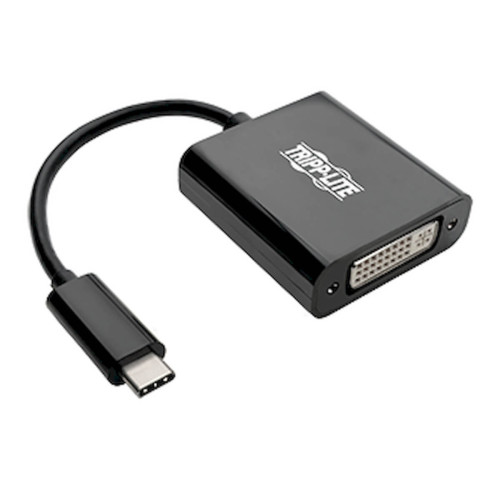

Tripp Lite U444-06N-DVIBAM USB-C to DVI Adapter with Alternate Mode - DP 1.2, Black

  • Brand: Tripp-Lite
  • Product Code: U444-06N-DVIBAM
  • Availability: In Stock
  • $13.93
